Product Details:
Payment & Shipping Terms:
|
| Diameter Of The Roller: | Φ70mm | Material Thickness: | 0.8-2.0mm |
|---|---|---|---|
| Forming Speed:: | 8-10m/min | Forming Stations:: | About 17 Main Rollers |
| Main Power: | 15KW | Hydraulic Power: | 5.5KW |
| High Light: | steel frame machine,steel stud roll forming machine |
||

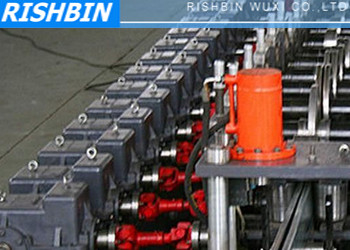

15KW 50Hz 3 Phases Steel Frame Roll Forming Machine with 20 - 25 Steps for Door
Specifications
|
No. |
main parameter of roll forming machine |
|
|
1 |
Thickness |
0.8-2.0mm |
|
2 |
Width |
≤550mm |
|
3 |
Dimensions |
7.2*1.15*1.51m |
|
4 |
Forming steps |
20-25 steps |
|
5 |
Power |
15KW |
|
6 |
Productivity |
8-10m/min |
|
7 |
Diameter of the roller |
Φ70mm |
|
8 |
Weight |
About 3.8T |
|
9 |
Material of the cutting plate |
Cr12 |
|
10 |
Processing precision |
Within 1.00mm |
|
11 |
control system |
PLC |
|
12 |
cutting |
Hydraulic automatic |
|
13 |
Voltage |
380V 50Hz 3phases |
|
14 |
Suitable to process |
Color steel plate |
Description
This equipment is a specialized machine set for the stainless steel cold roll forming machine. It is designed and produced according to the requirements of our customers. It is belong to non-standard product.
The first step is to put raw material on a cart, the cart will lift roll material up to the rack automatically. Hydraulic spading feeds the material into straightener, and enter into main machine. Die of main machine will progressively form to reach desired dimensions. Straightening device will help to eliminate internal stress to ensure flatness of products. Cutter will cut a intented length. Finally, the finished products will be moved away from the receiving platform.
Applications
The equipment can be used for producing a rich assortment of doors and windows to cater for the trade’s requirements of wide varieties of sections and one series containing over ten specifications.
The main range of products include hollow door and window sections, rolling fire door sections, burglarproof double door sections, single door frame sections, colored door and window section as well as modern stainless steel door and window section. In addition to these, different section parameters among enterprises cause over hundred kinds of sections for our plant to deal with in the design of forming machines.
Contact Person: Mr. Song
Tel: 86-137367899
Fax: 86-755-7287468
