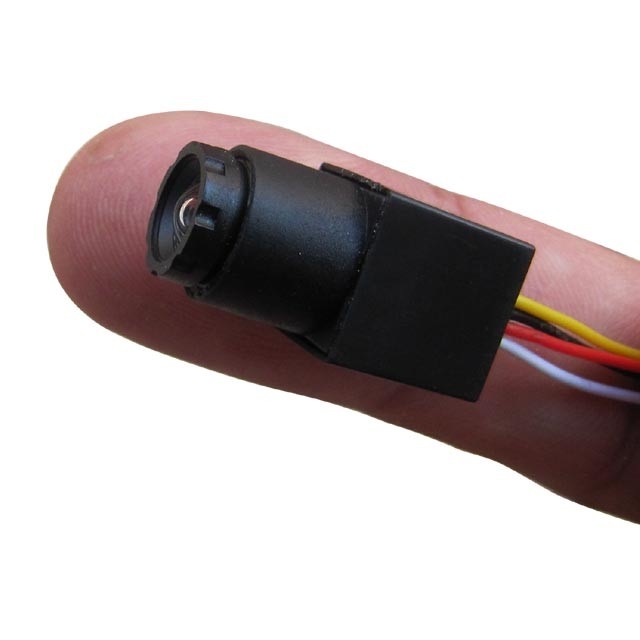

4g Lightweight Miniature CCTV Cameras With Audio 0.008Lux 90 Degree

Large Image : 4g Lightweight Miniature CCTV Cameras With Audio 0.008Lux 90 Degree

Product Details:

Place of Origin:	China
Brand Name:	kimpok
Certification:	CE/FCC/ROHS
Model Number:	KP-MC900DA-V9

Payment & Shipping Terms:

Minimum Order Quantity:	1piece
Price:	Negotiation
Packaging Details:	Export standard packing
Delivery Time:	3 working days after received your payment
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	3,000 pieces per month

Contact Now

Detailed Product Description

Sensor:	Single Chip 1/3 CMOS	Size:	10.5x11.5x22.5mm
Horizontal Resolution:	520TVL	Minimum Lllumination:	0.008Lux/F1.2
Lens:	0.5mm F2.0 /90 °	Input Power:	DC5V/12V
System:	PAL/NTSC	Weight:	4g
Highlight:	Micro FPV Camera

4g Lightweight 520TVL FPV Camera 90 Degree With Audio Micro Camera 0.008Lux

Features & functions:

It’s an ultra small high definition CCTV camera with excellent night vision.
Size is 10.5X11.5X22.5mm only, Weight is 4g! Very easy to install and conceal.
Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.
Full TV system. Applicable worldwide.
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.

Specification:

PICK UP ELEMENT	Single chip 1/3 CMOS
SYSTEM	NTSC	PAL
NUMBER OF PIXEL	NTSC:656(H)×492(V)	PAL:786(H)×576(V)
IMAGE SIGNAL PROCESS	Digital Signal Processing System
SENSOR DIMENSION	4.75mm(H)×3.55mm(V)
HORIZONTAL RESOLUTION	Approximately 520TV Lines
SCANNING SYSTEM	2:1 Interlace
SENSITIVITY	0.008Lux/F1.2
LENS & VIEW ANGLE	0.5mm F2.0 /90 °
S/N RATIO	52dB
ELECTRONIC SHUTTER	OUT (1/60 S TO 1/100000 S)	OUT (1/50 S TO 1/100000)S
AUTO GAIN CONTROL	OUT
WHITE BALANCE CONTROL	OUT
BACK LIGHT COMPENSATION	OUT
VIDEO OUT	1.0V p-p/75ohm
AUDIO OUT	1.0V p-p/1Kohm
SIZE (L x W x H)	10.5x11.5x22.5mm
WEIGHT	4g
WORK CURRENT	35mA
POWER REQUIREMENT	DC5V/12V
OPERATING TEMPERATURE	- 10° C ~ +50°C ,less than 90% RH
Connection	PIN1- Red DC5V PIN2- Black GND PIN3- Yellow VIDEO OUT PIN 4—White AUDIO OUT

Usage:

1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;

3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;

Ready AV/BNC cable and power supply cable. Just plug & play!

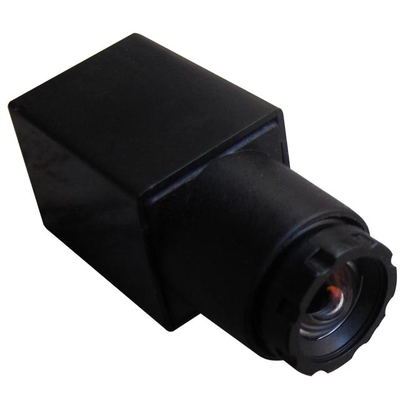

4g Lightweight Miniature CCTV Cameras With Audio 0.008Lux 90 Degree 2
