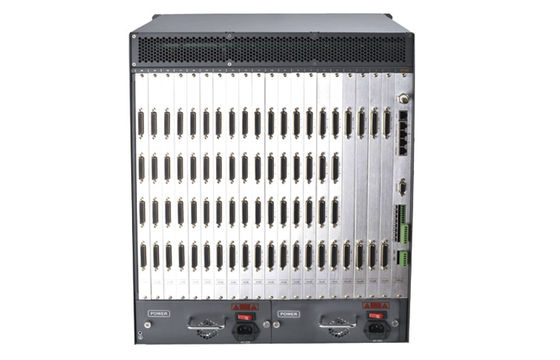

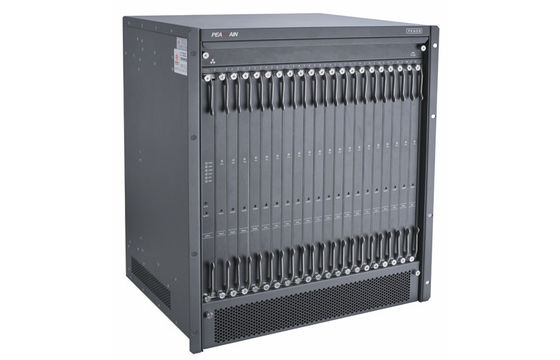

512x64 CE UL Approved CCTV Analog Video Matrix Switcher for Video Matrix System

512x64 CE UL Approved CCTV Analog Video Matrix Switcher for Video Matrix System
512x64 CE UL Approved CCTV Analog Video Matrix Switcher for Video Matrix System 512x64 CE UL Approved CCTV Analog Video Matrix Switcher for Video Matrix System

Large Image :  512x64 CE UL Approved CCTV Analog Video Matrix Switcher for Video Matrix System

Product Details:
Place of Origin: China
Brand Name: pearmain
Certification: CE, UL
Model Number: PE60S
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: negotiation
Packaging Details: special shipping carton, 67x61x58cm, 30kgs
Delivery Time: 7 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100units per week
Detailed Product Description
Input: 512ch Output: 64
Communication: Software To Set All Parameter Of Matrix Dual CPU: External Dual CPU
Dual Power: Dual Power Supply Unit
High Light:

analog matrix

,

analog switch matrix

PE60S Full cross-point analog Video Matrix switcher , Pearmain modular matrix system ,  UL certified



Quick Detail:



● Microprocessor-Based, Full Cross-Point Video Matrix.

● Modularization Design Supports Up To 512 Cameras And 64 Monitors In Each Matrix Bay

● Control Up To 50,000 Cameras And 512 Monitors On Base Of System Extension.

● System Diagnostic Leds Displayed On Front  Panel.

● Logical Camera Selection And Priority Level Operation & Configuration In Matrix Software

● Built-In Video Loss Detection

● Windows-Based System Management Software, Includes Multilingual Menus And On-Screen Help

● Factory Tested Prepackaged System Configuration And Quick-Guide Manual.

● Including ASCII Data, DVR, PTZ, Network, Etc. Protocol

● Powerful Macro Programming

● CE, FCC, ROHS,UL compliant



Description:



PE60S is Network Modular Matrix, one matrix bay can have up to 512ch video input & 64ch video output, can extend to 65535ch input, Dual CPU & Dual Power supply for Plug & play and seamless switching.

Redundant Dual CPU & Dual power supply unit for double guarantee.

Configuration software to set all parameter of matrix.



Specifications:



Communication

Communication

RS-422, RS-485, RS-232, TCP/IP

Baud rate

19200 bits/s, 9600 bits/s, 4800 bits/s, 2400 bits/s etc.

Interface

RS-422  RJ45 connector ( full duplex )

RS-232  RJ45 connector

RS-485 3-pin 3.81 connector(semi-duplex)

System configuration

System User

255

System capacity

Main matrix bay:  512ch inputs/ 64ch outputs

Maximum input:  608ch inputs / 8ch outputs

Maximum after extension: 50000ch outputs / 512ch outputs

Logic encoding value: 999999 inputs / 2048outputs

Alarm capacity

50000

On-screen display

Camera title: 32 english character

Full screen: 16 lines, 42 row english character

Character

Chinese/ English / Latin / Cyrillic

Power-off memory time

10 year

Video

Video input

1Vp-p/75Ω Composite signal

Video output

1Vp-p/75Ω Composite signal

Signal to noise ratio

>60dB ( unweighted )

>70dB ( weighted )

Channel bandwidth

5Hz~8MHz(1Vp-p with filter)

20MHz(1Vp-p,-3dB without filter)

65MHz(20mVp-p,-3dB without filter)

Insertion gain

<0.2dB

Differential gain

<1.0%

Differential phase

<1.1°

Frequency characteristics

<1.0dB(5.8MHz)

Adjacent Channel Crosstalk

<-55dB(PAL: 4.43MHz/NTSC: 3.58MHz)

Adjacent channel isolation

>50dB(PAL: 4.43MHz/NTSC: 3.58MHz)

Line Time Waveform Distortion

<1.0%

Typical switching time

20ms(Typical)

Electrical Characteristics

Power Supply

100~240VAC 50/60Hz Adaptive

Power consumption

160W

Mechanical Specifications

Weight

35KG(Full capacity)

Installation dimension

484mm(Width)×366.0mm(Depth)×532.6mm(12U) height

Rack

19’’ EIA standard chassis

Environmental specifications

Operating temperature

-10~+55℃

Operating Humidity

0~90%RH(No condensation)





Applications:



For the surveillance system where there are all analog cameras, the application focus on real time surveillance.

The application including Transportation control center, casino, city surveillance, anti-terrorist, harbor,etc. large scale surveillance system.

Contact Details
CHINA UPS Electronics Co., Ltd.

Contact Person: Mr. Song

Tel: 86-137367899

Fax: 86-755-7287468

Send your inquiry directly to us (0 / 3000)
