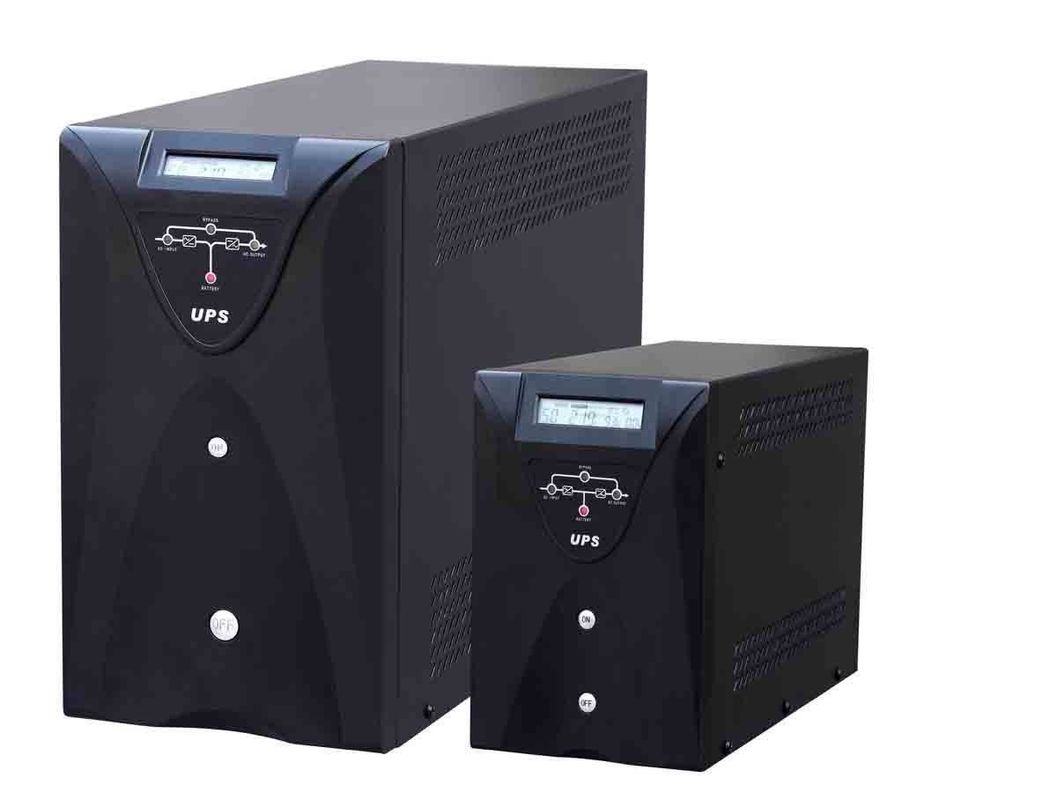

110V / 220V Line inetractive pure sine wave UPS 1000VA / 600W - 3000VA / 1800W

110V / 220V Line inetractive pure sine wave UPS 1000VA / 600W - 3000VA / 1800W
110V / 220V Line inetractive pure sine wave UPS 1000VA / 600W - 3000VA / 1800W

Large Image :  110V / 220V Line inetractive pure sine wave UPS 1000VA / 600W - 3000VA / 1800W

Product Details:
Place of Origin: China
Brand Name: LSG
Certification: CE,FCC,ISO9001
Model Number: LSG
Phase: Single Phase
Protection: Overvoltage
Output Voltage: 110V/220V
Type: Line Interactive
Application: Computer
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Get Latest Price
Packaging Details: 1pc/carton
Delivery Time: 30 working days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 10000pcs/month
Detailed Product Description
High Light:

pure sine wave online ups

,

double conversion ups

110V / 220V Line inetractive pure sine wave UPS 1000VA / 600W - 3000VA / 1800W



Specifications


Ideal Application
Home PC, SOHO, small scale exchange, supermarket POS machines, workstation and peripheral devices




Line interactive UPS Features:



From 1KVA to 3KVA
Inbuilt and extenal bat. model avaliable
Microprocessor-based Digital Control

Wide Input Voltage and Frequency Range

Pure Sine Wave Output Waveform

Self detection of Input Frequency (50HZ/60HZ)

Battery Self Diagnosis

Full AVR

Switch ON and OFF Automatically

Humanized Audio Alarm

Full Protection against Overload, Short Circuit etc.

High Speed of In-phase transfer

No Load Shut Off function In INV mode (optional)

Intelligent Communication Ports Available ( RS232/USB/SNMP)



Specifications



Model

KP1K

KP1K5

KP2K

KP3K

VA Rating

1000VA

1500VA

2000VA

3000VA

Real Power Rating

600W

900W

1200W

1800W

Display

Indicator on Panel

LED  / LCD plus LED display

AC Mode

Types Of Load

Ancillary equipments such as PC, display, group computers and so on

Input Voltage

165Vac ~ 280Vac / 145Vac-280Vac(optional)

Input Frequency

45-65 Hz( transfer to battery mode if out of this range)

Output voltage

190-245Vac

Efficiency

≥ 96% (AC Mode)

Overload in AC mode

110% transfer to bypass within 60sec;
120% transfer to bypass within 30sec;

Automatically recovery if decrease the load capacity.

Short Circuit

Protected by Input Fuse

Inverter Mode

Output Voltage

220Vac± 5%

Output Frequency

50HZ/60HZ ± 1% self-detection

Output P.F

≥0.6

Output Waveform

Pure Sine Wave

Waveform Distortion

Liner Load ≤ 5%

Battery Backup Time

≥ 10min (PC load)

Transfer Time

Typical value 5ms, Max: 8ms

Efficiency

≥ 80(INV Mode)

Overload in INV mode

110% Shut down within 60sec;
120% Shut down within 5sec;

Short Circuit

≥20ms System shut down automatically

Alarm

AC abnormal

Once every 4sec, be silent after 40s

Battery low

Once every 0.2sec

Overload

Once every 1sec

Battery

DC voltage

24V

24V

36V

48V

Configuration

2×12V7AH

2×12V8AH

3×12V 8AH

4×12V 8AH

Recharge Time

90% Capacity after 8hours

Communication

RS232/USB/SNMP(can be set to turn on/off UPS automatically)

Others

Output Sockets

Customized upon request

IP Level

IP20

Ambient Temperature

0 ~ 40

Ambient Humidity

10% ~ 90% (No Condensing)

Noise

≤50dB (1m)

Dimension(mm)

D*W*H

360×145×215

430×145×215



475×200×337

Packing Dimension(mm)

450×325×245

510×325×245



590×320×465

Net Weight (kg)

14.5

15.5

18.5

27

Gross Weight (kg)

15.5

16.5

19.5

28.60
