220v Communication 48V DC Power Supply Input Frequency Range

220v Communication 48V DC Power Supply Input Frequency Range
220v Communication 48V DC Power Supply Input Frequency Range

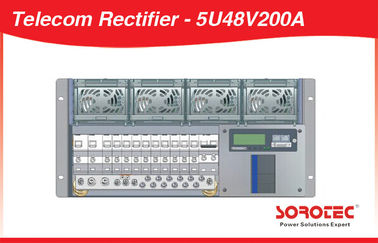

Large Image :  220v Communication 48V DC Power Supply Input Frequency Range

Product Details:
Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000
Model Number: Embeded System - 5U48V200A
Payment & Shipping Terms:
Minimum Order Quantity: USD10000
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: 30% TT in advance, the balance before shipping
Supply Ability: 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Detailed Product Description
Rated Voltage: 220V AC Intput Voltage Range: 90-290V
AC Frequency Range: 43-67HZ Max. Current: 18.6A
High Light:

dc 48v power supply

,

48vdc power adapter

220v Communication 48V DC Power Supply Input Frequency Range



AC Input:
Rated input voltage :220V


AC input Voltage range:90-290V


AC input Frequency range;43-67HZ


Power factor :≥0.99


Efficiency : >92%


DC output :
Rated voltage:48V


Voltage range: 42-58V


Rated Current :200A


load shunt: 4 road load


battery shunt:2 road battery


battery LVD:100A×2


Mode of connection :Former connection wire


Rectifier Module :SR4850


Monitoring Module :STM-1



Safety characteristics:


Input ----output 3000vac/10mA//1min No arcing, no breakdown


Input---- chassis 2500Vac/10mA//1min No arcing, no breakdown


Input---- chassis 500Vac/10mA//1min No arcing, no breakdown



Environment:
Operating temperature :-40°c - +70°c
Humidity : ≤95% non-condensing

Mechanical characteristic :
Dimensions(W.H.D): 480*270*300(mm)
Weight(Kg): 20kg (include rectifier module)
