High Power Full bridge topology lcd pure sine wave ups system 2KVA / 1400W , 4KVA / 2800W

High Power Full bridge topology lcd pure sine wave ups system 2KVA / 1400W , 4KVA / 2800W
High Power Full bridge topology lcd pure sine wave ups system 2KVA / 1400W , 4KVA / 2800W

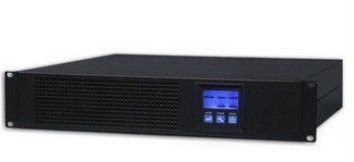

Large Image :  High Power Full bridge topology lcd pure sine wave ups system 2KVA / 1400W , 4KVA / 2800W

Product Details:
Place of Origin: China
Brand Name: LSG
Certification: CE,FCC,ISO9001
Model Number: LSG
Phase: Single Phase
Protection: Short Circuit
Output Voltage: 220/230/240VAC
Type: On-line
Application: Computer
Product Name: Full bridge topology lcd pure sine wave ups (Sigma RM 1-6kva)
Battery: maintenance-free lead acid battery
Indicator: LCD
Output Wave Form: Pure sine wave
Model: Sigma RM 1-6KVA
Interface: RS232+Dry contact(DB9)+USD(optional)
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Get Latest Price
Packaging Details: 1pc/carton
Delivery Time: 30 working days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 10000pcs/month
Detailed Product Description
High Light:

ups pure sine wave

,

pure sine wave online ups

High Power Full bridge topology lcd pure sine wave ups system 2KVA / 1400W , 4KVA / 2800W



Specifications


Full bridge topology lcd pure sine wave ups
1.220/230/240VAC
2.LCD display UPS
3.Single phase
4.CE&ROHS&ISO9001




Full bridge topology lcd pure sine wave ups (Sigma RM 1-6kva)



Outstanding features:

1.Pure  sine wave output online lcd ups power supply

2.Tower/Rack multi-configuration for flexible installation

3.Adopting high frequency full bridge topology for high steady performances

4.Cold start function online ups

5.Enable to extend runtime with scalable external battery pack

6.Hot-swappable battery design

7.Compact size with high over all efficiency



Technical specification



Model/Power

RM1KL RM1KSL RM2KL RM2KSL RM3KSL RM4KSL RM6KSL
1KVA/700W 2KVA/1400W 3KVA/2100W 4KVA/2800W 6KVA/4200W



 Input

Input system

Single phase& earth ground

Rated voltage

230VAC

Frequency

50/60Hz +/-5 Hz(Auto sensing)

Power Factor

More than 0.98(full load)

Voltage range of bypass

230VAC +/-10%(adjustable)



Output

Output System

Single phase & earth ground

Rated voltage

220/230/240 VAC

Power Factor

0.7

Voltage Precision

+/-1%





No.

Function LCD display button Description
1 On/Off  Switch For UPS on and off
2 Config.  Switch For doing the UPS parameter configuration
3 Enter  Switch To confirm the parameter setting
4 Input  Information Input parameters (voltage & frequency)
5 Output  Information Output parameters (voltage & frequency)
6 Bypass  Indicator Operating in bypass mode
7 ECO  Indicator Operating in economic mode
8 Inverter  Indicator Operating in inverter mode
9 Warning  Information Warning and fault indicators
10 Battery  Information Battery capacity level
11 Load  Information Load capacity level
