100KVA 230 / 400VAC, 192pcs 2V battery, Cold start 3 Phase Online UPS Systems

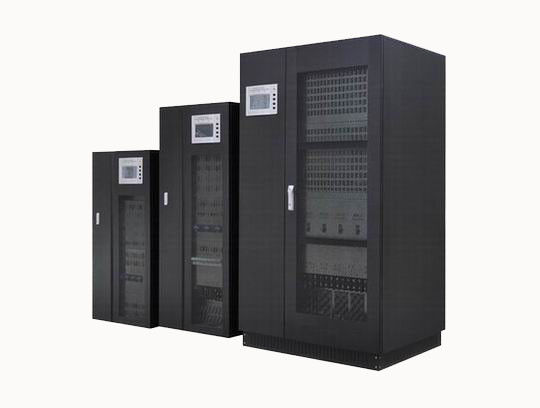

Large Image : 100KVA 230 / 400VAC, 192pcs 2V battery, Cold start 3 Phase Online UPS Systems

Product Details:

Place of Origin:	China
Brand Name:	LSG
Certification:	CE,FCC,ISO9001
Model Number:	LSG

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Get Latest Price
Packaging Details:	1pc/carton
Delivery Time:	30 working days
Payment Terms:	L/C,T/T,Paypal
Supply Ability:	10000pcs/month

Contact Now

Detailed Product Description

High Light:

three phase ups systems

3 phase ups system

100KVA 230 / 400VAC, 192pcs 2V battery, Cold start 3 Phase Online UPS Systems

UPS Power CHP 80-120KVA:
1. 3/3, internal large power charger
2. EXCELLENT cooling system
3. Internal audio alarm system

UPS Power CHP 80-120KVA:

1. Pure sine wave output, true on-line dual conversion design

2. Adopt 4 layer PCB, and SMD technology.

3. The sixth generation IGBT, the inverter has high efficiency, low temperature, high reliability.

4. Touch screen display, with the simple operation and Intuitive data, optional display language and logo.

5. Set the work mode on the display directly, UPS mode, ECO mode, EPS mode.

Intelligent detecting function

6. Excellent load feature, it is completely capable to load from 0-100% while no need to change to bypass
7. Three phase separately control, realizes the control of instantaneous over-loading balance, so as to reach 100% unbalanced load.

8. Cold start

9. Generator compatible

10. RS232 and RS485 standard collocation, optional SNMP and dry contact

11. Perfect protection.

12. Selectable battery inspection module

13. High-powered dynamic feature

14. Optional input harmonic filter or 12 pulse rectifier

15. www.baykeepower.cn, http://en.baykee.net

Model		CHP-80K	CHP-100K	CHP-120K
Nominal capacity KVA		80KVA	100KVA	120KVA
Work principle
Phase		3phase+N+G
Input power factor		>0.8 or >0.95
Rectifier	Nominal input voltage	220/380VAC or 230/400VAC or 240/415VAC
	Range	+/-25%
	Nominal input frequency	50Hz+/-10% or 60Hz+/-10%
	Output ripple	Less than 2%
	Soft start	0-100% 5sec
Charge	Charge mode	constant current to constant voltage, with temp compensation; with Auto change
	Float Voltage	432VDC
	Boost Voltage	464VDC
	Temperature compensation voltage	3mV/ 1 pcs
	Charge current	0.1C( automatically change follow the batteries )
	Charge frequency	20% of Rated capacity
Battery	Battery Type	maintenance-free lead acid battery
	Battery capacity	7--999AH settable (according to the capacity)
	Battery number	32pcs 12V or 192pcs 2V(Nominal voltage 384VDC)
Inverter	Phase	Three phase+N
	Capacity	Rated capacity *0.8
	Nominal voltage	220/380VAC or 230/400VAC or 240/415VAC
	Output voltage stability	+/-1%( Stable load); +/-3%( fluctuant load)
	Output frequency stability	50Hz/60Hz＜+/-0. 5%
	Creast factor	> 3:1
	Output waveform distortion	Sine wave , linear load<3%;non-linear load<5%
	Dynamic characteristics	Instant voltage<+/-5%(from 0 to100% ), Instant recover time<10mS
	Unbalanced load voltage	＜+/-5%
	Overload Protection	125%10 m；150%1S；200％200 ms
	efficiency	>95％(full load)
Bypass	Phase	Three phase +N
	Nominal voltage	220/380VAC, 230/400VAC, 240/415VAC
	Transfer time	<1mS( static switch with 0 transfer time )
Protection	Input protection	Input voltage/frequency over limited ;wrong phase; lack phase
	Output protection	Over current short circuit ; factor low protection
	Battery protection	Over charge ; over-discharge protection
	Temperature protection	Ambient over temperature protection; inverter over temperature protection
	Hardware failure protection	Assistant power abnormal, breaker cut off , breaker overload, power components over current/over voltage etc protection
System Parameters	Working environment	Temp: 0～40, relative humidity 30%～90 %;( a 1% decrease against 100 meters’ rise. Altitude 4000m MAX)
	cooling -down method	COMPULSIVE VENTILATION(with temperature control)
	Communication Interface	RS232, RS485; optional SNMP card (for internet long distance monitor )
	Redundancy function	In series or N+1 parallel
	Anti-surge capacity	10/700μS, 5KV ；8/20μS, 20KA
	Protection level	IP21
	Safety Performance	Vin-n Vout-n 3000Vac, creepage<3.5mA isolation resistance >3M(500VDC)
