Product Details:
Payment & Shipping Terms:
|
| High Light: | portable power inverter,power inverter for car |
||
|---|---|---|---|
| Place of Origin: |
China (Mainland)
|
Brand Name: | OEM | Model Number: |
EP2000 series PS1K-10KVA Sinewave Inverter
|
| Output Power: | 1K-10KVA | Output Type: | Single | Size: | 452*192*338 or 500*260*455mm |
| Weight: | 15KGS/40KGS | Input Voltage: | 145-275v | Output Voltage: | 100V-240V |
| Type: | DC/AC Inverters | Output Frequency: | 50HZ or 60HZ | Output Current: | 2.7a |
| display: | LCD or LED | Voltage Waveform: | Pure Sine wave | Transfer time: | 1ms-3ms |
| Input Voltage Range: | 75V ~ 155V or 145V ~ 310V | design outlook: | tower or smaller size rack type | capacity: | 1K-10KVA |
| 100% factory control: | 12 month warranty | 2% free parts: | mainly PCB boards | phase: | single phase, for home or solar system |
*25amp charger
*LCD/LED, rack and tower type.
*input voltage:145V-280V
*with input AVR function
*CE certificate

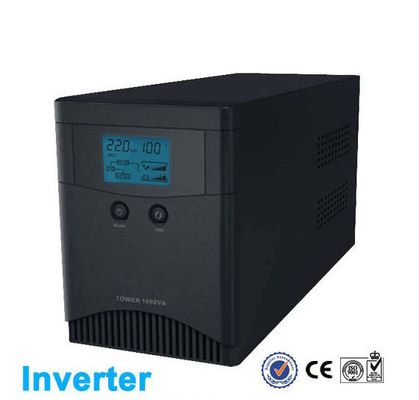

Home use 1kva-10kva pure sine wave power inverter
| MODEL | 115V Models | 230V Models | |
| OUTPUT | |||
| Power Levels crated at | 1000VA /600W;2000VA / 1200W | 1KVA /0.6KW;2KVA / 1.2KW | |
| nominal inputs | 3000VA / 2250W;5000VA/3500W | 3KVA /2KW;5KVA/3.5KW;10KVA/6KW | |
| Output Voltage | 100V/110V/115V/120V Selectable | 200V/220V/230V/240V Selectable | |
| Voltage Waveform | Pure Sine wave | ||
| Crest Factor | 3:1 | ||
| Output Frequency | Auto Select for 50/60Hz | ||
| (Synchronized to Mains) |
47Hz ~ 55Hz for 50Hz nominal 56Hz ~ 65Hz for 60Hz nominal |
||
| Regulation (Nominal) | ±10% typical of nominal voltage | ||
| Regulation(Battery mode) | ±3% of selected output voltage (adjustable with theremote set-up software) | ||
| Transfer time |
Blackout 3ms typical Brownout 1ms typical Battery mode to Normal mode??1ms typical |
||
| Over current protection |
Over load alarm level 100% ~ 120% Over load shutdown level 120% ~ 190% (Adjustable by using the remote set-up software) |
||
| INPUT | |||
| Nominal Voltage | 100V/110V/115V/120V Selectable | 200V/220V/230V/240V Selectable | |
| Input Frequency | 47Hz ~ 65Hz, 50/60Hz auto-sensing | ||
| Efficiency (Normal mode) | 97% | ||
| Noise Filtering | Full time EMI/RFI filtering | ||
| Over current protection |
Re-settable over current protector 500VA ~ 5000VA |
AC Fuse 1000VA/1500VA Re-settable over current protector from 1.5KVA to 10KVA |
|
| Voltage Range | 75V ~ 155V | 145V ~ 310V | |
| AVR Range(2 Bucks, 2 Boosts) |
Enhanced Buck: +28% of selected nominal voltage Buck mode: +10% of selected nominal voltage Boost mode: -10% of selected nominal voltage Enhanced Boost: -25% of selected nominal voltage |
||
| Surge Protection |
500VA/1500VA 216 Joules 1500VA~5000VA 424 Joules |
500VA/1500VA 220 Joules 1500VA~10000VA 834 Joules |
|
| BATTERY | |||
| Battery type | Lead-Acid 50Ah to 500Ah (Recommended) | Lead-Acid 50Ah to 500Ah (Recommended) | |
| Voltage |
500VA/800VA/1000VA: 12Vdc 1500VA/2000VA: 24Vdc 3000VA/5000VA: 48Vdc |
500VA/800VA/1000VA: 12Vdc 1500VA/2000VA: 24Vdc 3000VA/5000VA/10kAV: 96Vdc |
|
| Typical backup time | No Limit | ||
| Charging method |
Quick charging when battery is not fully charged, trickle charging when battery is 90% fully charged. |
||
|
Maximum charging current |
1500VA/15A ;2000VA/20A ; 3000VA/20A ; 5000VA/20A |
1500VA/15A ;2000VA/20A ; 3000VA/20A ; 5000VA/20A |
|
| Average charging | Quick charging mode:14V maximum. | ||
| voltage for each battery | Trickle charging mode:13.5V (adjustable with the remote set-up software) | ||
| Protection |
Over current protection & Over charging voltage protection (SCR control) Thermal protection (CPU control) When temperature inside the unit is over 45 °C, charger will stop charging for 2 minutes followed by an 2 minutes charging. The cycle will be repeate |
||
| Monitoring |
Smart monitoring & warning for failed battery or open-circuit battery. Auto-detection each time when power on or every 6 days. |
||
| SOLAR CHARGER(OPTIONAL) | |||
| Rating voltage | 12V / 24V / 48V | 12V/24V/48V/96V | |
| DC input range |
12V model : 12 ~ 21Vdc 24V model : 24 ~ 42Vdc 48V model : 48 ~ 84Vdc |
||
| Charging method | Constant voltage with current limiting by PWM control | ||
| Charging voltage |
12V model :13.5Vdc 24V model : 27.0Vdc 48V model : 54.0Vdc |
||
| Power rating |
12V model : 500W (13.5Vdc @ 37A) 24V model : 1000W (27.0Vdc @ 37A) 48V model : 1000W (54Vdc @ 18.5A) |
||
| Protection |
DC input polarity protection, DC input short circuit protection( when battery is connected), DC output over current protection |
||
