Product Details:
Payment & Shipping Terms:
|
| High Light: | off grid residential solar power systems,solar power home systems |
||
|---|---|---|---|

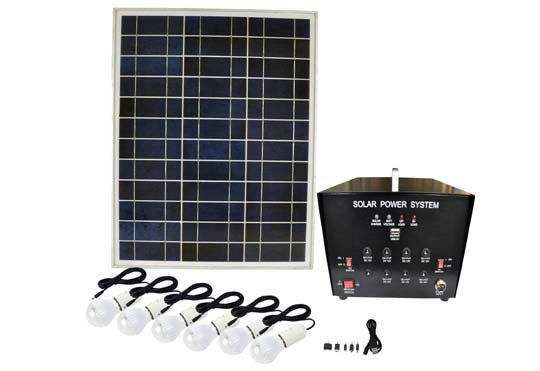

DC solar power system
Solar panel: 18V/45W
Battery: 12V/28AH AGM battery
Controller: 12V/3A
Output: 5V+12V DC
Description:
Off-grid Solar System is widely used in remote mountain areas, no electricity islands, communication base stations, street lamps and other application scopes. The system consists of solar panel, charge controller, battery, off grid inverter, DC load and AC load. Under solar radiation, the solar panel array converts solar energy into electrical energy to power the load through the PV controller, and charge the battery bank at the same time, when no solar radiation, the battery bank power the DC load through the charge controller, or power the AC load through the inverter which converts the DC electricity into AC electricity.
With various design, DS series DC solar power system can provide stable DC power to home system, small office system and street lamp or camera.
Applications:
Home power system
Small office power system
Mountain power system
Island power system
Street lamp or camera
Product Specification:
Model No. | Solar Panel | Battery | Controller | Led lamp in set | Output Voltage |
DS045 | 18V40W | 12V28AH | 12V3A | 3W*6pcs | 5V+12V |
Working Data:
Model No. | Fully charging time by solar(h) | Using time after fully charged | |||
LED Lamp In Set | 5W Mini Fan | 6W Mini TV | 15W Standing Fan | ||
DS045 | 9-11h | 14-15h | 51-52h | 43-44h | 16-17h |
Product Size Weight:
Model No. | System Case | Solar Panel | ||||||
Size (mm) | Weight(Kg) | Size (mm) | Weight(Kg) | |||||
L | W | H | 12.86 | L | W | H | 4.5 | |
DS045 | 256 | 235 | 170 | 655 | 515 | 25 | ||
Competitive Advantage:
1)DC solar lighting kit for charging DC led lamp, mobile phone, mini fan, mini TV, output voltage: 5V+12V
2)Long tested product with good performance
3)Easy to use and maintain
4)With 3W*6 pcs led lamp with 5m cable and switch in set, solar panel is with 10m cable, with phone charging unit
Contact Person: Mr. Song
Tel: 86-137367899
Fax: 86-755-7287468
