Solar Power Micro Inverter with 260W Peak Power Output

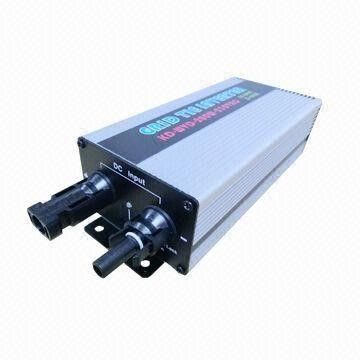

Large Image : Solar Power Micro Inverter with 260W Peak Power Output

Product Details:

Place of Origin:	China (mainland)
Brand Name:	RUIHER
Model Number:	RHC-WVD-260W
MOQ:	1 to 99 Pieces
Main Export Markets:	Eastern EuropeNorth AmericaMid East/AfricaCentral/South AmericaAsiaWestern EuropeAustralasia
Lead Time:	15-45days
Category:	Inverters & Converters

Payment & Shipping Terms:

Minimum Order Quantity:	1 to 99Pieces
Payment Terms:	L/C,T/T,Paypal

Contact Now

Detailed Product Description

Key Specifications/Special Features:

Supply 260 to 500W mirco inverter, for 1 to 2 solar panel, on grid inverter
High efficiency, high power density and high reliability
Input voltage range: 22 to 60V DC
Output voltage range: 90 to 150V AC/190 to 260V AC
Out frequency range: 50/60Hz
Peak power output: 260W
Output wave: pure sine wave
Power automatically locked (APL)
Maximum power point tracking (MPPT)
High frequency, micro-inverter
Net weight: 0.66kg
Dimensions: 19 x 8 x 4.5cm
Communication: power line communication
Waterproof: IP65
Models: WVD-260W-230V/50Hz/120V/60Hz
Recommend use solar panels: 300Wpv
DC maximum input current: 20A
AC maximum output power: 260W
DC maximum open-circuit input voltage: 100V DC
DC input voltage range: 22 to 60V DC
Maximum output power factor: 0.99
DC input reverse voltage protection: fuse
AC output voltage range: (120V versions 90 to 160V AC) (230V versions 190 to 260V AC)
AC frequency range: 48 to 63Hz
Output current total harmonic distortion: THDIAC AC phase: Islanding protection: V AC, f AC
Output short-circuit protection: current-limiting
Show: LED mode power instruction voltage instruction
AC frequency instruction over-voltage instruction
Communication way: 60kHz modulation, power line carrier-current communication
Standby power: Night power: Ambient temperature range: -25 to 60°C
Humidity: 0 to 100% (indoor type design)
Waterproof: IP65
Electromagnetic compatibility: EN50081.part1, EN50082.part1
Power system disturbance: EN61000-3-2 EN62109
Network test: DIN VDE 1026 UL1741
Compliant with CE standards
