5,000W Grid Tie and Off Grid Solar Inverter with Single Phase

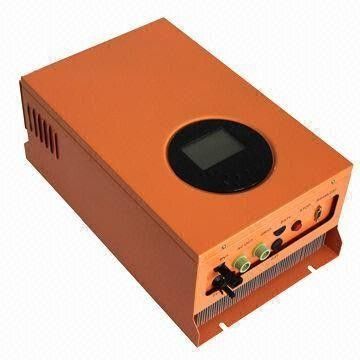

Large Image : 5,000W Grid Tie and Off Grid Solar Inverter with Single Phase

Product Details:

Place of Origin:	China (mainland)
Brand Name:	RUIHER
Model Number:	RHC-SMX3-5K/1S
MOQ:	1 to 99 Pieces
Main Export Markets:	Eastern EuropeNorth AmericaMid East/AfricaCentral/South AmericaAsiaWestern EuropeAustralasia
Lead Time:	15-25days
Category:	Solar Cells, Solar Panel

Payment & Shipping Terms:

Minimum Order Quantity:	1 to 99Pieces
Payment Terms:	L/C,T/T,Paypal

Contact Now

Detailed Product Description

Key Specifications/Special Features:

Ruiher supply single phase/ three phase PV solar power inverter from 0.25 to 500kW, suitable for grid tie solar system, off grid solar system
SMS inverter is an innovative product for grid tie and off grid solar power system, which auto switch to grid tied or stand alone mode
Grid tide mode is preferred always
When the grid and PV panel running well, SMS will feed in the power to loads, at the same time charging battery, and the excess power will feed-in grid, when grid has fault, after very short time, SMS inverter will switch to stand-alone mode
In off grid case, PV power is preferred, if solar power is not enough, battery will make up the rest within 10 minutes, after battery will take over panel as power source
Features:
- Maximum efficiency: 97.0%
- MPPT maximum efficiency: 99.0%
- Power factor: 0.9999
- Active frequency: offset anti-islanding
- Large screen multi-language: LCD display
- Stacked available
- Less standby power consumption
- Multi-protection for maximum safety
- Statistics for power production and CO2
- 8K x 4 run log cycle index
- RS485/232 compatible
- Soft or variable frequency start option
- Battery manage option
- Various panel types matched
- Various battery types matched
- Specification: normal
- Application: commercial
- Output voltage: 220 to 240V AC
- Output frequency: 50 or 60Hz
- Output current: 26.18A
- Battery self-checking: optional
- Minimum order quantity: >1pc
- Output type: single phase
- Input voltages: 180 to 360V DC
- Output voltage: 220V AC
- Type: DC/AC inverter
- Output frequency: 50 ± 0.5z
- Maximum efficiency: 97.0%
- Euro efficiency: 95.5%
- Interfaces: RS485/RS232
- Topology: HF-CHAIN
- Cooling concept: natural cooling
