Product Details:
Payment & Shipping Terms:
|
| High Light: | 500W Off-grid Solar Power inverter,Inverter manufacturer,500W inverter |
||
|---|---|---|---|

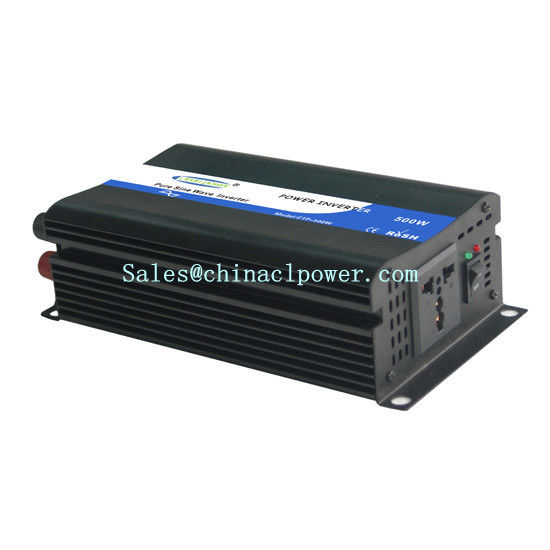

This inverter instantly converts low voltage DC power to high voltage AC power with the advanced double
CPU SCM intelligent controlling technology.
With innovative design and super efficiency, inverter is low noise & high efficiency，widely applied for
power tools, home appliances, office equipments, portable equipments and etc. You can use in many
places, such as cars, trucks, trailers, boats, laptops, camcorders, cell phones and so on.
Specification:
Model | CTP-500W | ||||||
Rated power | 500W | 500W | 500W | 500W | 500W | 500W | |
Peak power | 1000W | 1000W | 1000W | 1000W | 1000W | 1000W | |
DC input voltage | 12V | 24V | 48V | 12V | 24V | 48V | |
AC output voltage | 100VAC,110VAC,115V,120VAC | 220VAC, 230VAC, 240VAC | |||||
No-load current | <;;;;;0.5A | ||||||
AC output frequency | 50HZ±0.5Hz ,60HZ±0.5Hz | ||||||
AC output waveform | Pure Sine Wave Power Inverter | ||||||
Waveform distortion | THD＜3%(Linear load) | ||||||
Efficiency | ＞85% | ＞88% | ＞90% | ＞85% | ＞88% | ＞90% | |
DC input voltage range | 10.5-15V | 21-30V | 42-60V | 10.5-15V | 21-30V | 42-60V | |
Low Voltage Alarm | 10.5+/-0.3V | 21+/-0.3V | 42+/-0.3V | 10.5+/-0.3V | 21+/-0.3V | 42+/-0.3V | |
Low Voltage Shutdown | 10+/-0.3V | 20+/-0.3V | 40+/-0.3V | 10+/-0.3V | 20+/-0.3V | 40+/-0.3V | |
Over Voltage Protection | 15.5+/-0.5V | 31+/-1V | 62+/-2V | 15.5+/-0.5V | 31+/-1V | 62+/-2V | |
Low Voltage Recovery | 12+/-0.5V | 24+/-1V | 48+/-2V | 12+/-0.5V | 24+/-1V | 48+/-2V | |
Over Voltage Recovery | 14.8V | 29.5V | 59V | 14.8V | 29.5V | 59V | |
| Low/Over voltage | LED Red light, automatic recovery | |||||
Over load | LED Red light, automatic recovery | ||||||
Over temperature | LED Red light, automatic recovery | ||||||
Short circuit | LED Red light, automatic recovery | ||||||
Input reverse connection | Fuse Burn-out | ||||||
Working Temp. | 0-40C | ||||||
Storage Temp. Humidity | (-30)-70C | ||||||
Dimension | 240*118*62mm | ||||||
Net Weight | 1.5Kg | ||||||
Warranty | 12 Months | ||||||
Features:
1.Output wavefrom:Pure sine wave inverter
2.Full load efficiency>85%
3.12v/24v/48v DC input
4.100v/110v/120v-AC220V/230V/240V AC Output(Optional)
5.Output frequency 50HZ or 60HZ(According to your request)
6.Continuous output power:500w
7.Peak power:1000w
8.High-Velocity cooling fan
9.Overloaed protect,over voltage protect,low voltage alarm
10.Warranty 1year
