Product Details:
Payment & Shipping Terms:
|
| Nominal Capacity: | 20Ah | Nominal Voltage: | 11.1V |
|---|---|---|---|
| Size: | Customized | ||
| High Light: | lithium ion rechargeable battery pack,18650 lithium ion battery |
||

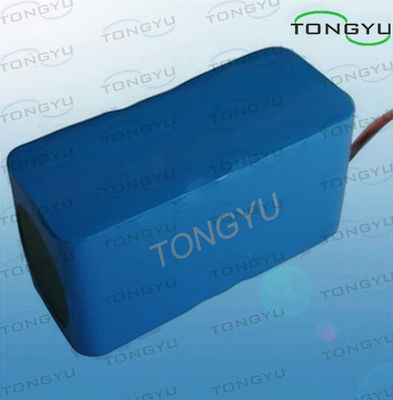

11.1V 20Ah Lithium Ion Rechargeable Battery For Off-Grid Portable Solar Power
Quick Detail:
Nominal voltage: 11.1V
Nominal capacity: 20000mAh
Dimensions: Customized
Packed with PCM, wire and connector
Weight: 1800g
Charging temperature: 0 to 45°C
Discharging temperature: -10 to 60°C
Storage temperature: -20 to 60°C
High-standard safety
High-discharge drain
OEM orders are welcome !
And different voltage and capacity and dimension is available!
Applications:
Lighting, medical instruments and power tools
Suitable for electric appliances, electric croppers, UPS, e-bikes and medical equipment...
Golf trolleys, Golf carts,
UPS backup
Fire alarm and security systems
Telecommunication equipment
Electric equipment and telemeter equipment
Light equipment, dc 12v led lights
Wireless lawn movers vacuum cleaner and washing machine
Toys and consumer electronics
Solar systems 12v
Portable power tools measuring and medical equipment Portable video camera portable personal computer
Garden lighting
Sound systems
And etc
Features:
a. Low self-discharge and good discharge performance at low-temperature.
b. Strong charging acceptance and quick-charging capability.
c. Strong over-discharge resistance and charge retention.
d. Maintenance-free and no acid or water for maintenance in usage.
e. Large current discharge performance and have obvious advantages in start up and climbing.
f. High-temperature performance.
g. Eco-friendly.
h. Lightweight and small in size.
i. Safety: no explosion and fire
Products Photos:
Specifications:
|
TONGYU Item |
TY-11.1V-20A |
|
Nominal Capacity |
20,000mAh |
|
Nominal Voltage |
11.1V |
|
Normal discharge current |
1C |
|
Maximum current |
2C |
|
Discharge cut-off voltage |
9V |
|
Max charge voltage |
12.6V |
|
Charge method |
CC, CV |
|
Standard Charge current |
0.2CA |
|
Fast charge current |
1CA |
|
Charge temperature |
0℃～45℃ |
|
Discharge temperature |
-20℃～60℃ |
|
Size(L*W*H) |
Customized |
|
Weight |
1800g |
|
Protection function |
Overcharge protection, Over discharge protection, Over current protection, Temperature protection, Balanced function |
TONGYU Lithium iron phosphate battery cell part model
|
Model |
Nominal Voltage |
Capacity |
Dimension |
Weight |
||
|
(V) |
Approx |
|||||
|
|
Typical |
Nominal |
D |
H |
(g) |
|
|
|
(mAh) |
(mAh) |
(mm) |
(mm) |
|
|
|
ICR08200 |
3.7 |
80 |
75 |
8.4 |
22 |
2.9 |
|
ICR08600 |
3.7 |
300 |
280 |
8.4 |
60.5 |
9 |
|
ICR10120 |
3.7 |
50 |
45 |
10.2 |
11.2 |
2.4 |
|
ICR10220 |
3.7 |
120 |
110 |
10.2 |
22.3 |
5 |
|
ICR10430 |
3.7 |
320 |
300 |
10.2 |
42.5 |
9 |
|
ICR10440 |
3.7 |
320 |
300 |
10.2 |
43.5 |
9 |
|
ICR14430 |
3.7 |
650 |
620 |
14.1 |
43 |
16 |
|
ICR14250 |
3.7 |
250 |
230 |
14.1 |
23 |
10 |
|
ICR14270 |
3.7 |
310 |
290 |
14.1 |
27 |
11 |
|
ICR14500 |
3.7 |
750 |
720 |
14.1 |
50 |
18 |
|
ICR14650 |
3.7 |
1100 |
1050 |
14.1 |
65 |
24 |
|
ICR17280 |
3.7 |
600 |
550 |
16.5 |
28 |
15 |
|
ICR17335 |
3.7 |
700 |
650 |
16.8 |
34.5 |
18 |
|
ICR17500 |
3.7 |
1100 |
1050 |
16.8 |
50 |
27 |
|
ICR17650 |
3.7 |
1600 |
1500 |
16.8 |
65 |
36 |
|
ICR18490 |
3.7 |
1400 |
1350 |
18.3 |
49 |
33 |
|
ICR18650 |
3.7 |
1900 |
1850 |
18.3 |
64.5 |
43 |
|
ICR18650 |
3.7 |
2000 |
1950 |
18.3 |
64.5 |
43 |
|
ICR18650 |
3.7 |
2200 |
2150 |
18.3 |
64.5 |
45 |
|
ICR18650P |
3.7 |
1500 |
1450 |
18.3 |
64.5 |
33 |
|
ICR18650 |
3.7 |
2600 |
2550 |
18.3 |
65.5 |
62
|
Trade terms
Certificate
FAQ:
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: 2. What is the lead time?
A:Sample needs 7-10days, mass production time needs 25-30days.
Q: 3. Do you have any MOQ limit?
A: Our MOQ EXW is 10 pcs; MOQ FOB is 100pcs.(Depends on different type battery/battery pack)
Q: 4. How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
Q: 5. How to proceed the order when customer order products?
A: Inquiry-Confirmation-Send Proforma Invoice-Customer make this payment-Arrange production-ship to
customers-Confirmation-Finish.
Q: 6. How to make this payment?
A: TT, LC , Paypal, Western Union.
Q: 7. Do you offer guarantee for the products?
A: Yes, we offer one year guarantee for the products.
Q: 8. Do you accept OEM/ODM?
A: Yes, it’s available.
