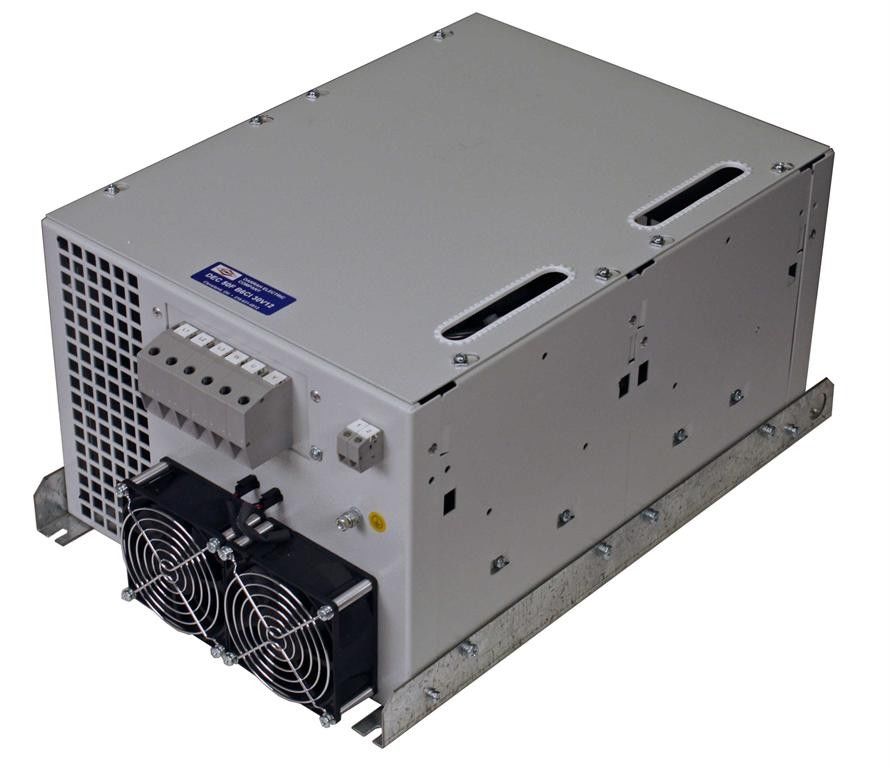

400W 12VDC to 100VAC Off Grid Solar Power Inverter
400W 12VDC to 100VAC Off Grid Solar Power Inverter
Products Feature | ||||||
High Transform efficiency, fast start; | ||||||
Pure sine wave output waveform; | ||||||
Softstart function; | ||||||
Strong adaptability and stability; | ||||||
With automatic over-current and output short circuit protection to avoid damage the equipment; | ||||||
Safe and reliable with built in fuse; | ||||||
Function Details | ||||||
Model | TEP-400-121 | TEP-400-241 | TEP-400-481 | TEP-400-122 | TEP-400-242 | TEP-400-482 |
Rated Power | 400W | 400W | 400W | 400W | 400W | 400W |
Max. Instantaneous Power | 800W | 800W | 800W | 800W | 800W | 800W |
DC input voltage | 12V | 24V | 48V | 12V | 24V | 48V |
AC output voltage | 100V/110V/120AC | 220V/230V/240VAC | ||||
No-load current | 0.5A | 0.25A | 0.12A | 0.5A | 0.25A | 0.12A |
AC output frequency | 50Hz/60HZ | |||||
AC output waveform | Pure Sine Wave | |||||
Waveform distortion | THD<;2%(Linear load) | |||||
Efficiency | >88% | >90% | >92% | >88% | >90% | >92% |
DC input voltage range | 10.5-15V | 21-30V | 42-60V | 10.5-15V | 21-30V | 42-60V |
Low Voltage Alarm | 10.5+/-0.3V | 21+/-0.3V | 42+/-0.3V | 10.5+/-0.3V | 21+/-0.3V | 42+/-0.3V |
Low Voltage Shutdown | 10+/-0.3V | 20+/-0.3V | 40+/-0.3V | 10+/-0.3V | 20+/-0.3V | 40+/-0.3V |
Over Voltage Protection | 15.5+/-0.5V | 31+/-1V | 62+/-2V | 15.5+/-0.5V | 31+/-1V | 62+/-2V |
Low Voltage Recovery | 12+/-0.5V | 24+/-1V | 48+/-2V | 12+/-0.5V | 24+/-1V | 48+/-2V |
Over Voltage Recovery | 14.8V | 29.5V | 59V | 14.8V | 29.5V | 59V |
Protective Function | Low/Over voltage: LED Red light, automatic recovery | |||||
Over load: LED Red light, automatic recovery | ||||||
Over temperature : LED Red light, automatic recovery | ||||||
Short circuit: LED Red light, automatic recovery | ||||||
Input reverse connection: Fuse burn-out | ||||||
Working Temp. | –5°C—60°C | |||||
Storage Temp. Humidity | -30°C-70°C | |||||
Dimension | 180*140*80mm | |||||
Weight | 2kg |
