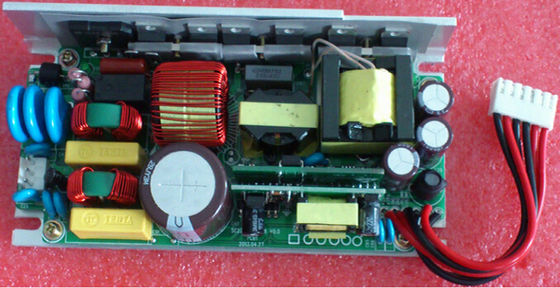

AC-DC Power Supplies 224W Output 28V SC224-220S28



Key Features

AC input range: 140~300Vac

Single outputs: 28V/8A

High efficiency: 88%

Line regulation: ≤±3%

Load regulation: ≤±3%

Low ripple&noise: ≤150mV

Power factor: 95%

short circuit protection

Output over current protection

Output over voltage protection

Input over voltage protection

Input under voltage lock-out

AC operation signal

Natural cool

RoHS compliant

UL94V-0 flame-retarded rating



Product Overview

This AC-DC converter use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency switching provides high power density with low noise and high efficiency.



Electric Characteristics

Input Characteristics

Parameter

Min

Typ

Max

Units

Notes

Rated input voltage

200

220

240

Vac



AC input voltage range

140



300

Vac



Rated AC input frequency



50/60



Hz



AC input frequency range

47



63

Hz



Max. input current





2.5

A

Min. input voltage, full load

Input inrush current





30

A

Max. input voltage,25℃, first start

Efficiency

AC input



88



%

Rated input voltage, rated load

Power factor

95





%







Output Characteristics

Parameter

Min

Typ

Max

Units

Notes

Output voltage range

28V

27.5

28

28.5

Vdc



Output current range

28V

0



8

A



Line Regulation





±3

%



Load Regulation





±3

%



Temperature Regulation



±0.02



% / °C

Over operating temperature range

Ripple & noise

28V





150

mV

Rated input, full load, 20 MHz bandwidth

Dynamic response

Deviation





±5

%

25% to 50% to 25% Iout max, 50% to 75% to 50% Iout max, 1A/us

Settling time





500

uS

Turn-on rise time





50

ms

Full load,10%~90% Vout

Turn-on delay time





8

s

220Vac, Full load

Output voltage overshoot





±5

%



Output Capacitance





3000

μF





Protection Characteristics

Parameter

Min

Typ

Max

Units

Notes

Input under voltage lock out

Turn-on voltage threshold

130



145

Vac



Turn-off voltage threshold

115



130

Vac



Input over voltage protection

Protect voltage

300



320

Vac



Recovery voltage

280



300

Vac



Output over voltage protection

32



35

Vdc

Hiccup

Output over load protection

9



12

A

Hiccup

Short – Circuit Protection





10

Hiccup



General Characteristics

Parameter

Min

Typ

Max

Units

Notes

MTBF

250





KHrs

Rated input, full load,25℃

Weight





1000

g





Environmental Characteristics

Parameter

Min

Typ

Max

Units

Notes

Operating temperature

-40



+85



Storage temperature

-40



+85



Relative humidity

10



95

%



Storage humidity

105



93

%



Altitude





3000

m



Atmospheric pressure

70K



106K

Pa





Safety Characteristics

Parameter

Min

Typ

Max

Units

Notes

Isolation voltage

Input to output

1500





Vac

10mA/1min, No arcing and breakdown

Input to ground

1500





Vac

Output to ground

500





Vdc

10mA/1min, No arcing and breakdown

Isolation resistance

Input to output

10





500Vdc/1min, normal atmospheric pressure, 90% humidity

Input to ground

10





Output to ground

10







Signal and Switch

Item

Functions

Notes

Output under voltage alarm

Output under voltage alarm turns to logic high(5V±0.2V) when output voltage drop to 90%

Logic high when abnormal condition,

Logic low when operating well

Input signal

Light on when operating well, light off when operating abnormal

Φ3 green light

Output signal

Light on when operating well, light off or blink when operating abnormal

Φ3 green light



EMC Characteristics

Item

Standards

Conditions

Notes

CE

EN55022

Class B

Pass system test

RE

EN55022

Class B

Pass system test

Harmonic

EN61000-3-2

C type lamps requirements

Criterion B

Voltage fluctuations and flicker

EN61000-3-3

Class A equipments requirements

Criterion B

Surge

EN61000-4-5

Differential mode ±2KV,common mode±4KV

Criterion B

DIP

EN61000-4-11

EN55024

Voltage dip to 0%Ut,10ms

Criterion B, test at phase 0, 90, 180 and 270

Voltage dip to 40%Ut, 20ms

Voltage dip to 70%Ut,50ms

ESD

Air discharge

EN61000-4-2

±8KV

Criterion B

Contact discharge

EN61000-4-2

±4KV

Criterion B

Notes:

Criterion A: Normal performance during and after test.

Criterion B: Low-voltage protection or reset is not allowed. Temporary output voltage fluctuation ceases after disturbances ceases, and from which the EUT recovers its normal performance automatically. During the system test, output voltage fluctuation or reset is not allowed too.

Criterion C: Temporary loss of output is allowed, but the hardware can’t be damaged. The EUT recovers its normal performance automatically or operator intervention.

Criterion R: Loss of output which is not recoverable is allowed. The primary protective component (fuse) can be damaged. The EUT recovers its normal performance after replace the damaged component.



Environmental Qualification

Parameter

Notes

Vibration

Frequency range: 5-20Hz,+3dB/otc; 20-80Hz,0.04g2/Hz; 80-500Hz, -3dB/ot c ; X.Y.Z axes, 30min/axis

Mechanical Shock

Half-sine wave, 300m/s2,11ms, ±X,±Y,±Z, 6tims/direction



Standards compliance

Standards

Notes

UL/UL60950



EN60950





Physical Information

Mechanical Outline

Length×width×heigth:127.0×84.5×35.0(mm), 5×3.33×1.38(inch),

224W Output 28V AC-DC converter Power Supply with over voltage protection SC224-220S28



Connector designations

Input connector: VH3.96mm-3PIN

Pin No.

Name

Function

1

L



2

N



3

PE





Output connector: VH3.96mm-6PIN, fast back,

Output wires: UL1015 18#, 105℃, 600V

Pin No.

Name

Function

1

+28V

Red

2

+28V

Red

3

GND

Black

4

GND

Black

5

LOS_PWR+

Output under voltage alarm positive (red)

6

LOS_PWR-

Output under voltage alarm positive (black)
