RT series Online HF UPS 1-3kva with output PF0.9 ,120Vac 60Hz

China RT series Online HF UPS 1-3kva with output PF0.9 ,120Vac 60Hz supplier
RT series Online HF UPS 1-3kva with output PF0.9 ,120Vac 60Hz supplier RT series Online HF UPS 1-3kva with output PF0.9 ,120Vac 60Hz supplier RT series Online HF UPS 1-3kva with output PF0.9 ,120Vac 60Hz supplier

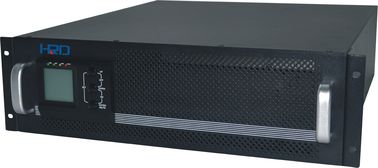

Large Image :  RT series Online HF UPS 1-3kva with output PF0.9 ,120Vac 60Hz

Product Details:

Place of Origin: Shenzhen China
Brand Name: HRD/ OEM/ ODM
Certification: CE ,ISO9001
Model Number: RT01, RT02,RT03

Payment & Shipping Terms:

Minimum Order Quantity: 50PCS
Price: 180- 380USD/PCS;
Packaging Details: 1PCS/ CTN
Delivery Time: Within 4 weeks
Payment Terms: TT or LC at sight
Supply Ability: 20000pcs/month
Warranty: 18months after shipment
Contact Now
Detailed Product Description

RT Series Online HF UPS 1-3KVA, 110/120/127VAC
1:1 Phase Output PF: 0.9

RT series Online HF UPS 1-3kva with output PF0.9 ,120Vac 60HzRT series Online HF UPS 1-3kva with output PF0.9 ,120Vac 60Hz















Application:PC, workstation, network center, SOHO, server, industry equipment, medical equipment or other critical system.
Features:

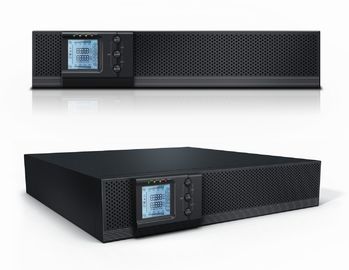

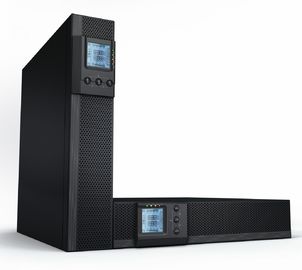

Rack-Tower convertible
Two directions LCD display,gravity sensor
Online-Double conversion (PFC)
Full digital control (DSP)
Output power factor: 0.9
Economic Operation Mode (ECO)
Wide input voltage range
Self-testing when UPS startup

Emgergency Power Off(EPO)
Cold Start (DC)
Comprehensive protection for the total unit
Multifunctional LCD screen, setting output voltage, bypass etc…
Input neutral and live wires reverse detection
Optimized battery configuration: 1K-24V,2K-48/72V,3K-48/72/96V
Diverse options of accessories, intelligent management
Standard interface : USB ;SNMP /Dry contact Board optional
Specification



Model

RT01

RT02

RT03

Capacity

  Kva/Kw

1Kva/0.9W

2Kva/1.8Kw

3Kva/2.7Kw













Input





Voltage

Low transfer

85Vac± 3% (Ph-N) @100% load , 65Vac± 3% (Ph-N) @50% load

Low back

95Vac(Ph-N) @ 100% load ; 75Vac (Ph-N) @50% load

High transfer

110/120/127Vac:155V± 3%

High back

110/120/127Vac:142Vac± 3%

Frequency range

50Hz/60Hz +/-4Hz(auto-detect)

phase

1:1phase ,L+N+G

Current THDI

<6%(100%nonlinear load)

Power Factor

≥0.99

Generate Input

Support

breaker

7A

16A

25A

ECO range

 108-132Vac

Bypass voltage range

 102-138Vac

Current harmonic

≦3%(100% non-linear load)













Output





Voltage

110/120/127(1-3Kva)

Power Factor

0.9 (0.8 optional)

Voltage regulation

± 2%

Frequency(Line Model)

50Hz/60Hz +/-4Hz

Frequency(Batt Model)

50/60Hz ± 0.02Hz

Current Crest Ratio

3:1

Harmonic Distortion

≤3% THD(Liner Load)

≤5% THD(Non-Liner Load)

Output waveform

Pure Sine wave

Outlet

Sockets(Optional)

Overload Capacity

105%<load<125% for 1 mins ,125%<load<150% for30sec



Efficiency

AC Mode

Full Load≥89%

Battery Mode

Full Load≥86%

ECO Mode

Full Load≥95%











Battery

Number of Battery

2/3

4/6/8

4/6/8

Battery Type

Sealed, lead-acid, maintenance-free

standard model: 12V/7AH OR 9AH inbuilt

long run model: battery external, capacity optional

Back Time

Standard unit: 5-12mins;

Long-run unit:

depends on external battery

Standard unit: 8-18mins;

Long-run unit:

depends on external battery

Standard unit:5-12mins;

Long-run unit:

depends on external battery

Recharge Time(to 90%)

5 Hours

5 Hours

5 Hours

Charge Current(standard unit)

1.0A

1.0A

1.0A

Charge Current(long run unit)

7.0A

7.0A

7.0A
