Rack Mount Online hf ups 1-3KVA 220VAC

China Rack Mount Online hf ups 1-3KVA 220VAC supplier
Rack Mount Online hf ups 1-3KVA 220VAC supplier Rack Mount Online hf ups 1-3KVA 220VAC supplier Rack Mount Online hf ups 1-3KVA 220VAC supplier Rack Mount Online hf ups 1-3KVA 220VAC supplier

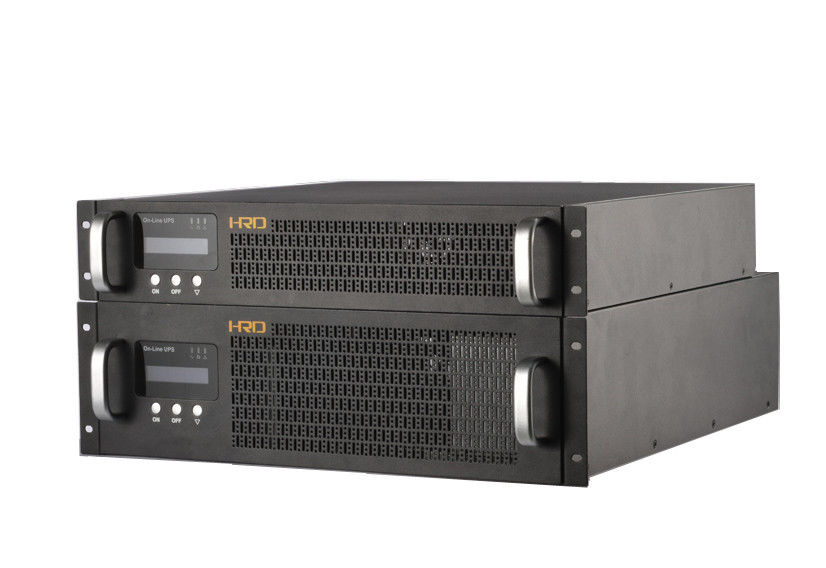

Large Image :  Rack Mount Online hf ups 1-3KVA 220VAC

Product Details:

Place of Origin: Shenzhen ,China
Brand Name: OEM/HRD
Certification: CE
Model Number: PMR1000VA-3000VA

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: 100-2000USD
Packaging Details: STANDADARD PACKING
Delivery Time: 15-20DAYS
Payment Terms: TT OR L/C
Supply Ability: 200PCS/DAY
Price Tearm: FOB SHENZHEN
warranty: 18 months after shipment with 10 years support
Contact Now
Detailed Product Description

Main Features:
19inch,2U and 3U Rack mount
High frewuency and online double conversion
Wide input voltage (110-285Vac or 65-148Vac)
Self-diagnosis system at ups start
Digital control technoloy and advanced PFC
Output PF0.8,(0.9 optional)
Lighting and surge protection 1050j
Generator compatible
Smart RS232(USB,SNMP OPTIONAL)
EMI/RFI noise filter
Overview
With true double-conversion design, PowerMaster series provides powerful and overall protection to your sensitive devices. It can accept wider input voltage for harsh environment. It's perfect protection for your precisous servers and workstaiosn.
Specifications
Model PMR01S PMR01L PMR02S PMR02L  PMR03S PMR03L
Capacity 1KVA/0.8kW 1KVA/0.8kW 2KVA/1.6kW 2KVA/1.6kW 3KVA/2.4kW 3KVA/2.4kW
Phase Single
Input voltage
Input PF above 0.98
THDi less than 5%
Rated voltage 220v/230v/240Vac or 110/120/127Vac
Input voltage range Low line  transfer:176 VAC ± 3% @ 100% load
130 VAC ± 3% @ 50% load
85-148Vac( for 110/120/127Vac)
Low line comback:188VAC ± 3% @ 100% load
142 VAC ± 3% @ 50% load;
100vac±5Vac(110/120/127Vac)
High Line Transfer:286 ± 3%148Vac ± 3%(for 110/120/120vac);
High Line Come Back:271 ± 3%;
145Vac±5Vac(110/120/127Vac)
Rated frequency 50/60hz(auto sensing)
Input frequency range 46~54 Hz ◎ 50 Hz / 56~64 Hz ◎ 60 Hz
By-pass input
Input voltage range 170VAC—270VAC±5V
Frequency following range 46~54 Hz ◎ 50 Hz / 56~64 Hz ◎ 60 Hz
Recharge battery
Floating charge voltage 28/41VDC 55/84/110VDC 84/110VDC
Recharging current 1A(inbuilt battery) 8A 1A(Rack batt.case) 8A 1A(Rack batt.case) 8A
Battery
Battery quantity 24/36VDC 48V/72/96VDC 72/96VDC
AC output
Power factor 0.8
Phase single
Rated voltage 220v/230v/240v+/-1.5%
Frequency 50/60hz
Frequency stability ±0.1HZ(battery inverter)
Voltage stability within±1.5%( Static)
  Crest factor 3:1(max)
Wave distortion Linear load less 3%,Non-linear load less 5%;
Over load ability 30s when overload is 108%~150%;200ms above 150%;
Transfer time 0ms
Alarm
AC abnomal Alarm every 4 seconds
Battery low voltage Keep alarm every 1 second
Overload Keep alarm every 0.5 second
Failure Keep alarm
System
Efficiency above 87%

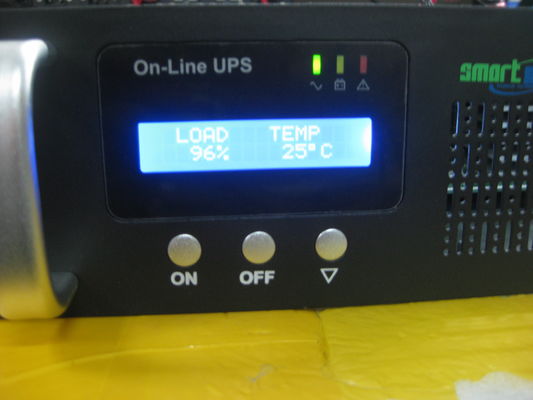

Display LCD+LED
Protection Output short circuit , Overload , Output low voltage, Battery low voltage,                 Over-temperature etc.
 over-voltage protection,over-tempreture protection for charger PCB,and soft-start function for each function module.
Infterface RS232(USB OPTIONAL)
Working Temp. 0~40℃
Relative humidity 0~90%( No coagulation)
Cooling Intelligent speed-control Fan
Input & output  Socket(Optional)
Others
Surge protection IEC60664—1 Graded protection
EMI EN 55022  Grade A
ESD IEC 1000-4-2:Grade 3
EFT IEC 1000-4-4:Grade 3
RS IEC 1000-4-3:Grade 3
SURGE IEC 1000-4-5:Grade 3
Physical
Weight(N/G)kgs 12.5/14.5 7.0/8.0 11.0/13.0 28.0/31.0 11.0/13.0 28.0/31.0
Unit Size
(D*W*H)
440* 440 *87 mm 440* 440 *87 mm(long run model)
440* 440 *134 mm( inbuilt battery model)
Packing Size
(D*W*H)
570*570*185mm 570*570*185mm(long run model),2U
640*570 *230mm( inbuilt battery model),3U
