| Type: | Rack Mount Online | Output Power Factor: | 0.8 |
|---|---|---|---|
| Phase: | Single Phase | Protection: | Over Load/Current/Voltage, Short Circuit Etc |
| Display: | Digital LCD Display | H.S. Code: | 8504402000 |
| High Light: | rack mounted ups systems,uninterruptible power supply rack mount |
||

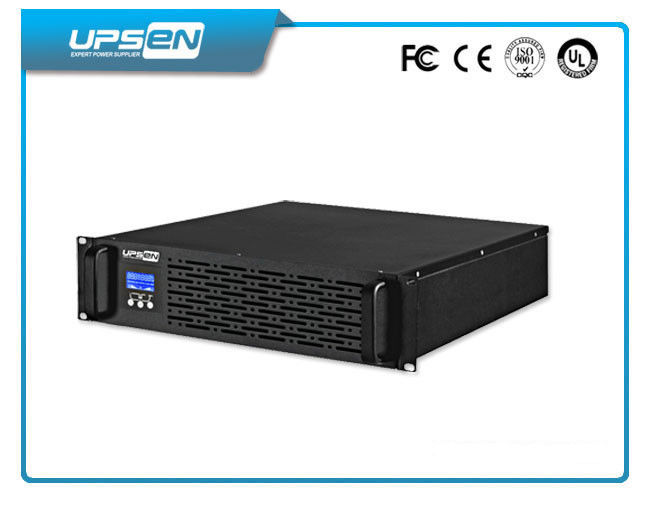

High Frequency Online PFC Rack Mountable UPS 1KVA / 2KVA / 3KVA With RS232 Interface
1: Rack UPS with true double conversion tech
2: Rack UPS with voltage breakthrough protection and strong anti-interference function.
3: Rack UPS with 1/1 Phase 220Vac / 230Vac / 240Vac 50Hz / 60Hz input and output
4: Made in China UPSEN Factory with CE Certificate
5: Model: High Frequency Online UPS Rack Mount Star Series RM 1K-10KVA(1Ph in/1Ph out)
Key Features:
Online double conversion

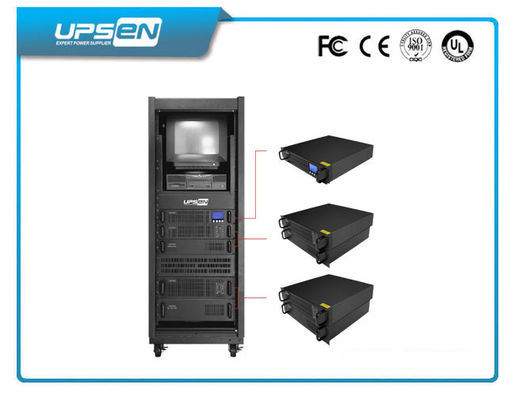

Rack mount 19”design 2U/3U/5U/6U Height to save space
Digital LCD & LED Display for UPS status and 0.8 output power factor
High input power factor
Wide input voltage range
Compact and light weight
High reliability and performance
Full protection function
Automatic bypass
Smart RS232, USB, RJ11, RJ45 communication with monitoring software
UPS management software (optional)
External SNMP or USB or Dry contacts (optional)
External battery bank (optional)
Applications
RM Series 1KVA~10KVA High Frequency Rack Mount Online UPS is specially designed for servers, data-center critical network devices, sensitive electronic equipment, telecom, bank, hospital, bureau, traffic, public security, ATM and so on.
Technical Specification
| Rack Mount Star Series RM1K-10K | |||||||||
| Model | RM1K | RM2K | RM3K | RM1KL | RM2KL | RM3KL | RM6KL | RM10KL | |
| Input | Phase | Single Phase with Ground | |||||||
| Nominal Voltage | 110115//120Vac or 220/230/240Vac | 220/230/240Vac | |||||||
| Voltage Range | 60-138VAC or 115 ~ 300VAC | 176 ~ 276VAC | |||||||
| Frequency Range | 46 ~ 54Hz(default), user adjustable within 40~60Hz | 46 ~ 54Hz | |||||||
| Power Factor | 0.97 | 0.98 | |||||||
| Connection | IEC320-10A inlet | IEC320-16A inlet | IEC320-10A inlet | IEC320-16A inlet | Terminal Block | ||||
| Output | Phase | Single Phase | |||||||
| Voltage | 110/115/120Vac or 220/230/240VAC ± 2% | 110/115/120Vac or 220/230/240VAC± 1% | |||||||
| Frequency | 46~54Hz or 50Hz ± 0.2Hz (Line mode) | 46~54Hz (Line mode) | |||||||
| 50Hz ± 0.2Hz ( Battery mode) | 50Hz ± 0.05Hz ( Battery mode) | ||||||||
| Waveform | Pure Sine Wave | ||||||||
| Power Factor | 0.7/0.8 Optional | ||||||||
| Overload Capability | 108%~150% for 30 sec., 150% for 300 ms |
105%~130% for 10 min., 130% for 1 min. |
|||||||
| Current Crest Ratio | 3:1 | ||||||||
| Connections | IEC320 -10A * 4 |
IEC320-10A and Terminal Block |
IEC320 -10A * 4 |
IEC320-10A and Terminal Block |
IEC320-10A * 4 and Terminal Block |
||||
| Bypass | Automatic Transfer | on overload and UPS failure | |||||||
| Before UPS Power-on | Default “NO”, user adjustable to “YES” | Yes | |||||||
| Voltage Range | 80~264VAC (Default), user adjustable within 80~286VAC | 176 ~ 261VAC | |||||||
| Transfer Time | 0 ms; less than 4 ms from inverter to bypass and vice versa | Zero | |||||||
| LED /LCD indicators |
Load level / Battery level, Battery , Utility Power, Inverter, Bypass, Overload, Fault |
||||||||
| Audible Alarm | Bypass, On battery mode, Battery low, Overload, Fault | ||||||||
| Communications | RS-232 Serial Interface | ||||||||
| Intelligent Slot; | |||||||||
|
OPTIONS: WEBPOWER SNMP/WEB card, AS400 card or WinPower CMC) |
|||||||||
| Network Surge Protection | RJ45 I/O port available for network or Fax/Modem | ||||||||
| Environmental | Operating Temperature | 0 ~ 40°C | |||||||
| Operating Humidity | 20 ~ 90% non-condensing | ||||||||
| Main Unit | Net Weight (Kg) | 16.3 | 10.3 | 11.2 | 9.1 | 11.5 | 12.3 | 18.3 | 20.3 |
| Dimensions (W x D x H) mm | 482 x 420 x 88 (2U) |
482 x 420 x 88 (2U) or (3U Internal Batteries) |
482 x 420 x 88 (2U) | 482.6 x 600 x 130 (3U) | |||||
| Battery Pack | Type | Internal Batteries | External Battery Pack | ||||||
| Nominal DC Voltage | 24/36VDC | 48/72VDC | 72/96VDC | 24/36VDC | 48/72VDC | 72/96VDC | 192/240VDC | ||
|
Battery Numbers & Capacity |
2/3Pcs *12V7.2Ah | 4/6Pcs *12V7.2Ah | 6/8Pcs *12V7.2Ah |
Depending on the capacity of external battery packs |
|||||
| Backup Time (Full load) | 5 min | 7min (with 1 BP) | 5 min (with 1 BP) | ||||||
| Recharge Time | 5hrs to 90% | 5hrs to 90% | 5hrs to 90% | ||||||
| Charging Current (Max.) | 1.0A | 1.0A | 1.0A | 8A±1A | 4.2A | ||||
| Charging Voltage | 41.1Vdc±0.6V | 110Vdc±0.4V | 41.1Vdc±0.6V | 110Vdc±0.4V | 274Vdc±1%V | ||||
| Net Weight (Kg) | --- | 25.3 | 25.3 | --- | --- | --- | --- | ||
| Dimensions (W x D x H) mm | --- | 482 x 420 x88 (2U) | 482 x 420 x88 (2U) | --- | --- | --- | --- | ||
Competitive Advantages:
1:Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3:Good after-sales service, we will be full responsible for any faults caused by our side
4:Professional experience in power field more than 10 years
5:Professional technical support before and after sales
6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
7: Free OEM & ODM Service
8: Competitive price, quality and mature products
