LCD Display Online 1000Va 2000Va 3000Va Rack Mountable UPS with 220Vac 50Hz

LCD Display Online 1000Va 2000Va 3000Va Rack Mountable UPS with 220Vac 50Hz
LCD Display Online 1000Va 2000Va 3000Va Rack Mountable UPS with 220Vac 50Hz LCD Display Online 1000Va 2000Va 3000Va Rack Mountable UPS with 220Vac 50Hz

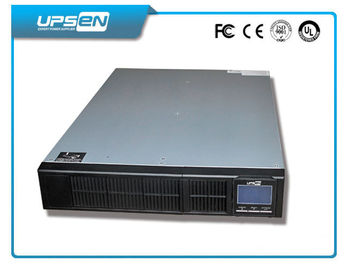

Large Image :  LCD Display Online 1000Va 2000Va 3000Va Rack Mountable UPS with 220Vac 50Hz

Product Details:
Place of Origin: China
Brand Name: UPSEN
Certification: CE, ISO, RoHS
Model Number: Rack Mount Star Series 1-10Kva
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: Cartons & Wooden Pallet
Delivery Time: 7-15 Days
Payment Terms: T/T, LC, WU, Money Gram etc
Supply Ability: 50,000pcs/Month
Detailed Product Description
Type: Rack Mount Online Output Power Factor: 0.8
Phase: Single Phase Protection: Over Load/Current/Voltage, Short Circuit Etc
Display: Digital LCD Display H.S. Code: 8504402000
High Light:

uninterruptible power supply rack mount

,

energy saving UPS



LCD Display Online 1000Va 2000Va 3000Va Rack Mountable UPS with 220Vac 50Hz

Model: High Frequency Online UPS Rack Mount Star Series RM 1K-10KVA(1Ph in/1Ph out)



Quick Read



1: Rack Mounted UPS with full protection Protection against over voltage, over load, over current, over charge etc.

2: UPS with Network / Fax/ Modem surge protection

3: Smart RS232, USB, RJ11, RJ45 communication with monitoring software

4: 19 Inch 2U 3U Height design

5: UPS Power with DSP and IGBT Tech

6: Rack Mountable UPS with Pure sine wave output waveform



Key Features:


1: True online double conversion technology with advanced Microprocessor Control
2: PWM Technology with IGBT
3: LED/LCD Indicators display Detailed Real-Time UPS Status and parameters.
4: Set Output Voltage, Frequency parameter and bypass function on the display.
5: Advanced MCU microprocessor control technology, ensure long life reliability.
6: Wide input voltage range, Zero transfer time
7: Rack mount 19”design to save space
8: Excellent Protection against over voltage, over load, over current, over charge and so on.
9: Input L and N lines reverse wiring detection, Auto start when AC back.
10: DC start function, Input PFC revise function.
11: Humanization bypass output, can be adjustable.
12: Smart RS232 communication with monitoring software
13: Intelligent slot available for AS-400 Dry contact and SNMP card Remote control
14: Strong antijamming capability
15: Available to work with generators.
16: Lightning, surge, short circuit, Network/fax/modem surge protection



Applications


RM Series 1KVA~10KVA High Frequency Rack Mount Online UPS is specially designed for servers, data-center critical network devices, sensitive electronic equipment, telecom, bank, hospital, bureau, traffic, public security, ATM and so on.



Technical Specification



Rack Mount Star Series RM1K-10K
Model RM1K RM2K RM3K RM1KL RM2KL RM3KL RM6KL RM10KL
Input Phase Single Phase with Ground
Nominal Voltage 110/115//120Vac or 220/230/240Vac 220/230/240Vac
Voltage Range 60-138VAC  or 115 ~ 300VAC 176 ~ 276VAC
Frequency Range 46 ~ 54Hz(default), user adjustable within 40~60Hz 46 ~ 54Hz
Power Factor 0.97 0.98
Connection IEC320-10A inlet IEC320-16A inlet IEC320-10A inlet IEC320-16A inlet Terminal Block
Output Phase Single Phase
Voltage 110/115/120Vac or 220/230/240VAC ± 2% 110/115/120Vac or 220/230/240VAC± 1%
Frequency 46~54Hz or 50Hz ± 0.2Hz (Line mode) 46~54Hz (Line mode)
50Hz ± 0.2Hz ( Battery mode) 50Hz ± 0.05Hz ( Battery mode)
Waveform Pure Sine Wave
Power Factor 0.7/0.8 Optional
Overload Capability 108%~150% for 30 sec., 150% for 300 ms

105%~130% for 10 min.,

130% for 1 min.

Current Crest Ratio 3:1
Connections IEC320 -10A * 4

IEC320-10A and

Terminal Block

IEC320 -10A * 4

IEC320-10A and

Terminal Block

IEC320-10A * 4 and

Terminal Block

Bypass Automatic Transfer on overload and UPS failure
Before UPS Power-on Default “NO”, user adjustable to “YES” Yes
Voltage Range  80~264VAC (Default), user adjustable within 80~286VAC 176 ~ 261VAC
Transfer Time 0 ms; less than 4 ms from inverter to bypass and vice versa Zero
LED /LCD indicators

Load level / Battery level, Battery , Utility Power,

Inverter, Bypass, Overload, Fault

Audible Alarm Bypass, On battery mode, Battery low, Overload, Fault
Communications RS-232 Serial Interface
Intelligent Slot;

OPTIONS:  WEBPOWER SNMP/WEB card,

AS400 card or WinPower CMC)

Network Surge Protection RJ45 I/O port available for network or Fax/Modem
Environmental Operating Temperature 0 ~ 40°C
Operating Humidity 20 ~ 90% non-condensing
Main Unit Net Weight (Kg) 16.3 10.3 11.2 9.1 11.5 12.3 18.3 20.3
Dimensions (W x D x H) mm 482 x 420 x 88 (2U)

482 x 420 x 88 (2U) or

(3U Internal Batteries)

482 x 420 x 88 (2U) 482.6 x 600 x 130 (3U)
Battery Pack Type Internal Batteries External Battery Pack
Nominal DC Voltage 24/36VDC 48/72VDC 72/96VDC 24/36VDC 48/72VDC 72/96VDC 192/240VDC

Battery Numbers

 & Capacity

2/3Pcs *12V7.2Ah 4/6Pcs *12V7.2Ah 6/8Pcs *12V7.2Ah

Depending on the capacity of

external battery packs

Backup Time (Full load)      5 min 7min (with 1 BP) 5 min (with 1 BP)
Recharge Time 5hrs to 90% 5hrs to 90% 5hrs to 90%
Charging Current (Max.) 1.0A 1.0A 1.0A 8A±1A 4.2A
Charging Voltage 41.1Vdc±0.6V 110Vdc±0.4V 41.1Vdc±0.6V 110Vdc±0.4V 274Vdc±1%V
Net Weight (Kg)  --- 25.3 25.3 --- --- --- ---
Dimensions  (W x D x H) mm  --- 482 x 420 x88 (2U) 482 x 420 x88 (2U)  --- --- ---  ---





Competitive Advantages:


1:Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3:Good after-sales service, we will be full responsible for any faults caused by our side
4:Professional experience in power field more than 10 years
5:Professional technical support before and after sales

6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.

7: Free OEM & ODM Service

8: Competitive price, quality and mature products

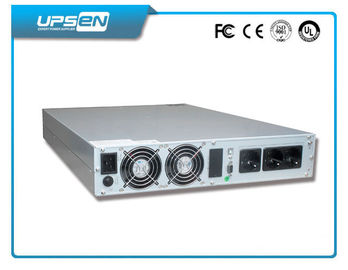

LCD Display Online 1000Va 2000Va 3000Va Rack Mountable UPS with 220Vac 50Hz 0LCD Display Online 1000Va 2000Va 3000Va Rack Mountable UPS with 220Vac 50Hz 1
