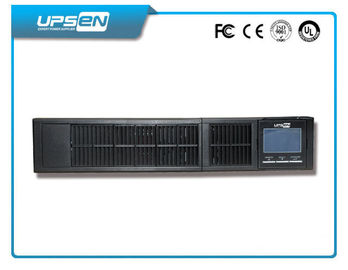

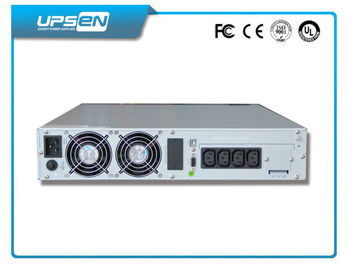

Single Phase 1Kva - 10Kva High Frequency Rack Mountable UPS with Digital LCD Screen

Rack Mount Star Series RM1K-10K

Model

RM1K

RM2K

RM3K

RM1KL

RM2KL

RM3KL

RM6KL

RM10KL

Input

Phase

Single Phase with Ground

Nominal Voltage

110115//120Vac or 220/230/240Vac

220/230/240Vac

Voltage Range

60-138VAC  or 115 ~ 300VAC

176 ~ 276VAC

Frequency Range

46 ~ 54Hz(default), user adjustable within 40~60Hz

46 ~ 54Hz

Power Factor

0.97

0.98

Connection

IEC320-10A inlet

IEC320-16A inlet

IEC320-10A inlet

IEC320-16A inlet

Terminal Block

Output

Phase

Single Phase

Voltage

110/115/120Vac or 220/230/240VAC ± 2%

110/115/120Vac or 220/230/240VAC± 1%

Frequency

46~54Hz or 50Hz ± 0.2Hz (Line mode)

46~54Hz (Line mode)

50Hz ± 0.2Hz ( Battery mode)

50Hz ± 0.05Hz ( Battery mode)

Waveform

Pure Sine Wave

Power Factor

0.7/0.8 Optional

Overload Capability

108%~150% for 30 sec., 150% for 300 ms

105%~130% for 10 min.,

130% for 1 min.

Current Crest Ratio

3:01

Connections

IEC320 -10A * 4

IEC320-10A and

IEC320 -10A * 4

IEC320-10A and

IEC320-10A * 4 and

Terminal Block

Terminal Block

Terminal Block

Bypass

Automatic Transfer

on overload and UPS failure

Before UPS Power-on

Default “NO”, user adjustable to “YES”

Yes

Voltage Range

80~264VAC (Default), user adjustable within 80~286VAC

176 ~ 261VAC

Transfer Time

0 ms; less than 4 ms from inverter to bypass and vice versa

Zero

LED /LCD indicators

Load level / Battery level, Battery , Utility Power,

Inverter, Bypass, Overload, Fault

Audible Alarm

Bypass, On battery mode, Battery low, Overload, Fault

Communications

RS-232 Serial Interface

Intelligent Slot;

OPTIONS:  WEBPOWER SNMP/WEB card,

AS400 card or WinPower CMC)

Network Surge Protection

RJ45 I/O port available for network or Fax/Modem

Environmental

Operating Temperature

0 ~ 40°C

Operating Humidity

20 ~ 90% non-condensing

Main Unit

Net Weight (Kg)

16.3

10.3

11.2

9.1

11.5

12.3

18.3

20.3

Dimensions (W x D x H) mm

482 x 420 x 88 (2U)

482 x 420 x 88 (2U) or

482 x 420 x 88 (2U)

482.6 x 600 x 130 (3U)

(3U Internal Batteries)

Battery Pack

Type

Internal Batteries

External Battery Pack

Nominal DC Voltage

24/36VDC

48/72VDC

72/96VDC

24/36VDC

48/72VDC

72/96VDC

192/240VDC

Battery Numbers

2/3Pcs *12V7.2Ah

4/6Pcs *12V7.2Ah

6/8Pcs *12V7.2Ah

Depending on the capacity of

 & Capacity

external battery packs

Backup Time (Full load)

     5 min

7min (with 1 BP)

5 min (with 1 BP)

Recharge Time

5hrs to 90%

5hrs to 90%

5hrs to 90%

Charging Current (Max.)

1.0A

1.0A

1.0A

8A±1A

4.2A

Charging Voltage

41.1Vdc±0.6V

110Vdc±0.4V

41.1Vdc±0.6V

110Vdc±0.4V

274Vdc±1%V

Net Weight (Kg)

 ---

25.3

25.3

---

---

---

---

Dimensions  (W x D x H) mm

 ---

482 x 420 x88 (2U)

482 x 420 x88 (2U)

 ---

---

---

 ---
