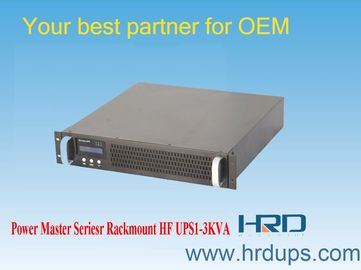

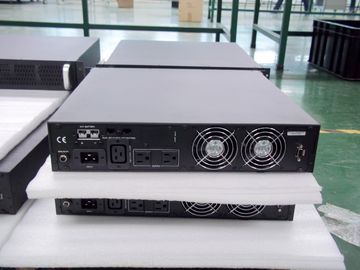

PMseries Rack Mount Online HF UPS

Model

PMR1000

PMR2000

PMR3000

PMR5000

PMR6000

Capacity

1KVA/0.8kW

2KVA/1.6kW

3KVA/2.4kW

5KVA/4.0kW

6KVA/4.2kW

Phase

Single, 2 wire+Ground

AC Input


P.F

Above 0.98

THDi

< 5%

voltage range

110-285Vac(50%LOAD), 160-285Vac(FULL LOAD)
Or 80-150Vac(1-3KVA)

frequency range

40-70HZ

By-pass

110VAC—285VAC
Or 80-150Vac(1-3KVA)

Frequency following

50/60Hz+/-5Hz (auto- sensing)

Output


P.F

0.8

0.7/0.8

Voltage

220/230/240 Vac +/-1%
Or110/120/127Vac+/-1%(1-3Kva)

Frequency

50/60+/-5Hz or 50/60Hz ± 0.1Hz (Line mode)
50/60Hz ± 0.1Hz ( Battery mode)

crest factor

3:1

Wave distortion

Linear load <3%, Nonlinear load <5%

Over load ability

30s when overload is 108%~150%
200ms when overload above150%

Transfer time

0ms

AC abnormal

Alarm every 4 seconds

Battery low voltage

Keep alarm every 1 second

Overload

Keep alarm every 0.5 second

Display

High Definition LED and LCD, clear & friendly display interface

Efficiency

Above 87%

Protections

Output: Short circuit, Overload, low voltage,
Input: Instant high voltage protection
Others:over-temperature protection,   Battery low, charger PCB,

Communication

RS232(Standard), RS485 and SNMP card(optional)

Working Temp.

0~40℃

Relative humidity

0~90%( No coagulation)

Cooling

Intelligent speed-control Fan

Input & output

Socket(Optional)

Terminals

 Battery

Type

Internal Batteries

External Battery Pack

DC Voltage

36Vdc

72Vdc

120Vdc

Backup Time (Full load)

5 min

9 min
(with 1BP)

5 min
(with 1 BP)

4 min
(with 1 BP)

Net Weight(Kg)

----

26

38

Dimension

---

440* 440 *87mm(2U)

440* 440 *130mm(3U)

Main Unit

Net Weight(kg)

15

12

12

16

Dimension

440* 440 *87mm(2U)

440* 440 *130mm(3U)

Packing Dimension(D*W*H)

570*570*185mm

  570*570*235mm
