Inverter Charger Inbuilt Solar MPPT Controller 20/30/40/50/60A and AC Charger 35-70A for Battery

Certification
China CHINA UPS Electronics Co., Ltd. certification
China CHINA UPS Electronics Co., Ltd. certification
The company considerate after-sales service ,And try their best to meet the requirement of customers. We will be a long-term cooperation.

—— Albert

This is a fantastic sourcing platform, considerate service and good quality product.

—— philip

You always can give me the best plan ,and it lets my customer feel great,i hope we can have another chance to cooperation.

—— Tim

I'm Online Chat Now

Inverter Charger Inbuilt Solar MPPT Controller 20/30/40/50/60A and AC Charger 35-70A for Battery

Inverter Charger Inbuilt  Solar MPPT Controller 20/30/40/50/60A and AC Charger 35-70A for Battery
Inverter Charger Inbuilt  Solar MPPT Controller 20/30/40/50/60A and AC Charger 35-70A for Battery Inverter Charger Inbuilt  Solar MPPT Controller 20/30/40/50/60A and AC Charger 35-70A for Battery

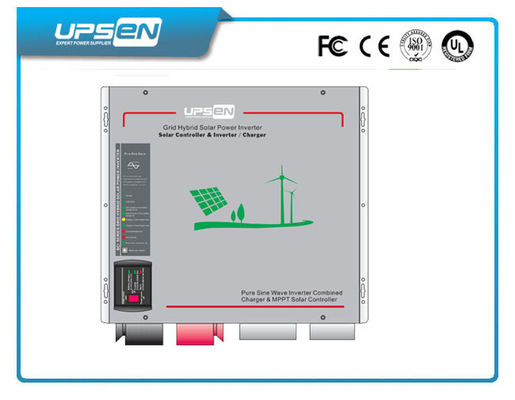

Large Image :  Inverter Charger Inbuilt Solar MPPT Controller 20/30/40/50/60A and AC Charger 35-70A for Battery

Product Details:
Place of Origin: China
Brand Name: UPSEN
Certification: CE, ISO, RoHS
Model Number: Cosmos Star Series 1-6Kw
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: 7-15 Days
Payment Terms: T/T, LC, WU, Money Gram etc
Supply Ability: 50,000pcs/Month
Detailed Product Description
Waveform: Pure Sinewave Output Power Factor: 1
Phase: Single Phase Protection: Over Load/Current/Voltage, Short Circuit Etc
Display: LCD/LED H.S. Code: 8504403090
High Light:

solar power inverter for home

,

pure sine wave power inverter



Inverter Charger Inbuilt  Solar MPPT Controller 20/30/40/50/60A and AC Charger 35-70A for Battery

Model: Solar Inverter Controller All in one Cosmos Star Series 1000W-6000W (1ph in/1ph out)



Solar Inverter Overview

1: Inverter with Working modes switches automatically– AC Grid bypass mode, inverter mode, AC Charging mode,

     solar charging mode

2: Inbuilt Solar MPPT Controller 20/30/40/50/60A,

3: DC Voltage 12/24/48VDC

4: AC Input /output 110Vac 120Vac or 220Vac 230Vac 240Vac

5: Pure Sine Wave Output



Key Features:

1: Remote control & RS232 communication port
2: Power saver mode
3: Four stages smart charging, charging current adjusted automatically
4: Professional off grid solar system solution, which is a combination of big power inverter and solar controller

5: Pure sine wave output which matches wave form of AC grid no matter is on AC grid mode or inverter mode, workable on inductive load
6: Working modes switches automatically– AC Grid bypass mode, inverter mode, AC Charging mode, solar charging mode
7: DIP switch optional: Selectable charging voltage for various battery type
8: Manual control input&output breakers
and at the meantime battery get charged from solar controller. It transfers back to battery invert mode when battery get full charged. It makes full use of solar energy and saves electricity.
9: LCD&LED Screen for option

10: AC Grid priority & battery priority working mode as selectable
11: AC grid mode: AC Bypass supplies load when AC is normal, battery invert AC supplies load when AC is off
12: Battery priority: battery invert supplies load when battery get full-charged; AC bypass supplies load when battery low
13: Inbuilt MPPT Solar Controller 20/30/40/50/60A, with DC Voltage 12/24/48VDC





Technical Specification

Mode NO.

CS600

CS1000

CS2000

CS3000

CS4000

CS5000

CS6000

Rated Power

600W

1000W

2000W

3000W

4000W

5000W

6000W

AC INPUT

Phase&Waveform

                                                    Single pahse&Pure Sine Wave

Voltage

                                             110VAC/120VAC/220VAC/230VAC/240VAC

Fequency

                                                       50HZ/60HZ(Auto adjust)

Voltage range

                                                       95-127VAC/194-253VAC

Frequency range

                                                          48-54HZ/58-64HZ

AC Output

Waveform

                                                Pure Sine wave and single phase

Voltage

                                         110VAC/120VAC/220VAC/230VAC/240VAC

Frequency

                                                                 50HZ/60HZ

Peak Power

1800W

3000W

6000W

9000W

12000W

15000W

18000W

Battery



Battery DC

12/24VDC

12/24VDC

          12/24/48VDC

                    24/48VDC

MAX charging cunrrent

                                                                             20A-75A

Battery type

                                                            GEL,AGM,Sealed lead acid

MPPT Controller



PV Input

                                                    15-30VDC For 12VDC/30-55VDC For 24VDC

MAX charging cunrrent

                                                                      20/30/40/50/60AMP

MAX Ouput current

                                                                15A

for DC laod

Transfer efficiency



MPPT efficiency

                                                  more than 95%

Line Mode

                                                   more than 95%

Battery Mode

                                                    more than 85%

Power Saver

                                            Available when load is less than 50A

Transfer time

                                                            10ms

Indicator



7-LED Indicators

Left to right:1.Line Mode(Green),2.Inverter Mode(Green),Charging Mode(Yellow),4.Full Charged(Green),

5.Over Temp(Red),6.Over Load(Red),7.Saving Mode(Green)

2-LED Indicators on MPPT

Power/CHG Mode

Dimension

486*400*181mm

486*432*181mm

Weight

22KG

26KG

28KG

33KG

45KG

52KG

56KG





Competitive Advantages:


1: Three Years' warranty for pure sinewave inverter, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales

6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.

7: Free OEM & ODM Service

8: Competitive price, quality and mature products
