100% Brand New PROVA 200A Solar Module Analyzer Solar Panel Analyzer Meter Tester

China 100% Brand New PROVA 200A Solar Module Analyzer Solar Panel Analyzer Meter Tester supplier
100% Brand New PROVA 200A Solar Module Analyzer Solar Panel Analyzer Meter Tester supplier 100% Brand New PROVA 200A Solar Module Analyzer Solar Panel Analyzer Meter Tester supplier 100% Brand New PROVA 200A Solar Module Analyzer Solar Panel Analyzer Meter Tester supplier 100% Brand New PROVA 200A Solar Module Analyzer Solar Panel Analyzer Meter Tester supplier

Large Image :  100% Brand New PROVA 200A Solar Module Analyzer Solar Panel Analyzer Meter Tester

Product Details:

Place of Origin: Shenzhen, China
Brand Name: TES
Certification: CE/ROHS/SGS/ISO9001
Model Number: PROVA 200A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: negotiation
Packaging Details: Packed in carrying bag firstly with color box, and then reinforced with export carton for outer packing
Delivery Time: 2 working days after received the payment
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 3,000 pieces per month
Contact Now
Detailed Product Description
Battery Type: Rechargeable Lithium Battery, 3400mAh Battery Life: 400 Times Of Linear Scan From 60V To 0V And 0A To 12A
Data Logging Memory Size: 99 Records (PROVA 210) AC Adaptor: AC 110V Or 220V Input 200: DC 12V / 1-3A Output
Dimension: 257 (L) X 155 (W) X 57 (H) Mm Weight: 1160 G / 40.0 Oz (Batteries Included
Storage Environment: -20 - 60 75% RH

100% Brand New PROVA 200A Solar Module Analyzer Solar Panel Analyzer Meter Tester



PROVA200 Solar Module Analyzer



  • I-V Curve Test for Solar Cell.
  • Maximum Solar Power (Pmax) Search by Auto-scan (60V, 6A)
  • Maximum Voltage (Vmaxp) at Pmax
  • Maximum Current (Imaxp) at Pmax
  • Voltage at open circuit (Vopen)
  • Current at short circuit (Ishort)
  • I-V curve with cursor
  • Optional printer (model: 300XP) to hardcopy I-V curve
  • Calculation of Efficiency (%)
  • Manual single point test




Electrical Specifications (23C±5C)
Voltage Measurement:
Range (60V / 6A)ResolutionAccuracy
0–6V
0.001V
±1% ± (1% of Vopen ± 9mV)
6 - 10V0.001V
±1% ± (1% of Vopen ± 0.09V)
10–60V
0.01V
±1% ± (1% of Vopen ± 0.09V)
Current Measurement:
Range (60V / 6A)ResolutionAccuracy
0–0.6A
0.1mA
±1% ± (1% of Ishort ± 0.9mA)
0.6 - 1A0.1mA±1% ± (1% of Ishort ± 9mA)
1–6A
1mA
±1% ± (1% of Ishort ± 9mA)
Current Simulation:
Range (60V / 6A)ResolutionAccuracy
0–1A
0.1mA
±1% ± 0.9mA
1–6A
1mA
±1% ± 9mA

General Specifications:

Battery Type:
Rechargeable, 2500mAh (1.2V) x 8
AC Adaptor:
AC 110V or 220V input,
12V/ 1 ~ 3A output
Dimension:
257 (L) x 155 (W) x 57 (H) mm
10.1 (L) x 6.1 (W) x 2.2 (H) in
Weight:
1160 g / 40.0 oz
(battery included)
Accessories:

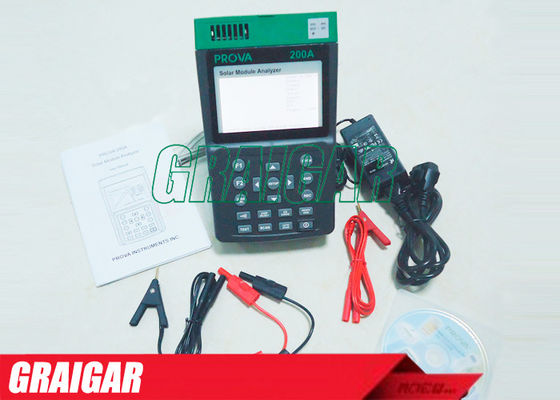

Users manual x 1, AC adaptor x 1
RS232C (to USB Bridge) Cable x 1
Rechargeable batteries x 8
Software CD x 1
Kelvin Clips (6A max) x 1 set


The Prova 200 solar panel analyzer from LAESENT is used for the professional testing and maintenance of solar panels and modules.



In addition to maintenance and installation of solar panels, the Prova 200 solar panel analyzer can be used in the manufacturing and research of solar panels and cells.
The portability of this device means that it is also useful in quality assurance at various stages on the production line and can be taken from one location to another.
When used in the installation of solar panels, the Prova 200 solar panel analyzer assists in determining the proper inverter size as well as optimum power output position of panels and helps identify defective cells or panels that have worn out over time.
The solar panel analyzer also provides the user with current and voltage (I-V) test curves, maximum solar power as well as current and voltage. Solar cell efficiencies are also easily determined using the unit.
Test results can be saved and downloaded to a PC for later analysis using the application software that is supplied with the portable solar panel analyzer.
The Prova 200 solar module analyzer comes complete with a carry case, rechargeable batteries, charger and an optical USB cable for interface to a PC.
