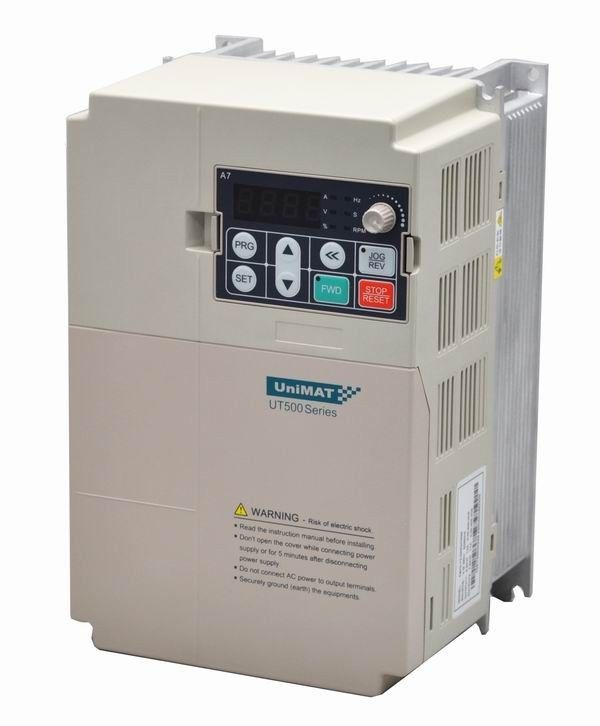

Adjustable frequency drives Three Phasae Inverter For Solar Energy System

380v 3 Phase Inverter V / F driver vector inverter 7.5KW UT533-7R5G1-1XA0

1) Quick description :

1. No encoder vector control, torque response speed≤20ms,
2. No encoder vector control, torque control accuracy ±1%,
3. No encoder vector control, 150% rated torque at 1Hz,
4. Widely voltage range, allowable voltage swing range is ±15%,
5. High overload capacity, 150% rated currency 60 seconds, 180% rated currency 2 seconds, 200% instantaneous trip

2) Detail description :

1. Two drive control ways to be selected.

a. V/F control

b. No PG vector control

2. Multi PID control

3. Can use DC Power supply

4. Standard RS485 communication, Support Modbus-RTU, support Profibus-DP protocol.

3) Product Packing

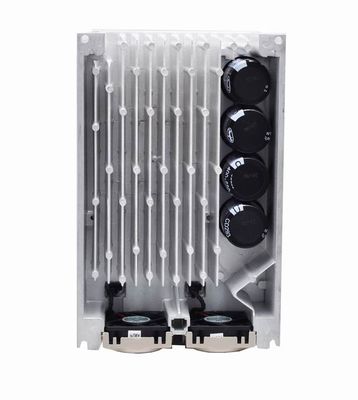

Cabinet uses up and down design, standard reactors are installed in the base, to ensure better cooling,

 improve the application life and good wiring.
