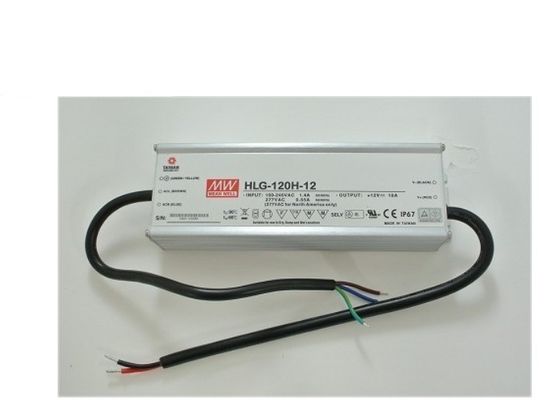

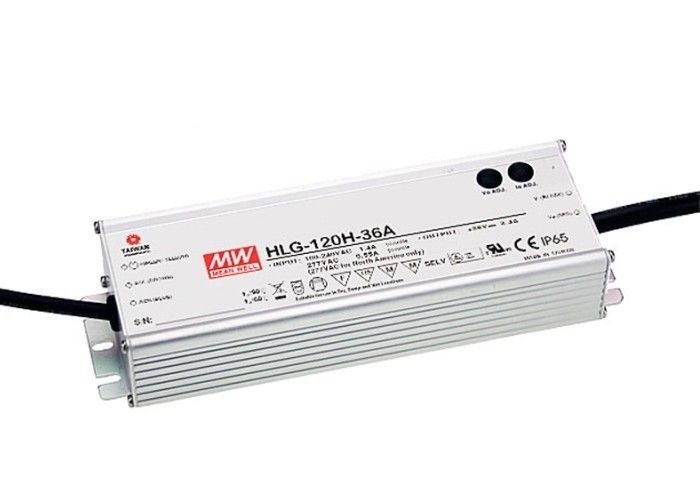

IP67 High Power LED Lighting Drivers LED Power Supply HLG-120H-36A
HLG Series Features (80~120W High Efficiency with PFC):
1. Universal AC input (up to 305VAC) / Full range
2. Protections: Short circuit / Over current / Over voltage / Over temperature
3. Built-in active PFC function
4. High efficiency up to 93.5%
5. IP67 / IP65 design for indoor or outdoor installations
6. Output current adjustable through output cable or internal potentiometer
7. Cooling by free air convection
8. Suitable for dry, damp, and wet location
9. Suitable for LED lighting and street lighting applications
10. Meet 4kV surge immunity level (IEC61000-4-5)
11. Class 2 power unit / Pass LPS (except for HLG-120H)
12. Multiple models for choice:
A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer
B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)
Blank-Type: IP67 rated. Cable for I/O connection
BL-Type(option): for HLG-80H B-Type only, "UL8750 listed" safety & IP66 approved, contact MEAN WELL for details
D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details (safety pending for
13. Optional CQC models available (HLG-80H/100H/120H-A/Blank type)
14. 5 years warranty
HLG-120H Series Features:
1. Universal AC input / Full range (up to 305VAC)
2. Built-in active PFC function
3. High efficiency up to 93.5%
4. Protections: Short circuit / Over current / Over voltage / Over temperature
5. Cooling by free air convection
6. OCP point adjustable through output cable or internal potentiometer
7. IP67/IP65 design for indoor or outdoor installations
8. Three in one dimming function (1~10Vdc or PWM signal or resistance)
9. Suitable for LED lighting and moving sign applications
10. Compliance to worldwide safety regulations for lighting
11. Suitable for dry / damp / wet locations
12. 5 years warranty
HLG Series Power Supplies:
HLG-40H Series, HLG-60H Series, HLG-80H Series, HLG-100H Series, HLG-120H Series, HLG-150H Series, HLG-185H Series, HLG-240H Series, HLG-320H Series, HLG-600H Series
Quick Details of HLG-120H LED Power Supply:
|HLG-120H-12 (A)||12V, 0~10A||±2.5%||150mV||92.0%|
|HLG-120H-15 (A)||15V, 0~8.0A||±2.0%||150mV||92.0%|
|HLG-120H-20 (A)||20V, 0~6.0A||±1.0%||150mV||93.0%|
|HLG-120H-24 (A)||24V, 0~5.0A||±1.0%||150mV||93.0%|
|HLG-120H-30 (A)||30V, 0~4.0A||±1.0%||200mV||93.0%|
|HLG-120H-36 (A)||36V, 0~3.4A||±1.0%||200mV||93.0%|
|HLG-120H-42 (A)||42V, 0~2.9A||±1.0%||200mV||93.0%|
|HLG-120H-48 (A)||48V, 0~2.5A||±1.0%||200mV||93.5%|
|HLG-120H-54 (A)||54V, 0~2.3A||±1.0%||200mV||93.5%|
()= A, B, BL, D or Blank
Specifications of HLG-120H:
|AC input voltage range||90~305VAC ; 127~431VDC|
|AC inrush current (max.)||Cold start, 60A at 230VAC|
|DC adjustment range||±10% rated output voltage (A-Type only)|
|Current adjustment range||HLG-80H/100H: 60%~100% ; HLG-120H: 50%~100%|
|Over current protection||95%~108% constant current limiting, auto-recovery|
|Over voltage protection||110%~140% rated output voltage|
|Over temp. protection||Shut down o/p voltage, re-power on to recover|
|Setup, rise, hold up time||500ms, 50ms, 16ms at full load and 230VAC|
|Withstand voltage||I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:1.5kVAC|
|Working temperature||-40~+70Celsius (refer to output derating curve)|
|Safety standards||UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved;
UL8750 listed for HLG-80H-□BL only; ENEC EN61347-1, EN61347-2-13 for HLG-120H only
|EMC standards||EN55015, EN55022 class B (except for HLG-80H), EN61000-3-2 class C, EN61000-3-3,
|Connection||Input||UL rated, SJTW 18AWGx3C (30cm)|
|Output||A/D/Blank-Type: SJTW 14AWGx2C (30cm) ;
B-Type: SJTW 14AWGx2C (30cm)+SJTW 18AWGx2C (30cm)
|Dimension (LxWxH)(mm)||220x 68x 38.8|
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. Derating may be needed under low input voltage. Please check the static characteristics for more details.
6. A type only.
7. Safety and EMC design refer to EN60598-1, CNS15233, GB7000.1, FCC part18.
8. Length of set up time is measured at cold first start. Turn ON/OFF the power supply may lead to increase of the set up time.
9. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
10. Refer to warranty statement.
11. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
