3500w 48V DC To AC ups Solar Controller Inverter With CE / ROHS / FCC

China 3500w 48V DC To AC ups Solar Controller Inverter With CE / ROHS / FCC supplier
3500w 48V DC To AC ups Solar Controller Inverter With CE / ROHS / FCC supplier 3500w 48V DC To AC ups Solar Controller Inverter With CE / ROHS / FCC supplier 3500w 48V DC To AC ups Solar Controller Inverter With CE / ROHS / FCC supplier

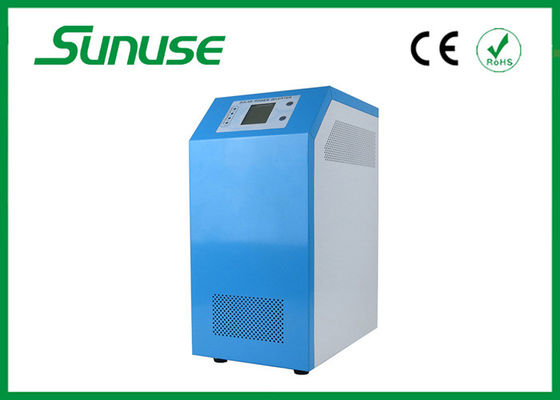

Large Image :  3500w 48V DC To AC ups Solar Controller Inverter With CE / ROHS / FCC

Product Details:

Place of Origin: China
Brand Name: Sunuse
Certification: CE / EMC / LVD/ RoHS /CCC
Model Number: SMF-LM-3500

Payment & Shipping Terms:

Minimum Order Quantity: 10pc
Price: negotiation
Packaging Details: Packing size(MM): 440*280*625MM N.W(KG): 31KG G.W(KG): 33KG
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union, Paypal, Escrow, E-Credit Line
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Output Wave Form: Pure Sine Wave Type: DC/AC Inverters
Output Type: Single Output Power: 3500w
Display: LCD LED

Multifunctional Inverter Solar Inverter With Built-in Controller  For Pump 3500w With CE ROHS FCC





Quick Detail:





Battery charge Ups AVR voltage regulator
Strong overload ability
Sleep function
DC first or AC first set by user
ups







Specification:





     Mode

5000VA

Rated Output Capacity

3500W

Peak Power

7000W

Battery Voltage(DC)

48V

PWM Solar Controller

Voltage

48V

Current

50A

PV Max Input Voltage



 48V System:100V



 Size W×D×H(mm)

420*260*605

Packing Size W×D×H(mm)

440*280*625

Net Weight (kg)

31

Gross Weight (kg)

33

General Parameter

Working Mode (Setting)

1

Utility first (AC first) battery standby mode

2

Sleep Mode,no utility,load’s power is over 5% of rated output power, Inverter start to work automatically

3

Battery first (DC first)utility standby mode

AC Input

Voltage

220V±35% or 110V+35%(Optional)

Frequency

50Hz±3% or 60Hz±3% (Optional)

AC Output

Voltage

220V±3% or 230V±3 or240V±3% or 100V±3% or 110V±3% (Optional)

Frequency

50Hz±0.5 or 60Hz±0.5 (Optional)

Utility charge

AC Charge Current

0~15A

Charge Time

Depend on battery capacity and quantity

Battery Protection

Automatic detection, Charge and discharge protection,Intelligent Management

PV Charge

Total Current of PV Input Should Be Less Than Rated Current of PWM solar controller

Display

Display Mode

LCD+LED

Display Information

Input voltage,output voltage,output frequency,battery capacity,Load condition,Status Information

Output Wave Type

Pure sine wave output,Total Harmonic Distortion THD≤3

Overload Ability

>120% 1 min,>130% 10s

Power Consumption

Sleep Mode

1~6W

Normal Mode

1~3A

Conversion Efficiency

80%~90%

Transfer Time

<5ms (AC to DC / DC to AC)

Protection

Overload output,short-circuit,high-voltage input,low-voltage input,overheat

Environment

Temperature

-10℃~50℃

Humidity

10%~90%

Altitude

≤4000m









3500w 48V DC To AC ups Solar Controller Inverter With CE / ROHS / FCC



Application



1) Off-grid solar power system

2) solar power system with utility power as a complementary



Product Description



This design is composed of Solar Controller and ourSP series inverter. It is built-in solar charge controller, AC charge,

AVR voltage regulator, pure sine wave inverter; modularization design. The advantages are simple maintenance, stable

quality, high load carry ability and so on. Product is suitable for family, industrial solar and utility hybrid system and all off

grid power generation system.This series of inverter has the advantages of high conversion efficiency, low power consumption,

super load-carrying ability, and large charging current. Users can set it to sleep mode and normal working mode according to the AC loads.

Users also can set the output priority (AC first or DC first).  They are best choice for solar, wind generation system, home, office standby UPS power supply and DC to AC projects, keep 24hours have power. In the above application fields, this series of inverter is suitable for all kinds of inductive loads, capacitive load and res istive load such as TV,

 air conditioner, refrigerator and washing machine.





Feature



1) Easy to install. To configure a solar system, users just need to connect it with solar panels and batteries.

2) CPU management,Intelligent control,modular design

3) LEDs LCD display. LCD can display various parameters(such as the output voltage, frequency, working mode)

4) Multifunction design, AVR UPS function. Users don’t need to buy solar, controller, AC charger or stabilizer.

5) External battery connection, it’s convenient for users to expand use time and back-up power time

6) With super load-carrying ability and high load capacity, this series of  inverters can not only drive resistance load; but also various kinds of inductive loads such as motor, air conditioner, electric drills, fluorescent lamp, gas lamp. It can drive almost any kinds of load

7) Low frequency pure sine wave circuit design, stable quality, easy to maintenance, low failure rate and long service life (under proper operation, it can last at least 5 years)

8) Perfect protection: low voltage protection, high voltage protection, over temperature protection, short-circuit protection, overload protection

9) CE / EMC / LVD/ RoHS /FCC approvals

10) 2 years warranty, life-long technical support





3500w 48V DC To AC ups Solar Controller Inverter With CE / ROHS / FCC
