Smart data centre 208Vac Online Ups High Frequency UPS On Line

China Smart data centre 208Vac Online Ups High Frequency UPS On Line supplier
Smart data centre 208Vac Online Ups High Frequency UPS On Line supplier Smart data centre 208Vac Online Ups High Frequency UPS On Line supplier Smart data centre 208Vac Online Ups High Frequency UPS On Line supplier Smart data centre 208Vac Online Ups High Frequency UPS On Line supplier

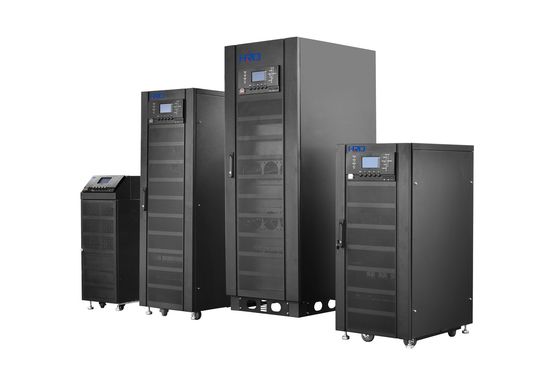

Large Image :  Smart data centre 208Vac Online Ups High Frequency UPS On Line

Product Details:

Place of Origin: Shenzhen China
Brand Name: HRD/OEM
Certification: CE,ISO9001:2008
Model Number: PWA3310,PWA3315,,,PWA3380

Payment & Shipping Terms:

Minimum Order Quantity: 5PCS
Price: 2100USD/PCS
Packaging Details: 1pcs/ctn, wooden case with pallet
Delivery Time: 4 weeks after down payment
Payment Terms: TT or LC
Supply Ability: 1000PCS/month
Warranty: 2-3 years aftershipment with 10years technical support
Contact Now
Detailed Product Description



Smart  data centre 208Vac Online Ups High Frequency UPS OnLine





Introduction:



Smart Data center  208Vac Online Ups High Frequency UPS OnLine



Powerwell (America)series 3 phase 10-80kva is a high end uninterruptible power supply, which has adopted  the world leading electrical and electronic technology to increase performance and  super high reliability(MTBT>200,000h).3nos high speed DSPs with completed digital control fully  ensure highest quality of power supply and UPS reliabitly. Being kin to 1.0 input power factor and less than 2% THDi lead this UPS green and energy saving. It also offers humanization design: full front access of service ability, user- friendly touch screen.





Perfect Applications:



Internet Servor ,Middle Data Center, Medium-scale network system / computing center, bank and securities, business server group, Medium-scale office automation, precision equipment, etc.





Features: complete digital control technology



Fully digital control with two DSPs, all the subsystems are digital controlled including the IGBT rectifier, inverter, charger, discharger.





Excellent electrical properties



True online double conversion instruction offers the safe and effective power protection for various loads, with strong output load capacity;





High input power factor, green and energy-saving



Input end with PFC and input PF of the whole UPS up to 0.999,;





Dual AC input source supportable



Allowable AC and bypass 2 input ac source





Strong environmental adaptability



Wide input voltage and frequency range, adaptation to all kinds of climatic

and geographical environment;





Comprehensive protection measures



 Surge Protection, short circuit protection, and other protection to ensure the reliability of UPS;

IGBT and SCR adopts the advanced EUPEC power module;

The adoption of advanced technology (IGBT driving technology, IGBT soft over-current shutdown) improves the reliability and safety of inverter.





Similar modular design



Each phase main board are designed like rack  for easy assembling and maintenance

Inbuilt battery pack  plug-in design for easy use





Intelligent battery management (ABM)



Adopting the intelligent battery management:

Intelligent charger:interval three-stage charging process( constant current,constant voltage, float charging and charger shut off, when battery voltage decrease to a lower level, charger restarts to work)

Back up time displayed on the LCD screen

Battery temperature compensation

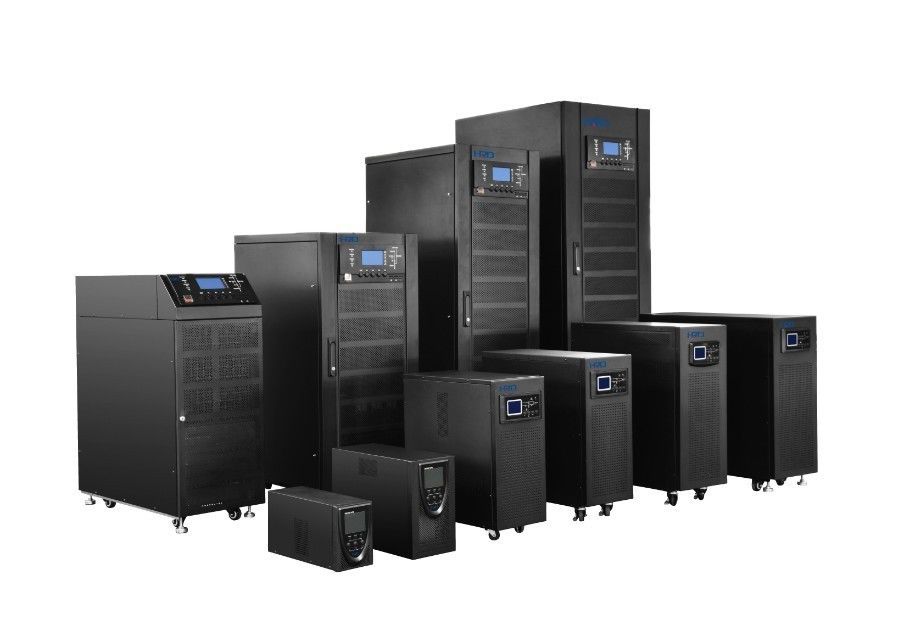

Smart data centre 208Vac Online Ups High Frequency UPS On Line

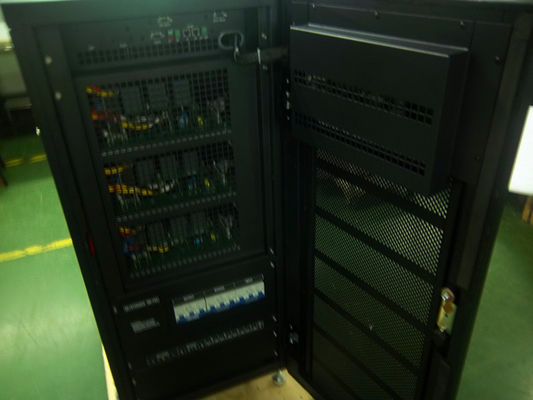

Smart data centre 208Vac Online Ups High Frequency UPS On Line

Online detecting battery status,

The max battery charging current can set by end users according to the battery features, to avoid any damage caused by the big charging current;

Periodic self-test battery, detecting the battery problems timely;

With battery inverse connection, over voltage / current protection, to protect the battery;



Cold start and  AC start Function



Directly start the UPS through battery or start UPS through Mains only.



Superior network monitoring capabilities



Communication port (RS232, USB, and so on) connecting with computer,SNMP card optional,



Easy-maintenance design



a) Adopts the full front maintenance design, reducing the restrictions

on the installation space, and saving the space of computing center;

b)Modular design class, convenient and easy site maintenance;

c) With manual maintain bypass,

d)Battery replacement without disrupting the UPS running;

e) Historical records search function, events up to1,000 items;



Friendly interface with Large LCD



 Large LCD display and LED status indication; Abundant information display of UPS;



Technical Specifications:



Model

PWA3310

PWA3315

PWA3320

PWA3330

PWA3340

PWA3360

PWA3380

Capacity/Rating Power

10Kva/9Kw

15Kva/13.5Kw

20Kva/16Kw

30Kva/27Kw

40Kva/36Kw

60kva/54kw

80kva/72kw

AC Input

Rated voltage

190/208/220Vac (Line-Line)

Input connection

3 phase +N+PE

Power factor

Above 0.999

THDi

Less 2%

Voltage range

150-270Vac (Line voltage)

Frequency

40-70Hz

Bypass

150-270Vac (Line-Line)+/- 15%

Output

voltage precision

±0.5%

Dynamical

voltage transient

Less 5% ( 0~100% load step)

THDU

THD less 0.6%( linear load ),3%(non-linear load)

Power factor

0.9 (lag)

Frequency

tracking range

50/60Hz±3Hz

Frequency precision

±0.05%(Battery mode) , ±3hz(Line mode)

phase displacement

120±0.5°(Balance or imbalance load )

Frequencytracking rate

Less 1Hz/s



Overload capability

105% long time operation

125%,transfer to bypass after 10 minutes

Above 150%, transfer to bypass after 1s

Bypass overload

Above 180%, long time operation

Above 180%, last for 1s

Transfer time

0ms

System

System efficiency

Above 91%(Normal mode);96%(ECO) mode

Display

 Touch screen LCD+LED





EMC

IEC62040-2

IEC61000-4-2 (ESD)

IEC61000-4-3 (RS)

IEC6100-4-4 (EFT)

IEC6100-4-5 (Surge)

Noise (1m)

Less 60dB

Insulating resistance

Above 2M (500VDC)

Insulating intensity

(input, output to PE) 2820Vdc, leakage current lower than 3.5mA, no flashover in 1min

Surge protection

Meet the requirement of IEC60664-1class,endure surge of 1.2/50us+8/20us higher than 6KV/3KA

IP class

IP30

Battery configuration

Installation(dc)

+96/108/120Vdc ,- 96/108/120Vdc(settable from LCD screen)

Connection

Bottom cable connection in front

Charger

1-20A( settable)

Dimension

(W×D×H)

Long-run model

620×800×1100

720×900×1850

735*850*1680

Inbuilt batt.

620×800×700

720×900×1050

954*839*1857

Weight (kg)

Long-run model

40

60

70

120

130

150

160

Inbuilt batt.

125

145

180

300

340

****

****




Note:Any specification subject to change without notice;
