High Stability Power Source Single Phase Stationary Power Systems 45Hz – 65Hz

China High Stability Power Source Single Phase Stationary Power Systems 45Hz – 65Hz supplier

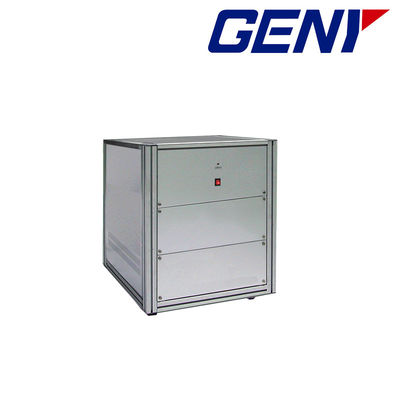

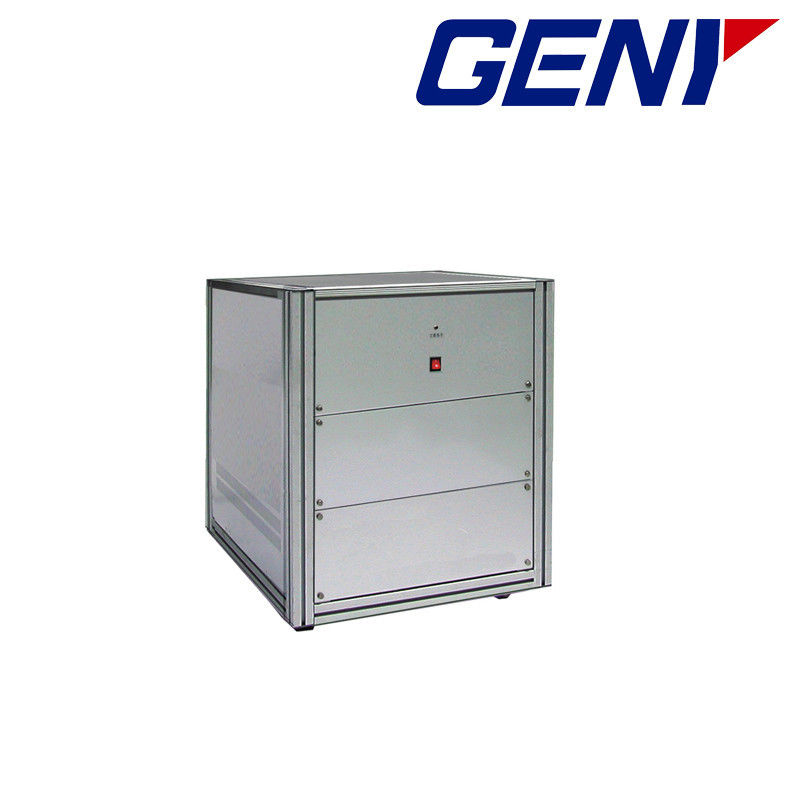

Large Image :  High Stability Power Source Single Phase Stationary Power Systems 45Hz – 65Hz

Product Details:

Place of Origin: China
Brand Name: GENY
Certification: ISO 9001
Model Number: YCS-101

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood case
Delivery Time: 30 days
Supply Ability: 45 sets/month
Contact Now
Detailed Product Description
Phase: Single Phase Accuracy Class: 0.02 / 0.05
Power: Electronic Voltage: 3×(24V – 300V)

Specifications:






YCS-101-250

YCS-101-600

YCS-101-1200

YCS-101-2500

Voltage

Test voltage output (Phase-Neutral)

24V – 288V or customized

Power of the voltage output

100VA

250VA

500VA

1000VA

Resolution

Better than 0.01% of full scale value of range

Setting accuracy

Better than 0.05% at the final range value

Stability

Better than 0.005%/h (integration time 150 s)

Load regulation from 0-max. load

< 0.01%

Distortion factor

< 0.3% for linear resistance load

Harmonics

2nd – 21st free programmable

Current

Test current output

1mA – 100A

Power of the current output

150VA

350VA

750VA

1500VA

Resolution

Better than 0.01% of full scale value of range

Setting accuracy

Better than 0.05% at the final range value

Stability

Better than 0.005%/h (integration time 150 s)

Load regulation from 0-max. load

< 0.01%

Distortion factor

< 0.3% for linear resistance load

Harmonics

2nd – 21st free programmable

Phase angle

Range

0 -- 360°

Resolution

0.01°

Setting accuracy

0.1°

Frequency

Range

45Hz – 65Hz

Resolution

0.01Hz



Voltage Supply

220V±10% or

50/60Hz±2Hz

3×220/380V±10% or customized

50/60Hz±2Hz

Ambient temperature

-10°C -- +40°C

Relative humidity

35% -- 85%



Description:

  1. High accuracy and high stability output
  2. With RS232 interface for automatic operation
  3. With keyboard for manual operation (optional).
  4. 2nd – 21st harmonic, output amplitude and degree can be programmed.
  5. Aluminum alloy materials, light and strong, prevent corrosion.
  6. With the protect function of overload, short voltage circuit and open current circuit.
  7. Simple control software, easy for operation

Applications:

  1. Nation-level utility companies
  2. Governmental bureaus of metrology
  3. Big energy meter manufacturers

Primary Competitive Advantages:

  1. High quality product
  2. High power output (max. voltage power: 1000VA, current power: 1500VA)
  3. Extremely high power stability
  4. Distortion factor less than 0.3% for linear resistance load
