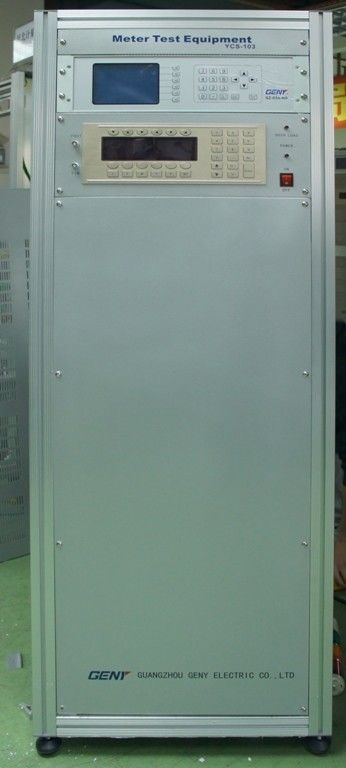

Large Image :  Three Phase Energy Stationary Power Systems with Extremely High Power Stability and Accuracy

Product Details:

Place of Origin: China
Brand Name: GENY
Certification: ISO 9001
Model Number: YCS-103

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood case
Delivery Time: 30 days
Supply Ability: 45 sets/month
Contact Now
Detailed Product Description
Phase: Three Phase Accuracy Class: 0.02 / 0.05
Power: Electronic Power Stability: < 0.005% /h

Description:

  1. Aluminum alloy materials, light and strong, prevent corrosion High accuracy and high stability output
  2. 2nd – 21st harmonic, output amplitude and degree can be programmed.
  3. With keyboard for manual operation (optional).
  4. With RS232 interface for automatic operation
  5. It’s easy for operation by PC control suit.
  6. With the protect function of overload, short voltage circuit and open current circuit.

Specifications:





YCS-103-250

YCS-103-600

YCS-103-1200

YCS-103-2500

Voltage

Test voltage output (Phase-Neutral)

3×(24V – 288V) or customized

Power of the voltage output

3×100VA

3×250VA

3×500VA

3×1000VA

Resolution

Better than 0.01% of full scale value of range

Setting accuracy

Better than 0.05% at the final range value

Stability

Better than 0.005%/h (integration time 150 s)

Load regulation from 0-max. load

< 0.01%

Distortion factor

< 0.3% for linear resistance load

Harmonics

2nd – 21st free programmable

Current

Test current output

3×(1mA – 100A)

Power of the current output

3×150VA

3×350VA

3×750VA

3×1500VA

Resolution

Better than 0.01% of full scale value of range

Setting accuracy

Better than 0.05% at the final range value

Stability

Better than 0.005%/h (integration time 150 s)

Load regulation from 0-max. load

< 0.01%

Distortion factor

< 0.3% for linear resistance load

Harmonics

2nd – 21st free programmable

Phase angle

Range

0 -- 360°

Resolution

0.01°

Setting accuracy

0.1°

Frequency

Range

45Hz – 65Hz

Resolution

0.01Hz



Voltage Supply

3×220/380V±10% or customized

50/60Hz±2Hz

Ambient temperature

-10°C -- +40°C

Relative humidity

35% -- 85%



Applications:

  1. Nation-level utility companies
  2. Governmental bureaus of metrology
  3. Big energy meter manufacturers

Primary Competitive Advantages:

  1. High power output (max. voltage power: 1000VA, current power: 1500VA)
  2. High quality product
  3. Distortion factor less than 0.3% for linear resistance load
  4. Extremely high power stability
