18V 400W Roof Installation Off Grid Solar Power System for Family

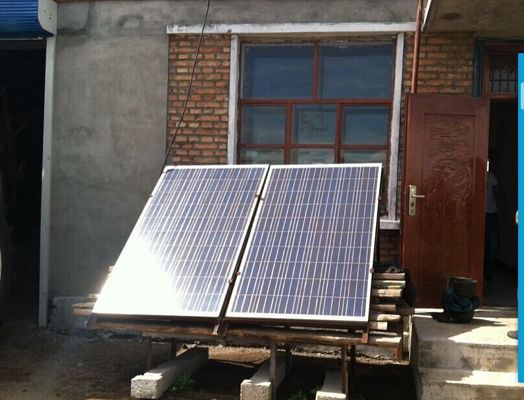

Large Image : 18V 400W Roof Installation Off Grid Solar Power System for Family

Product Details:

Place of Origin:	China
Brand Name:	CESC
Certification:	CE/CSA/TUV
Model Number:	CESC-KGP400

Payment & Shipping Terms:

Minimum Order Quantity:	50 Units
Price:	negotiation
Packaging Details:	Packaging in carton or wooden case
Delivery Time:	10 working days after received your payment
Payment Terms:	T/T or LC at sight
Supply Ability:	3,0000pcs per month

Contact Now

Detailed Product Description

Product Name:	400W Off-grid Home Solar Power System	Application:	Solar Generator
Quantity Of Panel:	2 Pcs Or Optional	Quantity Of Inverter:	1
Power Of Inverter:	400W	Standard:	CE/CSA/TUV
Type:	Home Solar Power System
Highlight:	off grid living solar power system

Roof Installation 400W Off-grid Solar Power System for Family Solar Power

Over-charge & Over-discharge protection

- With 1 AC 110/ 220V Output, also have UPS function

- Pure Sine Wave inverter, Can load Air condition and refrigerator

- Easy mounting & installation
- LCD digital display (can see the system working condition)

- Can be charged by normal AC230V electricity when cloudy or rainy

ITEM	SPECIFICATION:
SOLAR PANEL	TYPE NO:		P3Y-150
	QTY:		2pcs
	CONNECT ARRAY:		2 series in series
	SPEC:	CELLS:	156mm polysilicon cells*72
		Pm(Wp):	150W
		Vm(V):	18V
		Im(A):	8.33A
		Voc(V):	22.5
		Isc(A):	9.08A
		size(MM):	147068035MM
		N.W(KG):	12KG
SOLAR BRACKET	Material:		Galvanized steel
	SPEC:		1*2,suit for solar panels array
	Install place:		ground or flat roof
POWER KIT	TYPE NO:		CESC-KGP400
	CONTROLLER:	Controller Mode:	PWM
		Solar panel input range:	DC30V-DC50V
		Rated voltage of solar input:	DC36V
		Floating charge voltage:	27.6V
		Charging voltage:	24V DC
		Charging current:	20A
		Efficiency:	96% (Max)
	INVERTER:	Rated Output Power:	600W
		Peak power:	200% * 1s
		Working Efficiency:	>83%
		Output Wave:	Pure Sine Wave(THD≤5%)
		Switching Time:	≤4 ms (between grid and inverter)
		Protection Functions:	DC over-voltage protection/over-voltage self-revcovery
			DC low-voltage protection/low-voltage self-revcovery
			Overheat/short-current/overload protection
	Size:		355mm×175mm×210mm
	N.W:		10.8kg
BATTERY	Battery Type:		Maintain-free Lead-acid battery
	Capaticty:		12V/65AH*2 (Max.:1560WH)
	connect array:		2pcs in series
	system voltage:		24V DC
	N.W:		20kg
OTHERS ACCESSORIES	PV CABLE:	SPEC&QTY:	4mm sq with MC4 connectors: 10m
OTHERS ACCESSORIES	POWER CABLE:	SPEC&QTY:	16mm sq, 4m
