Product Details:
Payment & Shipping Terms:
|
| Product Name: | 1KW Off-grid Home Solar Power System | Application: | Solar Generator |
|---|---|---|---|
| Quantity Of Panel: | 3 Pcs Or Optional | Quantity Of Inverter: | 1 |
| Power Of Inverter: | 1KW | Standard: | CE/CSA/TUV |
| Type: | Home Solar Power System | ||
| High Light: | off the grid solar power systems,off grid home solar power system |
||

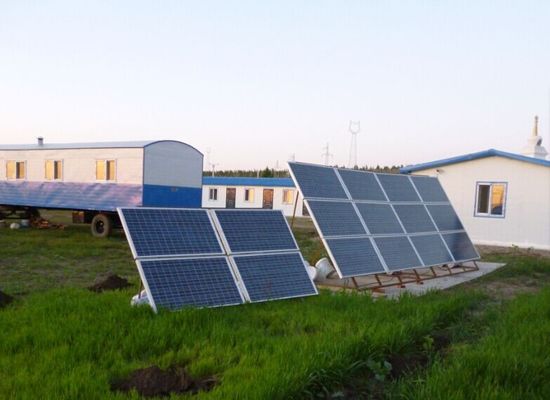

Intelligent Power Generator 1KW Off-grid home Solar Power System
| ITEM | SPECIFICATION: | ||
| SOLAR PANEL |
TYPE NO: | P7Y-300 | |
| QTY: | 3pcs | ||
| CONNECT ARRAY: | 3 series in parallel | ||
| SPEC: | CELLS: | 156mm polysilicon cells*72 | |
| Pm(Wp): | 300W | ||
| Vm(V): | 36V | ||
| Im(A): | 8.33A | ||
| Voc(V): | 44.8V | ||
| Isc(A): | 8.73A | ||
| size(MM): | 1956*992*45MM | ||
| N.W(KG): | 22.5KG | ||
| SOLAR BRACKET | Material: | Galvanized steel | |
| SPEC: | 1*3,suit for solar panels array | ||
| Install place: | ground or flat roof | ||
| POWER KIT |
TYPE NO: | CESC-KGP1000 | |
| CONTROLLER: | Controller Mode: | PWM | |
| Solar panel input range: | DC30V-DC50V | ||
| Rated voltage of solar input: | DC36V | ||
| Floating charge voltage: | 27.6V | ||
| Charging voltage: | 24V DC | ||
| Charging current: | 30A | ||
| Efficiency: | 96% (Max) | ||
| INVERTER: | Rated Output Power: | 1KW | |
| Peak power: | 200% * 1s | ||
| Working Efficiency: | >83% | ||
| Output Wave: | Pure Sine Wave(THD≤5%) | ||
| Output vltage: | 220V50HZ/110V60HZ | ||
| Grid power input: | 220V50HZ/110V60HZ | ||
| Switching Time: | ≤4 ms (between grid and inverter) | ||
| Protection Functions: | DC over-voltage protection/over-voltage self-revcovery | ||
| DC low-voltage protection/low-voltage self-revcovery | |||
| Overheat/short-current/overload protection | |||
| Features: | AVR Functions:AC145V-275V(input), AC198V-242V (output) |
||
| batteries can be charged by Grid and automatic supply power when Grid cut off | |||
| Size: | 355mm×175mm×210mm | ||
| N.W: | 12kg | ||
| BATTERY | Battery Type: | Maintain-free Lead-acid battery | |
| Capaticty: | 12V/100AH*2 (Max.:2400WH) | ||
| connect array: | 2pcs in series | ||
| system voltage: | 24V DC | ||
| N.W: | 30kg | ||
| OTHERS ACCESSORIES |
PV CABLE: |
SPEC&QTY: | 4mm sq with MC4 connectors: 1m |
| 6mm sq with MC4 connectors: 30m | |||
| POWER CABLE: |
SPEC&QTY: | 25mm sq, 2m | |
note:
1. The system can supply power continuously for left appliance for 2-3 overcast or rainy days.
2. Users can change loading equipments and working time as their needs.Longer working time is available by adding external batteries and solar panels by users themselves, as the system has reserved the connection port and capacity of solar controller.
