No Break 2 Phase 240V / 208V / 110V UPS 6KVA - 20KVA Online UPS with LCD Display

No Break 2 Phase 240V / 208V / 110V UPS 6KVA - 20KVA Online UPS with LCD Display
No Break 2 Phase 240V / 208V / 110V UPS 6KVA - 20KVA Online UPS with LCD Display No Break 2 Phase 240V / 208V / 110V UPS 6KVA - 20KVA Online UPS with LCD Display

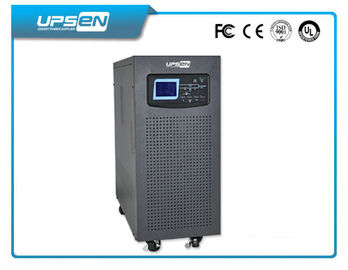

Large Image :  No Break 2 Phase 240V / 208V / 110V UPS 6KVA - 20KVA Online UPS with LCD Display

Product Details:
Place of Origin: China
Brand Name: UPSEN
Certification: CE, ISO, RoHS
Model Number: Super Star Series 6- 20Kva
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: Cartons & Wooden Pallet
Delivery Time: 7-15 Days
Payment Terms: T/T, LC, WU, Money Gram etc
Supply Ability: 50,000pcs/Month
Detailed Product Description
Type: Online Output Power Factor: 0.9
Phase: Single Phase Protection: Over Load/Current/Voltage, Short Circuit Etc
Display: Digital LCD Display H.S. Code: 8504402000
Output: 120/208/240Vac
High Light:

2000 watt pure sine wave power inverter

,

3 kva online ups



No Break 2 Phase 240V / 208V / 110VAC UPS 6KVA - 20KVA Online UPS with LCD Display

High Frequency Online UPS Super Star Series 6-20Kva (2ph in/2ph out)



UPS Overview

1: UPS with 2 Phase 120V 208V 240Vac output especially used for Colombian Market

2: UPS with  EPO ( emergency power off )

3: N+X parallel redundancy, up to 6units

4: Frequency convertor mode (input 60Hz, output 50Hz)

5: Large LCD Display



Applications:

Servers, Data-center, critical network devices, Sensitive electronic equipment, Telecom…



Key Features:

1. DSP control, with excellent performance and comprehensive protections for loads;
2. Output power factor 0.9, offering stronger load capability;
3. Intelligent fan speed control, with 4 levels varying to load and temperature;
4. Wide input range, support kinds of generator;
5. Dual input AC source supportable
5. EPO (emergency power off);
6. Event log up to 100 events, recording UPS running time and critical memories;
7. Configurable output both 120/ 208/240Vac
8. N+X parallel redundancy, up to 6units
9. AC and cold start function;
10. Human friendly large LCD, with plenty operation information
11. Conformal coating PCB for more critical operation environment
12. Frequency convertor mode (input 60Hz, output 50Hz)
13. Intelligent fan running, varying according to load and temperature, 4 levels;
14. Multiple communication ports (optional)
15. Intelligent 10A DSP charger (optional)



Technical Specification



Model S6KL S6K S10KL S10K
Capacity(Kva/kw) 6KVA/5.4KW 10KVA/9KW
Input  PF ≥0.99
Input voltage Phase 2Lines
Low L-L:176 VAC ± 3% @ 100% load;130 VAC ± 3% @ 50% load
transfer
Low back L-L188 VAC ± 3% @ 100% load,142 VAC ± 3% @ 50% load
High transfer L-L 286 VAC ± 3%
High back L-L:270 VAC ± 3%
Input frequency 40-70hz
Battery
quantity external battery 20PCS*12V*7Ah external battery 20PCS*12V*9Ah
Back up time depend on external Battery 7mins at full load depend on external Battery 5mins at full load
DC voltage 240Vdc
Charge voltage 275Vdc
Recharging current 4A(10A optional) 1A 4A(10A optional) 1A
Output
Output  P.F 0.9
Output voltage 120/208/240Vac +/-1%(static)
Frequency 46~54Hz or 56~64Hz (Line mode)
50/60Hz ± 0.1Hz ( Battery mode)
Crest factor 3:1(max)
Wave distortion Less than 2%(linear load), Less than 4% Non-linear load
Over load 105%
Efficiency 88%(Line mode)
87%(AC mode)
Transfer time 0ms (AC-Battery);
0 ms(bypass-inverter)
Indicator
LCD Panel UPS status, Load level, Load watt, Load VA, Battery level, Input/Output voltage, output current, Bus voltage, Temp, and warning and fault code and events
Alarm
Battery Mode Sounding every 4 seconds( can mute)
Low Battery Sounding every second
Overload Sounding every second
Fault Continuously sounding
Management
Smart RS-232/USB Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC
Optional SNMP/AS400/USB
Environment
Operation Humidity 0-90 % RH (non-condensing) @ 0- 40°C
Noise Level Less than 55dBA @ 1 Meter Less than 60dBA @ 1 Meter
Physical
Net Weight (KG) 70 110 130 180
Gross Weight (KG) 95 135 155 205
Unit Dimension (D*W*H)mm 509*250*530 600×300×810 600*300*742 600*300*892
Packing (D*W*H)mm 650*363*765 680*360*960 720*420*920 720*420*1070




Competitive Advantages:


1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales

6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.

7: Free OEM & ODM Service

8: Competitive price, quality and mature products

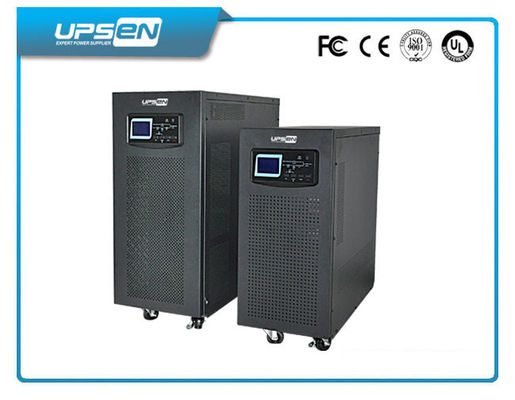

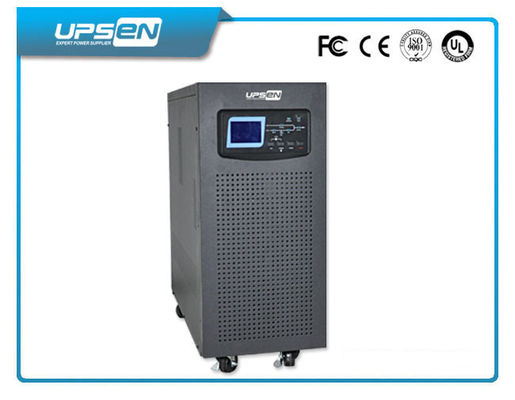

No Break 2 Phase 240V / 208V / 110V UPS 6KVA - 20KVA Online UPS with LCD Display 0No Break 2 Phase 240V / 208V / 110V UPS 6KVA - 20KVA Online UPS with LCD Display 1
