Product Details:
Payment & Shipping Terms:
|
| Materials: | Profile Aluminum + PC | Power: | 6w |
|---|---|---|---|
| Lumen: | 480~580lm | Power Factor: | >0.95 |
| Size: | 61*81mm | ETL NO.: | 4003956 |
| High Light: | par 46 led spotlight,led spotlight bulb |
||

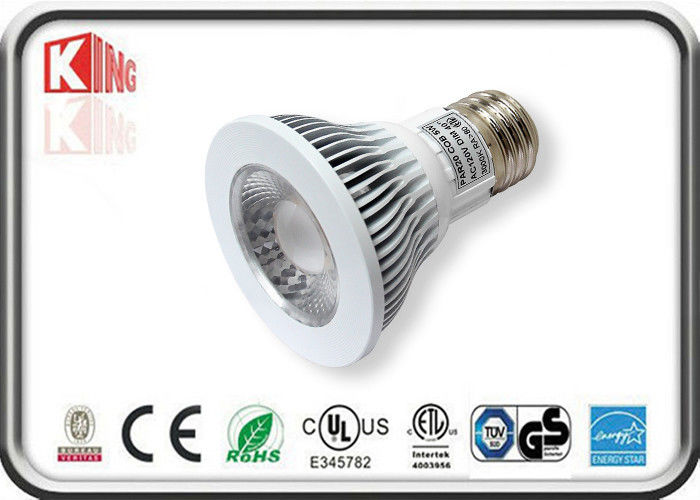

Dimmable AC 110V / 220V 6W PAR20 PAR38 LED Spotlight Bulb E26 36 Degree
Quick Dtail:
Description:
> Chips Brand: Epistar
> Power: 6W
> LED Quantity: 1PC COB
> Beam angle: 60°
> Power factor: >0.99
> Colors: Warm white/ Nature white/ Cool white
> Light efficiency: 90~110LM/W
> Length: 81mm
> Diameter: 61mm
> Gross Weight: 80g
> No flicker, outstanding heat dissipation.
How to install led par20?
Applications:
1). Store, plaza, mall, supermarket, department, flat and warehouse lighting.
2). Counter, display window, show room and museum lighting.
3). School, hospital, office, meeting room, home, residential area lighting.
4). Bar, restaurant, hotel, film cinema, coffee bar, dining room, hall and lobby lighting.
5). Parking ground, subway station, railway station, airport, and other indoor public places.
6). Other indoor occasions.
Specifications:
Model | KING-PAR20-T7 |
Type | ETL listed 6W COB PAR20 |
LED Type | COB 6W |
Input voltage | 110V/220VAC |
Dimension | 61*81mm |
Luminous Flux | 580lm |
Base | E27/ E26 optional |
Beam Angle | 60° |
Waterproof | IP20 indoor use only |
Emitting color | Warn white/ Natural white/ Cool white |
Color temperature | WW:2500-2700K;2600-2800K; |
NW: 4000-4500K; 4500-5000K | |
CW: 5500-6500K | |
Dimmable | Available |
Body materials | Aluminum +pc |
CRI | >65 |
Power Factor | >70% |
Working temperature | -20-40℃ |
Efficiency | >70% |
Net Weight | 80g |
Box size | 68*68*110cm |
Package | 100pcs/ctn ( 38*38*48cm) |
Gross weight | 15KG |
Certification | ETL 4003956 |
Why to choose Kingliming par20 LED Par Spotlight?
1. The production line from chip, driver, fixture to the final lamp is strictly managed;
2. High power LEDs, high lumen 140~180lm/LED;
3. Long lifespan 50000 hours, 10 times longer than halogen bulb;
4. Ultra energy efficient, up to 90%~100% energy saving;
5. Dimmable function is fairly stable. which it can up to 5%-100%;
6. Good quality aluminum lamp body with perfect heat sink;
7. Low consumption and efficient LEDs with high CRI and luminous flux;
8. Technical support based on our 8 years experience.
Communication with customers:
A: Hello, Can you help me ? it is dimmable?
B: Dear, We are professional led spotlight factory in china. Pleasure to help you. Yes. dimmable is available. Which is 5%~100%.
A:Which shipping partner is available to USA?
B: DHL, UPS, TNT, FEDEX, EMS are okay. Which shiping cost is cheaper and speed is good, i will suggestion to you. 3-4 days can arrive USA.
A: How long time for 5000pcs Par20 dimmable?
B: 10 Days is okay with laser Logo.
A: can we make color box and OEM Brand?
B: yes. We can help you design by your needs.
A: How long is your quality guarantee period
B: in usually, 3 years warranty.
FAQ:
Q1: When can I get your reply about my question?
A1: Will reply in 12 hours.
Q2: Why does my LED light bulb not work properly in extreme temperatures?
A2: Any temperature below 14 F or above 122 F may cause a LED bulb to flicker,dim,change color, or cease to function.Once the LED bulb is returned to an operational environment it should began to work properly.
Q3: What is the AC Voltage tolerance for our LED bulbs?
A3: Their AC voltage tolerance is +/- 10%.
Q4: Where can use the bulb?
A4: Suitable for DAMP locations and not for use in totally enclosed luminaries. Keep away from direct sunshine and high/low temperature and wet locations. Disconnect power supply before installing the bulb.
Q5: What kind of dimmer is compliant to?
A5: Compliant to Leading Edge Dimmer or Trailing Edge Dimmer. Leviton, Luton, TRIAC, PWN, Clipsal, PDL, Scheneider, HPM, Kiwi, CTL, Panosonic, Matsumoto, etc.
Q6: How can I get 3 years warranty service?
A6: Repairor replace bew bulb and delivery free shipping to you.
The limited warranty excludes defects caused by:
1.Damage caused by abuse, misuse or negligence 2. Used in an enclosed fixture without air flow.
3. Continuous use for 24 hours a day without break 4.Exposure to fire 5.Human destruction.
Q7:What is KING temperature?
A7: Warm white 2800-3000K, natural white 4000-4500K, cool white 5700-6300K, soft white 2700-3000K, bright white 3500-4100K, day light 5000-6500K.
Special color like 2700K, 2200K, 2300K, 7000K.
2500-2700K, 2700-2900K, 2600-2800K.
Q8:Can KING bulb pass EMC EMI CE 4000V high voltage?
A8: Yes, there have a GU10 can test actural EMC EMI CE and 4000V high valtage.
Q9:Can we get high CRI and high PF?
A9: Yes, CRI 83Ra, 93Ra and PF >0.9 .
Q10:Can we get support if we have our own market position?
A10: Please inform us your detailed mind on your market demand, we will discuss and propose helpful suggestion for you, to find the best solution for you.
