Product Details:
Payment & Shipping Terms:
|
| Product Name: | Outdoor Full Color LED Display | Pixel Pitch: | 16 Mm |
|---|---|---|---|
| Size Of Panel: | 256 X 256 | Brightness: | 8000 |
| Usage: | Advertising | Pixel Density: | 3906 |
| Weight: | 55kgs/m2 | ||
| High Light: | Full Color Led Signs,Led Outdoor Display Screen |
||
Advertising Full Color P16mm LED Display Panel Rental AC 220V / 110V
Description
Panel input format(with video processor), such as ,VGA,DVI,RGBHV, PbPr (HDTV),Composite, S-Video, TV . There are also interfaces for Sound signal and video signal. The gray level si 65536 level, and the brightness, contrast,saturation, chroma can be adjusted by manual and sensor. Show all sort of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously or asynchronously. Can be used outdoor in all kinds of circumstance, and excellent capability of antisepsis, waterproof. More faster to assemble or disassemble it without any tool.
specifications
1. Indoor led Display technical parameter
Pixel Density(pixel/㎡) | 3906 |
White Balance Brightness (cd/㎡) | ≥6000(adjustable) |
Max Power Consumption | 800W/cabinet |
Average Power Consumption | 400W/cabinet |
Color Temperature | 3200-9300(adjustable) |
View Angle | Horizontal 110°；Vertical 110° |
Best Viewing Distance(m) | 15m—200m |
Display Work Method | Static |
Digital Processing | 14 bit |
Gray Scale | 65536 levels per color |
Refresh Frequency (Hz) | ≥1200 |
Input Signal | Video: PAL/NTSC Option: VGA , Video , DVD,TV, SDI.HDMI etc |
Waterproof | Yes |
Working Temperature(ºC) | -20～+45 |
Humidity(RH) | 10% - 80% |
Stored Temperature (ºC) | -30～+60 |
Lifetime (50%Brightness)(Hours) | ≥100,000 |
Input Voltage(VAC) | AC 220(or 110V) |
Input Power Frequency(Hertz) | 50 to 60 |
Data Connection | Super CAT6 Cable or Fiber |
Operating System | Windows(98/2000/XP/Vista) |
Blind Spot Rate | ＜0.00001 |
Control Distance | CAT6 cable:150 meters; Single Fiber: Up To 10 Kilometers |
Panel Input Format (With Video Processor) | VGA,DVI,RGBHV, PbPr (HDTV),Composite, S-Video, TV |
Earth Leakage Current(mA) | ＜2 |
Pixel Configuration | DIP346 | Pixel Pitch | 16 mm |
| Module Resolution | 16x16 | Module Size(W*H) | 256mm x 256mm |
Weigth Per Module | 0.75kg | Max Power Consumption | 42w |
3. Indoor LED Display Cabinet
Cabinet Size(W*H) | 1024mm × 1024mm | Module Qty | 16 pcs |
Cabinet Resolution | 64 x 64 | Cabinet Area | 1.049㎡ |
Weight Of One Cabinet | 56 kg | Cabinet Pixel | 3906 |
Cabinet Flatness | ＜0.5/㎡ | Cabinet Material | Steel Cabinet |

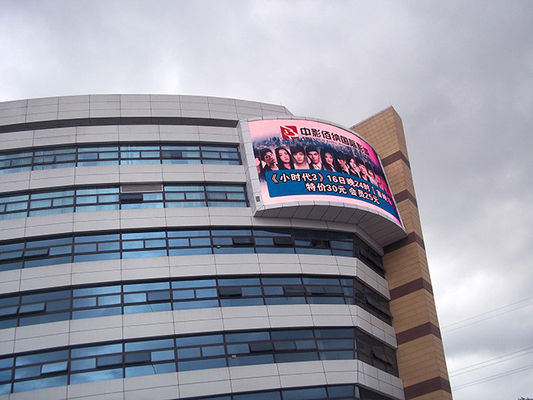

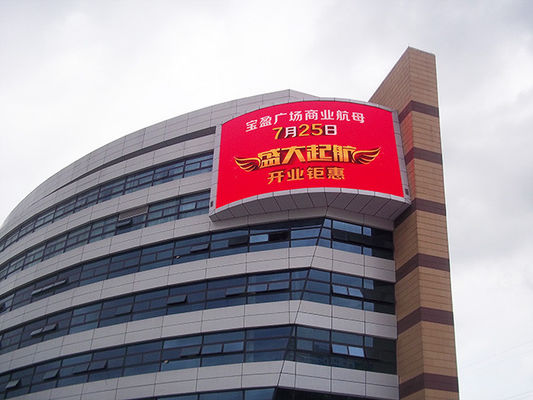

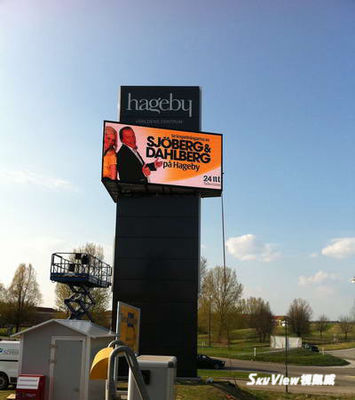

Applications
The RGB LED Display Are Very Popular In Outdoor Field. This Type Screen
Are Popular Used Outdoor Shopping Center ,Outdoor Building,Foodball Field,crossroad,
highway,Concert,airport etc;
competitive advantage
1. Good Sevice , 24/7 online support service.
2. Good Quality For Every LED Display Product.
3. Good Price.
4. High Quality Driving IC .
5. Red,Green And Blue LED Chips Incorporated Encapsulation ,Better Perspective.
6. Two Years Maintenance Service With Free.
