Mutiple Type Electrity Energy Portable Meter Test Equipment With Stable Harmonic Power

China Mutiple Type Electrity Energy Portable  Meter Test Equipment With Stable Harmonic Power supplier
Mutiple Type Electrity Energy Portable  Meter Test Equipment With Stable Harmonic Power supplier Mutiple Type Electrity Energy Portable  Meter Test Equipment With Stable Harmonic Power supplier

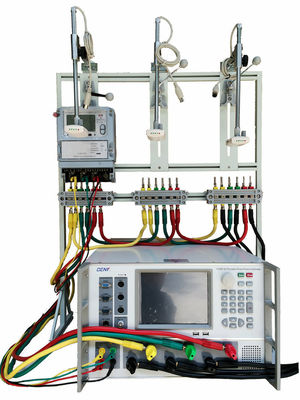

Large Image :  Mutiple Type Electrity Energy Portable Meter Test Equipment With Stable Harmonic Power

Product Details:

Place of Origin: China
Brand Name: GENY
Certification: ISO 9001
Model Number: YC99T-3C

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: negotiation
Packaging Details: Aluminum case with carton
Delivery Time: 15 days after order confirmed
Supply Ability: 50 PCS per month
Contact Now
Detailed Product Description
AC Voltage Output Range: 100V, 220V, 380V, 660V AC Current Output Range: 50mA, 200mA, 1A, 5A, 16.667A, 50A
Accuracy: 0.05% Stability: 0.02%/180s
Model: YC99T-3C Brand: GENY
Frequency Range: 40Hz – 70Hz Phase: Three Phase

Multiple Type Electricity Meter Test Equipment With Stable Harmonic Power

Specifications:

Voltage

Test voltage output (Phase-Neutral)

3* (0V – 450V)

Power of the voltage output

Max. 3*30A

Resolution

0.01%

Accuracy

0.1%

Stability

0.02%/120s

Distortion factor

< 0.3% for linear resistance load

Current

Test current output

3*(1mA – 120A)

Power of the current output

Max. 3*100VA

Resolution

0.01%

Accuracy

0.05%

Stability

0.02%/180s

Distortion factor

< 0.3% for linear resistance load

Phase angle

Range

0 -- 360°

Resolution

0.1°

Accuracy

0.2°

Frequency

Range

40Hz – 70Hz

Resolution

0.005Hz

Pulse output

High frequency output(CH)

1.666×105 Hz

Low frequency output(CL)

5×10-5×CH

Pulse input

Input channel

3

Input frequency

Max. 20Hz

Other

Voltage Supply

220V±10% 50/60Hz±2Hz

Ambient temperature

-10°C -- +40°C

Relative humidity

35% -- 85%

Dimensions (W×H×D) (mm)

445×180×680

Weight (kg)

40



Description:

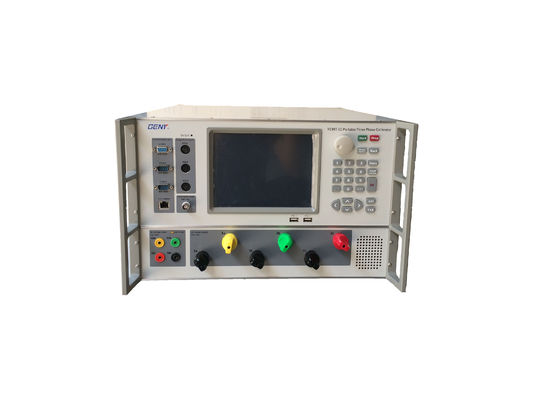

YC99T-3C is a portable three phase meter testing equipment(calibrator), suit for lab and local use. YC99T-3C calibrator utilizes the testing technology with the lasted development of the energy meter calibration. YC99T-3C has exactly software function as YC99T-3C calibration, but different voltage and current output.

YC99T-3C calibrator supports DLT-645(2007) communication protocol , and can complete demand indication error, demand period error, time switching error, rate period energy indication error and other multi-function test projects . YC99T-3C Calibrator has constant temperature crystal oscillator, which is able to verifies the daily time error of electric energy meter.

YC99T-3C is designed with fantastic panels screen and wiring arrangement. The front and rear panel are designed to be easy-operating.

YC99T-5C not only procides normal meter testing, it also can be used as harmonic power output equipment ,which is able to create stable harmonic output .

YC99T-5C and YC99T -3C has similar function, but different in Voltage and current output ,YC99T-3C has more channel of current and voltage.







  1. Testing mode: active power, reactive power
  2.  Meter under testing: 3P4W, 3P3W, 1P2W
  3. The calibrator is combined by a power source and calibration electronic instrument with wide current and voltage output range.
  4. Starting test and creeping test are supported
  5. Test data can be managed by computer via Rs232 interface
  6.  YC99T-5C not only can be operated by equipment but also can be controlled by PC
  7.  Calibrate energy meters automatically, which including items, such as , preheating, starting, creeping, error, influence, quantity test etc.

Primary Competitive Advantages:

  1. High quality product
  2. Convenient operation
  3. strong and stable harmonic power source output
  4. Multiple-type of active and reactive energy meter test

 Applications:

  1. Nation-level utility companies
  2. Governmental bureaus of metrology
  3. Big energy meter manufacturers
