8KM Long Transmission Range 8 Channels CCTV Video Transreceiver 1.2Ghz Video Sender

China 8KM Long Transmission Range 8 Channels CCTV Video Transreceiver 1.2Ghz Video Sender supplier
8KM Long Transmission Range 8 Channels CCTV Video Transreceiver 1.2Ghz Video Sender supplier 8KM Long Transmission Range 8 Channels CCTV Video Transreceiver 1.2Ghz Video Sender supplier

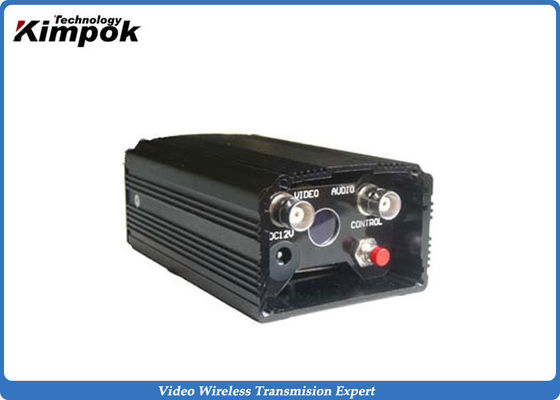

Large Image :  8KM Long Transmission Range 8 Channels CCTV Video Transreceiver 1.2Ghz Video Sender

Product Details:

Place of Origin: China
Brand Name: Kimpok
Certification: CE/FCC/ROHS
Model Number: KP-A3

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: 3 working days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 1000PCS per month
Contact Now
Detailed Product Description
Frequency: 0.9G/1.2G/1.3G Number Of Channels: 8CHS
Transmit Power: 3000mW Voltage: DC 12V
Current: 600mA Transmit Distance: 5000~8000m


8KM Long Transmission Range 8 Channels CCTV Video Transreceiver 1.2Ghz Video Sender

Description:

KP-A3 wireless video transmission equipment is an excellent all aspects of performance are more varieties, and its large power margin, more suitable for complex physical environment. The use of 0dB (Original small antenna) in full to the antenna, the open area to ensure the transmission 3000-6000m or so, if the raising of the high gain directional antenna, increased to 10KM away. And transmitter technology is superb and the special metal is more conducive to heat, more suitable for long hours of work. Signal input with common AV interface, it can easily work with camera, VCD, DVD and all other conventional AV interfaces compatible.

It's not only a professional wireless CCTV transmitter and receiver for CCTV security projects but also used in the line of FPV system, UAV, RC airplanes/helicopters, Video and Data signals at the same time in cars of Unmanned Equipment.


Features:

1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC power supply, easy to use.
8. Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.


Specification


Voltage

DC 12V

Current

600mA

Frequency

0.9G/1.2G/1.3G

Number of channels

4CHs/8CHs Optional

Transmit Power

3000mW

Video Output

1 Vp-p(FM)

Audio Output

1 Vp-p(FM)

Audio Carrier Ware

5.5M  6.0M

Distance (Open environment)

5000~8000KM

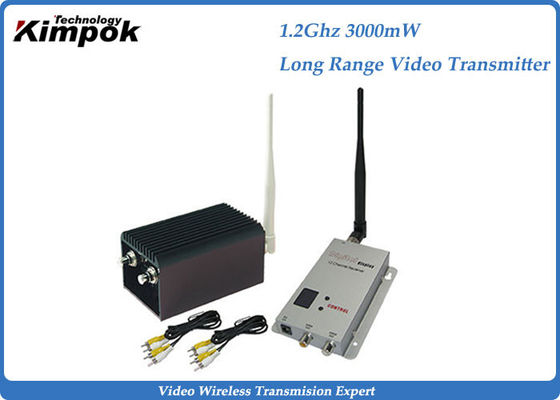

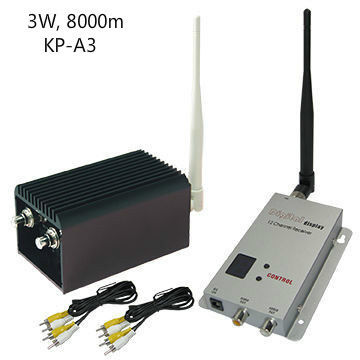

Overall Configuration

Transmitter, receiver, AV cable, power supply, antenna

Temperature

-10℃ ~ +50℃

Transmitter Weight

388g

Receiver Weight

120g

Dimensions (L * W * H)

Transmitter:111*67*60mm. Receiver:116*80*21mm

Box size (L * W * H)

245*160*65mm




Installing:

A. The line has 5 plugs for connecting transmitter, camera and power supply
One of the line's points connecting to transmitter, another has 4 plugs (red, yellow, white, black)
Red plug connect DC 12V/1000mA, can also connect battery
White and yellow plug connect to camera's audio and video apart
And black one connects camera's power input jack


B. Push the control button, can change the channel of receiver
Meanwhile, push it and last several seconds, can close the digital play and turn into saving power model
Then push it again, can replay
The function can be able to lock channel, so as to avoid mistaking operation


C. Set the same channel with transmitter and receiver


Kimpok is specialized in COFDM, TDD and Analog wireless video transmission products for over 10 years, including Wireless Video Transmitter, HD Video Wireless Transmitter and Receiver, quality UAV/UGV Wireless Video Transmitter, and CCTV Wireless Sender, products are applied widely among Public Security Bureaus, Forest Fire Prevention Departments, Maritime Bureaus, Oil Field, Construction Sites, Tunnels, UAV, UGV, Automobiles and so on.
