8Channel Full HD CCTV DVR Kit 1280 x 720 1 Megapixel CCTV Cameras

China 8Channel Full HD CCTV DVR Kit 1280 x 720 1 Megapixel CCTV Cameras supplier

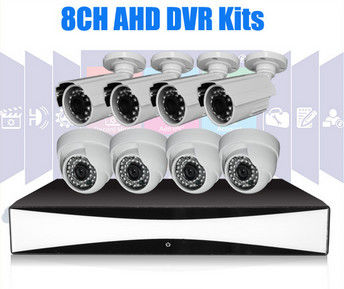

Large Image :  8Channel Full HD CCTV DVR Kit 1280 x 720 1 Megapixel CCTV Cameras

Product Details:

Place of Origin: Made in China
Brand Name: SZSINOCAM
Certification: CE,FCC,ROHS
Model Number: SN-AHDVK08-01

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: standard color box pakage ,1pcs /carton
Delivery Time: 3-5 days for sample order
Supply Ability: 2000pcs/Month
Contact Now
Detailed Product Description

8Channel Full HD CCTV DVR Kit 1280 x 720 1 Megapixel CCTV Cameras





Detail:



  •    1MP  high resolution
  •    Long distance coaxial transmission of HD video
  •    AHD/NVR/DVR Three-in-one
  •    Support multi-mode switch





Spec for Camera :





General functionalities
Image sensor 1/4” progressive scan CMOS
Min. illumination 0.01 lux @F1.2, AGC ON, 0 lux with IR on
Shutter time AUTO/ 1/50(1/60)-1/100,000sec
Lens 2.8 ~ 12 mm @F1.4, angle of view: 98.4° ~ 30.2°
Lens mount Φ14
Day & night Auto with IR ( default) / color / B&W (OSD switching)
TV system PAL/NTSC
Digital noise reduction 2DNR,3DNR
Backlight compensation Auto
White balance Auto
SNR ≥50dB
Video standard AHD : AHD CVBS / HD-TVI : TVI CVBS.
Optional increasing function Optional replacement increased OSD menu line using the camera menu functions, the default is No.
Resolution
Sensor pixel 1280(H)*800(V)
Effective resolution 1280(H)*720(V)
Video output AHD:AHD CVBS/1.0Vp-p/75Ω HD-TVI : TVI CVBS/1.0Vp-p/75Ω
Image settings Saturation, brightness, contrast, sharpeness adjustable through the OSD menu function.
Optional replacement increased OSD menu line using the camera menu functions, the default is No.
Operating conditions -30 °C ~ 60 °C (-22°F ~ 140 °F) humidity 95% or less (non-condensing)
Power supply 12 VDC ± 10%
Power consumption Max. 5.5W (7W with ICR on)
Ingress protection level IP66
IR range 35m
Dimensions 300*100*85
Weight 1000g









Spec for AHD DVR :





Video/Audio input
Video compression H.264
Analog video input 8PCS BNC Port(Level: 1.0Vp-p, impedance : 75Ω)
Audio compression ADPCM
Audio input 4PCS RCA Port(Level : 2.0Vp-p, impedance : 1kΩ)
Two-way audio input 1PCS RCA Port( line level , impedance : 1kΩ)
Video/Audio output
Multi-mode switch AHD: 8CH*720P Analog: 8CH*960H AHD+Analog:4CH*720P+4CH*960H IPC: 8CH*720P
HDMI/VGA output 1024x768,1280*720,1280x1024
CVBS output 1PCS BNC Port(Level: 1.0Vp-p, impedance : 75Ω)
Encording resolution D1/CIF/720P/960P
Frame rate NTSC:1~30FPS/S;PAL:1~25FPS/S
Video bit rate 256KB/384KB/512KB/640KB/768KB/1MB/1.5MB/2MB/2.5MB/3MB/4MB/5MB/6MB/8MB
Audio output 1PCS RCA Port( line level , impedance : 1kΩ)
Audio bit rate 16kpbs
Dual-stream YES
Stream type combine streams/ video stream
Playback resolution 4CH AHD 720P@100fps 8ch D1@200/240fps
Synchronous palyback D1/CIF/720P/960P
Hard disk
SATA 1*SATA
eSATA No
Capacity each port support max 4TB HDD
External interface
Network interface 1PCS RJ45 10M / 100M adaptive Ethernet port
Serial interface 1PCS RS485
USB interface 2*USB2.0
Alarm in/out NO
General
Power supply DC12V
Comsumption ≤18W
Working temperature -10℃--+55℃
Working humidity 10%--90%
Chassis 0.8U
Dmensions(W×D×H) 255*215*45mm
Weight 0.86kg









Packing of 8ch AHD DVR kit:



* 1pcs AHD DVR+ 8pcs of AHD Cameras
* 8pcs 18M customized cables
* Mouse, CD, user manual
* 12V, 5A power supply
* Color box package
