H.264 D1 8 / 16 Channel Digital Video Surveillance Recorder For CCTV Camera

China H.264 D1 8 / 16 Channel Digital Video Surveillance Recorder For CCTV Camera supplier

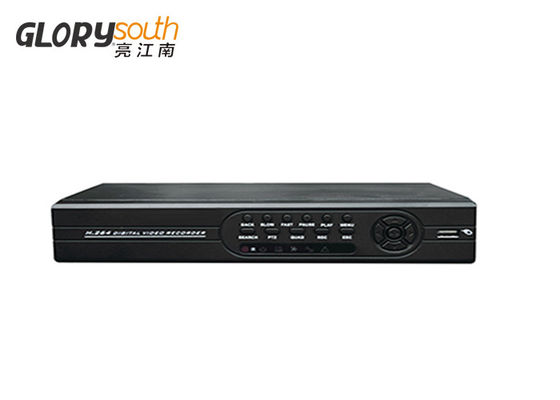

Large Image :  H.264 D1 8 / 16 Channel Digital Video Surveillance Recorder For CCTV Camera

Product Details:

Place of Origin: China
Brand Name: Glory South ( OEM / ODM Available )
Certification: CE / ROHS / FCC
Model Number: DVR-HA04CA

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs for Each Model
Price: $21.0 ~ $50 ( EXW Price )
Packaging Details: Packed in Carton ( 10 PCS / Carton)
Delivery Time: 3 - 7 Working Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 30000 Set One Month
Contact Now
Detailed Product Description
Category: 4 / 8 / 16 CH D1 DVR Material: Metal
Color: Black Dimensions: 260 X 210 X 43mm ( W * D * H )
Weight: 2.2KG ( Not With HDD ) Power Supply: DC 12V, 2A

Top Selling Product:



4CH D1 DVR H.264 Digital Video Recorder for CCTV Camera 4 8 16 Channel D1

Top Choice for this Series:

  1. 4CH / 8CH / 16CH D1 DVR for Analog Surveillance Cameras
  2. Support iPhone / Android / IE/Window Mobile for Real time Video Viewing

  3. H.264 Standard HD DVR CCTV System

  4.

    Popular Design



Specifications (4CH D1 as Example) :


Main Processor

HISILICON Hi3515A chip

System Resource

Pentaplex: Live recording, Playback, Backup, Remote access, PTZ control, Mobile monitoring

Control Mode

Front panel, USB mouse, IR remote control, Keyboard, Network

Video Standards

PAL(625 line,50 f/s);NTSC(525 line,60 f/s)

Coding capacity

100/120fps 4D1@25fps

Motion Detection

Zones:396(22*18)detection zones, many Levels of Sensitivity Setting

Surveillance Quality

PAL,D1(704×576); NTSC,D1(704×480)

Video

4CH BNC Input 1CH TV Output 1CH  VGA Output

Audio

4CH RCA Input,1CH RCA Output

Alarm

NO

Play back

4CH at the same time

PTZ

1*RJ485 Support PELCO-D,PELCO-P Procotol

USB

2 * USB2.0

Mobile Phone

Support iPhone, Symbian OS, Blackybreey and Android Mobile phone

HDD Capacity

Up to 3TB,SATA Interface HDD*1

Network Interface

1*RJ45,100Mbps Ethernet

Upgrade

USB DISK,Network

Backup

USB DISK,Network

User Extend

Design boot screen LOGO by yourself (Optional)

Power Supply

12V/2A

Working Environment

-10℃~+55℃/10~90%RH/86~106Kpa




Why Choose Glory South?

In fact, most of the manufacturers sell with at least 20% profit while we sell with merely 5% profit for exactly same products.  At the same time, we provide 3 years warranty.



We aim to support 1000+ CCTV companies to grow to be BIG WHOLESALERS in their countries or regions by 2017!! Would like to join us?



1. Top reliable supplier (see company introduction below)

2. Much much lower cost

3. Same or even better quality

4. Shorter Delivery Time

5. Longer warranty (3 Years)









Brief Introduction to Glory South:



Glory South is professional CCTV products manufacturer in China. Our company owns several China's leading CCTV products Brands in China and has won the 'China's Top 10 CCTV Products', 'China's Top 10 Most Popular CCTV Products' and etc. We produce and sell more than 100k units of CCTV products each month and due to the large production, we have controlled the purchase of materials, human cost etc at the lowest cost. Our products are widely used by Chinese government and we are the authorized supplier to China's police station and other government organizations. We have more than 300 agents/wholesalers in domestic market under very severe competition. All of our products have CE/FCC/RHOS certificates and our products are widely sold all over the world.
