Pure Sine Wave Hybrid Solar Power Inverter for Household With 12 / 24 / 48VDC

China Pure Sine Wave Hybrid Solar Power Inverter for Household With 12 / 24 / 48VDC supplier
Pure Sine Wave Hybrid Solar Power Inverter for Household With 12 / 24 / 48VDC supplier Pure Sine Wave Hybrid Solar Power Inverter for Household With 12 / 24 / 48VDC supplier Pure Sine Wave Hybrid Solar Power Inverter for Household With 12 / 24 / 48VDC supplier

Large Image :  Pure Sine Wave Hybrid Solar Power Inverter for Household With 12 / 24 / 48VDC

Product Details:

Place of Origin: China
Brand Name: UPSEN
Certification: CE, ISO, RoHS
Model Number: Cosmos Star Series 1-6Kw

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: Cartons & Wooden Pallet
Delivery Time: 7-15 Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50,000pcs/Month
Contact Now
Detailed Product Description
Output Type: Single Output Frequency: 50/60HZ
Type: DC/AC Inverters Color: White
Output Wave Type: Pure Sine Wave Input Voltage: 12/24/48VDC

Pure Sine Wave Hybrid Solar Inverter for Household with 12/24/48VDC
Model: Solar Inverter Controller All in one Cosmos Star Series 1000W-6000W (1ph in/1ph out)

Hybrid Inverter Overview
1 .  Pure sine wave output
2 .  Buit-in MPPT Solar mppt charger controller 20/30/40/50/60A
3 .  Configurable AC/SOLAR input priority via LCD setting
4 .  Compatible to mains Voltage or generator power
5 .  High frequency full bridge design

Key Features:

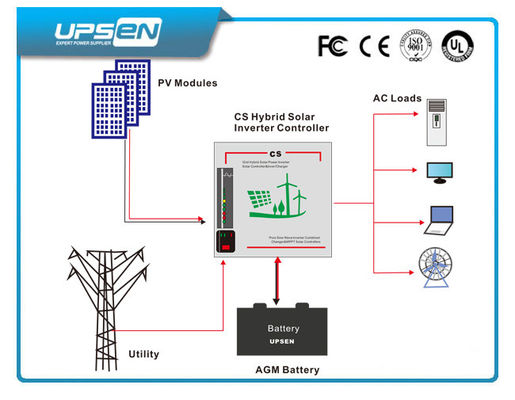

1: Professional off grid solar system solution, which is a combination of big power inverter and solar controller
2: Working modes switches automatically- AC Grid bypass mode, inverter mode, AC Charging mode, solar charging mode
3: Configurable AC/Solar input priority via LCD setting
4: Remote control & RS232 communication port
5: Hybrid design (switch OFF GRID/GRID TIE)
6: Smart battery charger design for optimized battery performance
7: DIP switch optional: Selectable charging voltage for various battery type
8: Low power consumption, high conversion efficiency
9: AC Grid priority & battery priority working mode as selectable
10: AC grid mode: AC Bypass supplies load when AC is normal, battery invert AC supplies load when AC is off
11:  High speed MPPT for real time power tracking and improved energy harvesting
12: LCD&LED Screen for option
13: Easy to install.To configure a solar system, users just need to connect it with solar panels and batteries
14. Overload and short circuit protection
15. Strong load-carrying ability, low failure rate, easy to maintenance and long service life (under proper operation, it can last at least 5 years)



Technical Specification


Mode NO.

CS600

CS1000

CS2000

CS3000

CS4000

CS5000

CS6000

Rated Power

600W

1000W

2000W

3000W

4000W

5000W

6000W

AC INPUT

Phase&Waveform

                                                    Single pahse&Pure Sine Wave

Voltage

                                             110VAC/120VAC/220VAC/230VAC/240VAC

Fequency

                                                       50HZ/60HZ(Auto adjust)

Voltage range

                                                       95-127VAC/194-253VAC

Frequency range

                                                          48-54HZ/58-64HZ

AC Output

Waveform

                                                Pure Sine wave and single phase

Voltage

                                         110VAC/120VAC/220VAC/230VAC/240VAC

Frequency

                                                                 50HZ/60HZ

Peak Power

1800W

3000W

6000W

9000W

12000W

15000W

18000W

Battery


Battery DC

12/24VDC

12/24VDC

          12/24/48VDC

                    24/48VDC

MAX charging cunrrent

                                                                             20A-75A

Battery type

                                                            GEL,AGM,Sealed lead acid

MPPT Controller


PV Input

                                                    15-30VDC For 12VDC/30-55VDC For 24VDC

MAX charging cunrrent

                                                                      20/30/40/50/60AMP

MAX Ouput current

                                                                15A

for DC laod

Transfer efficiency


MPPT efficiency

                                                  more than 95%

Line Mode

                                                   more than 95%

Battery Mode

                                                    more than 85%

Power Saver

                                            Available when load is less than 50A

Transfer time

                                                            10ms

Indicator


7-LED Indicators

Left to right:1.Line Mode(Green),2.Inverter Mode(Green),Charging Mode(Yellow),4.Full Charged(Green),

5.Over Temp(Red),6.Over Load(Red),7.Saving Mode(Green)

2-LED Indicators on MPPT

Power/CHG Mode

Dimension

486*400*181mm

486*432*181mm

Weight

22KG

26KG

28KG

33KG

45KG

52KG

56KG


Competitive Advantages:
1: Three Years' warranty for pure sinewave inverter, and 1% free set or 2% free PCB Boards
2: Good after-sales service, we will be full responsible for any faults caused by our side
3: Professional experience in power field more than 10 years
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
