Product Details:
Payment & Shipping Terms:
|
| Phase: | Single | Type: | DC / AC Inverter |
|---|---|---|---|
| Power: | Solar Power | Application: | UPS |
| Color: | Black Or White | Output Power: | >1000W |
| Nature Of Source Flow: | Active Inverter | Nature Of Wave String: | Sine Wave Inverter |
| High Light: | solar power inverter for home,all in one Inverter |
||
Off Grid Solar Power Inverter With Microprocessor Control And Convert Dc Power To Ac Power
Product Description

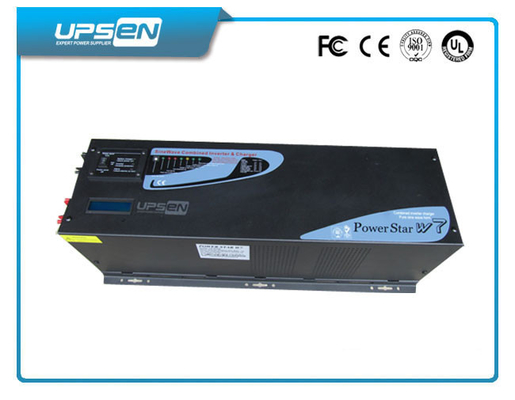

1:Power Star W7 Inverter with two colors
2:Inverter with pure sine wave output
3:Power Star W7 Inverter is low frequency Inverter
4:Pure Sine Wave Low frequency Inverter built-in AC Charger

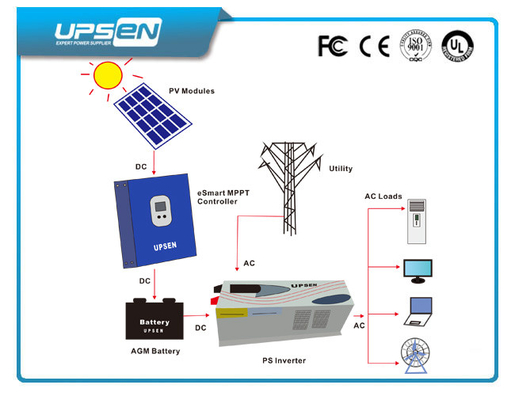

Inverter Application
UPSEN Power Star Series Inverter can be used for various home appliances, office equipment,
Solar power system, and other equipments which use single phase power
Inverter Key Features
1: Microprocessor control guarantees high reliability
2: Bypass without battery connected
3: Remote control function
4: Protection against: Over load, over temperature, over charging, low battery
5: Reverse connection(optional by hard connector)
6: Blackouts
7: Pure sine wave output (THD< 3%), available for sensitive loads
8: High efficiency up to 95% under line mode, and 88% for Battery Mode
9: Fast and powerful charger with 35A and 70A
10: 4-step progressive charging, 7 battery type selector
11: Accept generator's energy output
12: Automatically transfer between battery and line modes
Power Star Series |
|||||||
| Model No. | PS1000 | PS2000 | PS3000 | PS4000 | PS5000 | PS6000 | |
| Nominal Power | 1000W | 2000W | 3000W | 4000W | 5000W | 6000W | |
| AC Input | |||||||
| Waveform | Pure Sine Wave | ||||||
| Voltage | 120VAC/230VAC | ||||||
| Acceptable Voltage | 194-243VAC164-243VAC(wide mode) | ||||||
| Line Low Transfer | 85V±4%/184(154 wide mode±4%) | ||||||
| Line Low Return | 95V±4%/194(164 wide mode±4%) | ||||||
| Line high Transfer | 135V±4%/253±4% | ||||||
| Line high Return | 127V±4%/243±4% | ||||||
| Frequency | 50Hz or 60Hz (Auto sensing) | ||||||
| Line Low Transfer | 47Hz for 50Hz, 57Hz for 60Hz | ||||||
| Line high Transfer | 55Hz for 50Hz, 65Hz for 60Hz | ||||||
| AC Output | |||||||
| Waveform | Pure Sine Wave (bypass mode sync to input) | ||||||
| Voltage | 120/220/230/240VAC (bypass mode sync to input) | ||||||
| Voltage Regulation | ±10%rms (bypass mode sync to input) | ||||||
| Frequency | 50Hz±0.3Hz (bypass mode sync to input) | ||||||
| Peak Power | 3 times of rating power | ||||||
| Short Circuit Protection | Yes,shutdown after 10ms | ||||||
| Power Factor | 0.9-1.0 | ||||||
| DC Input | |||||||
| BatteryVoltage | 12V/24V | 12V/24V/48V | 24V/48V | ||||
| Minimum Start Voltage | 10V for 12V,20V for 24V,40V for 48V | ||||||
| Low Battery Alarm | 10.5V for 12V,21V for 24V,42V for 48V | ||||||
| Low Battery Transfer | 10V for 12V,20V for 24V,40V for 48V | ||||||
| High Voltage Alarm | 16V for 12V,32V for 24V,64V for 48V | ||||||
| Max Charging Current | 35A/70A | ||||||
| Over Charge Voltage | 15.7V for 12V,31.4V for 24V,62.8V for 48V | ||||||
| Transfer Efficiency | |||||||
| Line Mode | > 95% | ||||||
| BatteryMode | >88% | ||||||
| power saver | Available when the load is less than 25 Watts | ||||||
| Indicators | |||||||
| 7-LED Display | From the right to the left,LED1 line mode (green lighting) LED2 inverter mode | ||||||
| (green lighting). LED3 charging mode (yellow lighting)/ LED4 Fully charged | |||||||
| (green lighting). LED5 over heat shutdown(red lighting)/LED6 Overloaded | |||||||
| shutdown(red lighting)/LED7 Saving Mode (green lighting) | |||||||
| 3-LED Display | Charging Mode(green lighting)/inverter mode(green lighting)/ Alarm (red lighting) | ||||||
| Switch selector | Saving Mode is on/off when push the switch forwards/backwards, keeping it horisontal is turning the inverter off. | ||||||
| Audible Alarm | Sounding when the heatsink's tem is over 105Cand shutdown after 30 seconds. | ||||||
| Protections | low battery/over charging/over temp/over load | ||||||
| Communications | RS-232/USB(custom-made) | ||||||
| Enviromental | |||||||
| Operating Environment | 0-40C,0-90%RH(non-condensing) | ||||||
| Audible Noise | <60dB | ||||||
| Physical | |||||||
| Net Weight(KG) | 18 | 20 | 22 | 35 | 38 | 40 | |
| Dimension L*W*H(mm) | 442*218*179mm | 598*218*179mm | |||||
| *Specification are subject to change without prior notice | |||||||
