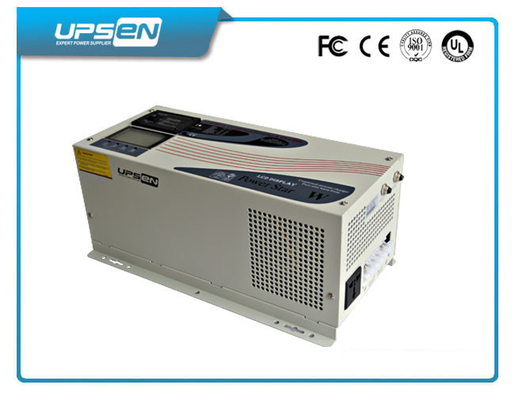

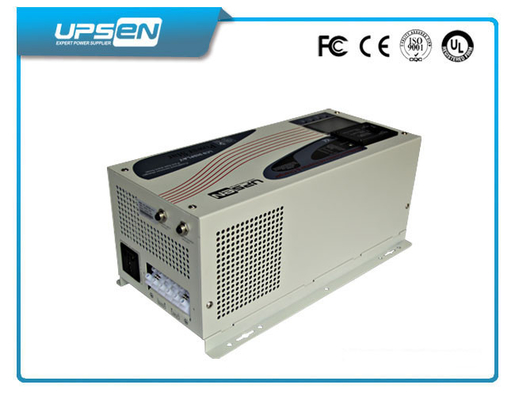

Low Frequency Dc To Ac Solar Power Inverter 8kw 10kw 12kw With Pure Sine Wave Output

China Low Frequency Dc To Ac Solar Power Inverter 8kw 10kw 12kw With Pure Sine Wave Output supplier
Low Frequency Dc To Ac Solar Power Inverter 8kw 10kw 12kw With Pure Sine Wave Output supplier Low Frequency Dc To Ac Solar Power Inverter 8kw 10kw 12kw With Pure Sine Wave Output supplier

Large Image :  Low Frequency Dc To Ac Solar Power Inverter 8kw 10kw 12kw With Pure Sine Wave Output

Product Details:

Place of Origin: China
Brand Name: UPSEN
Certification: CE & ISO Certificate
Model Number: Power Star Series 1-10Kw

Payment & Shipping Terms:

Minimum Order Quantity: 5 pcs
Price: Negotiation
Packaging Details: Carton/Pallet
Delivery Time: 15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 PCS/Mounth
Contact Now
Detailed Product Description
Phase: Single Type: DC / AC Inverter
Power: Solar Power Application: UPS
Color: Black Or White Nature Of Source Flow: Active Inverter
Nature Of Wave String: Sine Wave Inverter Output Power: >1000W

Low Frequency Dc To Ac Solar Power Inverter 8kw 10kw 12kw With Pure Sine Wave Output put





Product Description


1:Power Star W7 Inverter with two colors
2:Pure Sine Wave Low frequency Inverter built-in AC Charger
3:Inverter with pure sine wave output
4:Power Star W7 Inverter is low frequency Inverter


Inverter Application
UPSEN Power Star Series Inverter can be used for various home appliances, office equipment,
Solar power system, and other equipments which use single phase power

Inverter Key Features

1: Accept generator's energy output
2: Automatically transfer between battery and line modes
3: Microprocessor control guarantees high reliability
4: Bypass without battery connected
5: Remote control function
6: Protection against: Over load, over temperature, over charging, low battery
7: Pure sine wave output (THD< 3%), available for sensitive loads
8: High efficiency up to 95% under line mode, and 88% for Battery Mode
9: Fast and powerful charger with 35A and 70A
10: 4-step progressive charging, 7 battery type selector
11: Reverse connection(optional by hard connector)
12: Blackouts




Power Star Series

Model No. PS1000 PS2000 PS3000 PS4000 PS5000 PS6000
Nominal Power 1000W 2000W 3000W 4000W 5000W 6000W
AC Input
Waveform Pure Sine Wave
Voltage 120VAC/230VAC
Acceptable Voltage 194-243VAC164-243VAC(wide mode)
Line Low Transfer 85V±4%/184(154 wide mode±4%)
Line Low Return 95V±4%/194(164 wide mode±4%)
Line high Transfer 135V±4%/253±4%
Line high Return 127V±4%/243±4%
Frequency 50Hz or 60Hz (Auto sensing)
Line Low Transfer 47Hz for 50Hz, 57Hz for 60Hz
Line high Transfer 55Hz for 50Hz, 65Hz for 60Hz
AC Output
Waveform  Pure Sine Wave (bypass mode sync to input)
Voltage 120/220/230/240VAC (bypass mode sync to input)
Voltage Regulation ±10%rms (bypass mode sync to input)
Frequency 50Hz±0.3Hz (bypass mode sync to input)
Peak Power 3 times of rating power
Short Circuit Protection Yes,shutdown after 10ms
Power Factor 0.9-1.0
DC Input
BatteryVoltage 12V/24V 12V/24V/48V 24V/48V
Minimum Start Voltage 10V for 12V,20V for 24V,40V for 48V
Low Battery Alarm 10.5V for 12V,21V for 24V,42V for 48V
Low Battery Transfer 10V for 12V,20V for 24V,40V for 48V
High Voltage Alarm 16V for 12V,32V for 24V,64V for 48V
Max Charging Current 35A/70A
Over Charge Voltage 15.7V for 12V,31.4V for 24V,62.8V for 48V
Transfer Efficiency
Line Mode > 95%
BatteryMode >88%
power saver Available when the load is less than 25 Watts
Indicators
7-LED Display From the right to the left,LED1 line mode (green lighting) LED2 inverter mode
(green lighting). LED3 charging mode (yellow lighting)/ LED4 Fully charged
(green lighting). LED5 over heat shutdown(red lighting)/LED6 Overloaded
shutdown(red lighting)/LED7 Saving Mode (green lighting)
3-LED Display Charging Mode(green lighting)/inverter mode(green lighting)/ Alarm (red lighting)
Switch selector Saving Mode is on/off when push the switch forwards/backwards,   keeping it horisontal is turning the inverter off.

Audible Alarm Sounding when the heatsink's tem is over 105Cand shutdown after 30 seconds.
Protections low battery/over charging/over temp/over load
Communications RS-232/USB(custom-made)
Enviromental
Operating Environment 0-40C,0-90%RH(non-condensing)
Audible Noise <60dB
Physical
Net Weight(KG) 18 20 22 35 38 40
Dimension L*W*H(mm) 442*218*179mm  598*218*179mm
*Specification are subject to change without prior notice
