40Watt 3.3A Standard 12 Volt LED Power Supply For LED Strip Light

China 40Watt 3.3A Standard 12 Volt LED Power Supply For LED Strip Light supplier

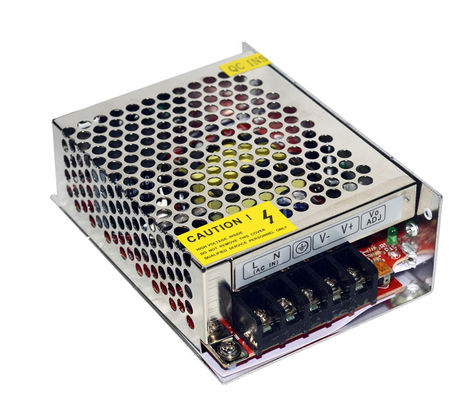

Large Image :  40Watt 3.3A Standard 12 Volt LED Power Supply For LED Strip Light

Product Details:

Place of Origin: Shenzhen China
Brand Name: DongDaHua
Certification: CE & ROSH
Model Number: S-40-12

Payment & Shipping Terms:

Minimum Order Quantity: 10
Packaging Details: As for your requirement
Delivery Time: As per your order quantity
Payment Terms: T/T & L/C
Supply Ability: 8000 Pieces/Day
Contact Now
Detailed Product Description



40Watt 3.3A Standard 12 Volt LED Power Supply For LED Strip Light





Quick detail:



Power: 40W

Current: 3.3A

Output: DC 12V-24V

Input: 176-264VAC

Efficiency : 80%

Warranty: 2 years





Description:



Double AC input voltage controlled by switch

Protection: short-circuit, overload, overheat

Naturally air cooled

LED power indicator

100% full-load aged

Holds on 300 VAC surge for 5 sec.

Working temperature up to 60℃

5G vibration tested

High efficiency, long life span, and high reliability




Competitive Advantage:



· built-in EMI filter

· 100% load test

· Full range of input voltage

· output voltage accurate and stable

· Output over-voltage,  over-current and short-circuit protection

· Output low ripple and noise

· Two year warranty

· Average working no trouble >50, 000 hours



Specifications:

Product No. S-40-3.3 S-40-5 S-40-12 S-40-15 S-40-24 S-40-48
Output DC voltage 3.3V 5V 12V 15V 24V 48V
Capacity of current 8A 8A 3.3A 2.67A 1.67A 0.83A
Range of current 0-8A 0-8A 0-3.3A 0-2.67A 0-1.67A 0-0.83A
Power 26W 40W 40W 40W 40W 40W
Noise max. 2 100mVp-p 100mVp-p 150mVp-p 180mVp-p 240mVp-p 250mVp-p
Voltage adjustment 2.9-3.3v 4.8-5.4V 10.8-13.2V 13.5-16.5V 22-27.6V 44-52V
Voltage accuracy 3 ±3% ±2% ±1% ±1% ±1% ±1%
Linear Adjustment 4 ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Load adjustment 5 ±2% 1.50% ±0.5% ±0.5% ±0.5% ±0.5%
Start and rise time 1000ms,30ms/230VAC 1000ms,30ms/110V
Hold time (Typ) 50ms/230VAC  10ms/115AC
Input Voltage range 90-264VAC/120-370VDC
Frequency range 47-63HZ
Efficiency (Typ) 70% 75% 80% 81% 82% 82%
AC current (Typ) 0.92A/90V  0.38A/220V
Surge current (Typ) Cold start: 65A/230VAC
Current leak <2mA/240VAC
Protection Overload Greater than 105% of capacity
Protection mode: hiccup, automatic restoration after abnormity removed
Overvoltage

Overheat Overheat protection starts when temperature in transistor over 140℃
Automatic restoration when temperature is back normal
Environment Working temp. -20~+60℃ (see tenuation curve)
Working humidity 20~90% RH, without condense
Storage temp & hmdty -40~+80℃
Temp. coefficient ±0.03%/℃ (0~50℃)
Vibration proof 10~500Hz, 5G 10min / cycle,X,Y,Z axes 60 min each
Safety reg. & EMC Safety regulation GB195110.1-2004/IEC61347-1:2003  CE(EMC+LVD)
Voltage proof I/P-O:1.5KVAC   I/P-FG:1.5KVAC  O/P-FG:0.5KVAC
insulation resistance I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25℃/70% RH
EMC irradiation EN 55015:2006;EN61000-3-2:1995+A2:2005
EMC disturbance proof EN 61000-3-2:2006;
  Dimensions 110*78*35mm(L*W*H)
Packing 0.23kg/PCS;72PCS/17.2kg

40Watt 3.3A Standard 12 Volt LED Power Supply For LED Strip Light

Quality assurance:

40Watt 3.3A Standard 12 Volt LED Power Supply For LED Strip Light

Delivery:
40Watt 3.3A Standard 12 Volt LED Power Supply For LED Strip Light
