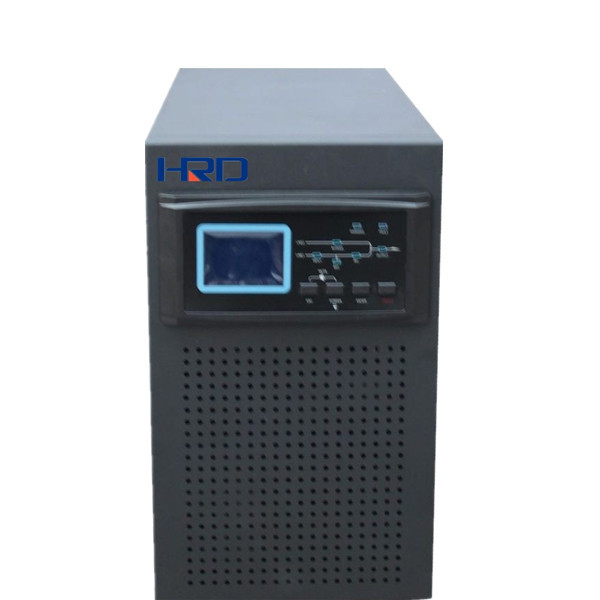

Power Castle Series Online HF UPS 5-6KVA 120Vdc

Power Castle Series Online HF UPS 5-6KVA 120Vdc
Power Castle Series Online HF UPS 5-6KVA 120Vdc Power Castle Series Online HF UPS 5-6KVA 120Vdc Power Castle Series Online HF UPS 5-6KVA 120Vdc

Large Image :  Power Castle Series Online HF UPS 5-6KVA 120Vdc

Product Details:
Place of Origin: Shenzhen China
Brand Name: HRD/OEM
Certification: CE,ISO9001
Model Number: PC05L,PC05S ,PC06L, PC06L
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: 250-600usd
Packaging Details: 1PCS/1CTN
Delivery Time: within 4 weeks after down payment
Payment Terms: TT OR LC
Supply Ability: 100pcs/day
Price Term: Fob shenzhen
Detailed Product Description
High Light:

high frequency ups

,

online uninterruptible power supply

POWER Castle Series Online  HF UPS 5-6 kVA-120Vdc

1.DSP control ,with excellent performance and comprehensive protections for load and UPS ;

2. Output power factor 0.8,offering more stronger load capability;

3.Intelligent fan speed control ,with 4 levels varying according to load and temperature;

4.Wide input range ,support kinds of generator;

5.Compact size and 120Vdc. Less batteries quantity, more economy, safety and easy use;

6. EPO(emergency power off);

7.Event log up to 100 events, recording UPS running time and critical memories ;

8.Intelligent N+X parallel redundancy, up to 6units;

9.AC and cold start function;

10. Human friendly large LCD, with plenty operation information;

11. Frequency convertor mode(input/output 50/60Hz or 60/50Hz);

12. Multiple communication ports  SNMP/AS400(optional);

13. Intelligent DSP charger 20A, battery  inverse proection, 3 stages charging process;

Power Castle Series Online HF UPS 5-6KVA 120Vdc 0

Technical Specification

Model

PCP06S

PCP06L

PCP08S

PCP08L

PCP10S

PCP10L

PCP12S

PCP12L

PCP3110S

PCP3110L

PCP3115L

PCP3120L

Capacity(kVA/kW)

6kVA/5.4kW

8kVA/7.2kW

10kVA/9kW

12kVA/10.8kW

10kVA/ 9kW

15kVA/13.5kW

20kVA/18kW

Input

Phase

1/1phase, 1wire+N+G

3/1phase, 3wires+N+G

Input PF

≥0.999

≥0.96

Input

voltage

Low

transfer

L-N:176 Vac ± 3% @ 100% load;130 Vac ± 3% @ 50% load

Low back

L-N:188 Vac ± 3% @ 100% load,142 Vac ± 3% @ 50% load

High transfer

L-N:286 Vac ± 3%

High back

L-N:270 Vac ± 3%

Input frequency

40-70Hz

Battery

Rating/type

12V/7AH

12V/7AH

12V/9AH

12V/9AH

depend on external battery capacity

quantity

20

20

20

20

Back up

time

Standard model

3-10mins depends on load

Long-run model

depend on external battery capacity

DC voltage

192/240Vdc

Charge voltage

220/275Vdc

Recharging current

Standard model

1A

4A/10A(option)

Long-run model

4A

Output

Output  P.F

0.9

Output voltage

220/230/240Vac +/-1%(static)

Frequency

46~54Hz or 56~64Hz (Line mode)
50/60Hz ± 0.1Hz ( Battery mode)

Crest factor

3:1(max)

Wave distortion

Less than 2% (linear load), Less than 4% Non-linear load

Over load

105% < load < 125% for 1min, 125% < load < 150% for 30s

Efficiency

92%(Line mode)

98%(ECO mode)

Transfer time

0ms (AC-Battery);

0 ms(bypass-inverter)

Indicator

LCD Panel

UPS status, Load level, Load watt, Load va, Battery level, Input/output voltage, output current, Bus voltage, Temp, and warning and fault code and events

Alarm

Battery Mode

Sounding every 4 seconds( can mute)

Low Battery

Sounding every second

Overload

Sounding every second

Fault

Continuously sounding

Management

Smart RS-232/USB

Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC

Optional

SNMP/AS400/USB

Environment

Operation Humidity

0-90 % RH (non-condensing) @ 0- 40°C

Noise Level

Less than 55dBA @ 1 Meter

Less than 58dBA @ 1 Meter

Physical

Model

PCP06S

PCP06L

PCP08S

PCP08L

PCP10S

PCP10L

PCP12S

PCP12L

PCP3110S

PCP3110L

PCP3115L

PCP3120L

Net Weight (kg)

Standard model

62

63

79

80

86

N/A

Long-run model

20

21

29

30

36

49

Gross Weight

(kg)

Standard model

69

70

86

87

93

N/A

Long-run model

22

22

37

38

43

56.5

Unit Dimension

(D*W*H)mm

582×260×572 (including wheel height 642)

600×300×660

(including wheel height 740)

Packing (D*W*H)mm

680*360*810 (0.2CBM)

720*420*920 (0.28CBM)

Note: “S”   refers to “Standard model”,”L” refers to “Long-run model”

All specifi  cations subject to change without further notice; customized specifications are acceptable
