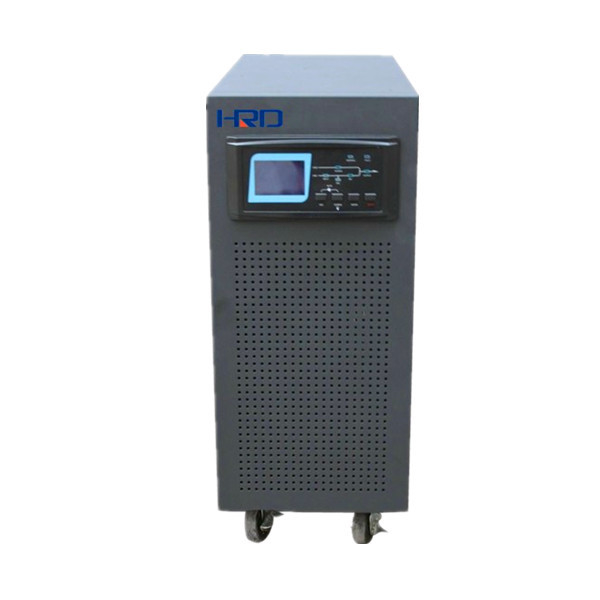

Eco 15kva Online High Frequency Ups Lightning Protection For Computer Room
Quick Detail:
1)Protection:Lightening and Surge protection 1050J
2)Application: Networking,Computer room,Datacenter,server room
3)Rated voltage:110/120/127Vac
Introduction:Power Castle (America) Series Online HF UPS 4-10kva, is DSP controlled updated Online HF UPS,Specially for 110V/120V,127V power grid net.
Perfect Application:
Network, data centre, servers and workstations, office etc.
Main Features:
1)High Frequency and online double conversion
2) Fully digitized control technology, high stability;
3) DC192/240V and Output PF 0.8
4)Large LCD display with abundant information
5) Cold start and AC start
6) Environment protection
7) N+1 redundancy parallel technology (Max.6units)
8) Compact design and low noise
9) Wide input range(Voltage and frequency,40-70Hz)
10) Fan speed varies according to load automatically
11) Lightening and Surge protection 1050J
12) Smart RS232(,USB,SNMP card optional)
13)EPO and Event log function, up to 100events;
|
Model |
PCA04S |
PCA04L |
PCA06S |
PCA06L |
PCA3108L |
PCA3110L |
|
|
Capacity |
4Kva/3.2kw |
6KVA/4.8Kw |
8Kva/6.4Kw |
10Kva/8Kw |
|||
|
Phase |
1 Wire+N+G |
3 Wires+N+G |
|||||
|
Input PF |
Above 0.98 |
Above 0.95 |
|||||
|
THDi |
< 10% |
< 35% |
|||||
|
Input voltage range |
80-150V+/-5 |
155-265V+/-5V |
|||||
|
Input frequency range |
40-70Hz |
||||||
|
Charging voltage |
220/275VDC |
||||||
|
Recharging current |
1A |
3A |
1A |
3A |
3A |
||
|
BATTERY TYPE |
Free Maintenance Lead-Acid battery |
||||||
|
BATTERY CAPACITY |
16/20pcs 12v*7ah |
External battery |
16/20pcs 12v*7ah |
External battery |
External battery |
||
|
Output PF |
0.8 |
||||||
|
Rated voltage |
110/120/127Vac |
||||||
|
Output Frequency |
46~54Hz or 50Hz ± 0.2Hz (Line mode) |
||||||
|
Voltage stability |
Within 1%(static load) |
||||||
|
Crest factor |
3:1 |
||||||
|
Wave distortion |
Linear load <3%,Nonlinear load <5% |
||||||
|
Over load ability |
105%<load<125% for 1 mins ,125%<load<150% for30sec |
||||||
|
Transfer time |
0ms |
||||||
|
AC abnormal |
Alarm every 4 seconds |
||||||
|
Battery low |
Keep alarm every 1 second |
||||||
|
Overload |
Keep alarm every 0.5 second |
||||||
|
Display |
High Definition LED and LCD, clear & friendly display interface |
||||||
|
Efficiency |
above87%(full load) |
||||||
|
Protection |
Output short circuit, Overload, Output low voltage, Battery low voltage, Over-temperature, etc |
||||||
|
communication |
RS232(Standard),USB and SNMP card(optional) |
||||||
|
Working Temp. |
0~40℃ |
||||||
|
Relative humidity |
0~90%( Non-condensing) |
||||||
|
Cooling |
Intelligent speed-control Fan |
||||||
|
Input & output |
Terminals |
||||||
|
Surge protection |
IEC60664—1 Graded protection |
||||||
|
Net Weight (KG) |
22 |
62 |
76 |
29 |
45 |
45 |
|
|
Gross Weight(KG) |
30 |
80 |
88 |
41 |
58 |
58 |
|
|
Unit Dimension (D*W*H)mm |
509*250*530 |
600×300×660 |
600*300*742 |
||||
|
Packing (D*W*H)mm |
650*363*765mm |
680*360*810 |
720*420*920 |
||||
