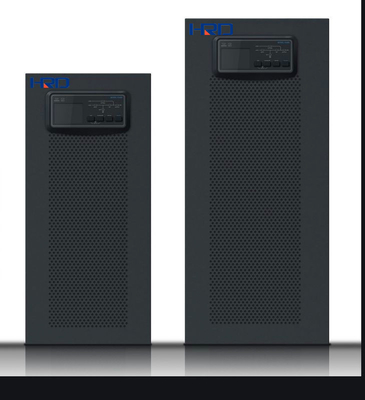

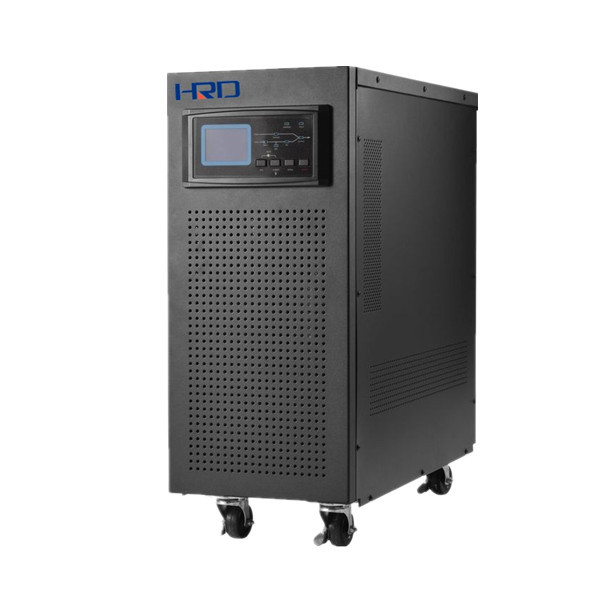

PC PLUS 20kva Online High Frequency Ups With output PF0.9

China PC PLUS 20kva Online High Frequency Ups With output PF0.9 supplier
PC PLUS 20kva Online High Frequency Ups With output PF0.9 supplier PC PLUS 20kva Online High Frequency Ups With output PF0.9 supplier PC PLUS 20kva Online High Frequency Ups With output PF0.9 supplier PC PLUS 20kva Online High Frequency Ups With output PF0.9 supplier PC PLUS 20kva Online High Frequency Ups With output PF0.9 supplier PC PLUS 20kva Online High Frequency Ups With output PF0.9 supplier

Large Image :  PC PLUS 20kva Online High Frequency Ups With output PF0.9

Product Details:

Place of Origin: Shenzhen ,China
Brand Name: HRD brand
Certification: CE , ISO9001, GMCUL
Model Number: PCP06S,PCP06L,PCP10L,PCP1PS,PCP3110,PCP3115,PCP3120

Payment & Shipping Terms:

Minimum Order Quantity: usd20000
Price: usd500-2000usd
Packaging Details: standard packing 1PCS/1CNT
Delivery Time: 15-20DAYS
Payment Terms: TT OR L/C
Supply Ability: 300PCS/WEEK
Price Term: Fob shenzhen
warranty: 18months after shipment , 10years spare parts support
Contact Now
Detailed Product Description



Power Castle 20kva Online High Frequency Ups With Cold Start And DSP



Specification



 1.DSP control ,with excellent performance and comprehensive protections for load and UPS ;

 2. Output power factor 0.9,offering more stronger load capability;

3.Intelligent fan speed control ,with 4 levels varying according to load and temperature;

4.Wide input range ,support any  kind of generator;

5.Dual input AC source supportable

6. EPO(emergency power off);

7.Event log up to 100 events, recording UPS running time and critical memories ;

8. High efficiency (ECO mode)option

9.Intelligent N+X parallel redundancy, up to 6units

10.AC and cold start function;

11. Human friendly large LCD, with plenty operation information

12. Conformal coating PCB for more critical operation environment

13. 3:1phase and single phase easy convertible (10-20Kva)

14. Multiple communication ports (optional)

15. Frequency converter mode (input 50hz,output 60hz OR input 60hz,output 50hz)

16.Most advanced 3 electrical level inverter,for 15-20kva;

17.Very low failure rate and easy repair(MTBF>80000h,MTBR<0.5h)

18. Intelligent 10A charger(optional)



 Technical Specification:

Model

PCP06S

PCP06L

PCP08S

PCP08L

PCP10S

PCP10L

PCP12S

PCP12L

PCP3110S

PCP3110L

PCP3115L

PCP3120L

Capacity(kva/kw)

6kva/5.4kw

8kva/7.2kw

10kva/9kw

12kva/10.8kw

10kva/ 9kw

15kva/13.5kw

20kva/18kw

Input

Phase

1/1phase, 1wire+N+G

3/1phase, 3wires+N+G

Input PF

≥0.999

≥0.96

Input

voltage

Low

transfer

L-N:176 VAC ± 3% @ 100% load;130 VAC ± 3% @ 50% load

Low back

L-N:188 VAC ± 3% @ 100% load,142 VAC ± 3% @ 50% load

High transfer

L-N:286 VAC ± 3%

High back

L-N:270 VAC ± 3%

Input frequency

40-70hz

Battery

Rating/type

12V/7Ah

12V/7Ah

12V/9Ah

12V/9Ah

depend on external battery capacity

quantity

20

20

20

20

Back up

time

Standard model

3-10mins depends on load

Long-run model

depend on external battery capacity

DC voltage

192/240Vdc

Charge voltage

220/275Vdc

Recharging current

Standard model

1A

4A/10A(option)

Long-run model

4A

Output

Output  P.F

0.9

Output voltage

220/230/240Vac +/-1%(static)

Frequency

46~54Hz or 56~64Hz (Line mode)
50/60Hz ± 0.1Hz ( Battery mode)

Crest factor

3:1(max)

Wave distortion

Less than 2% (linear load), Less than 4% Non-linear load

Over load

105% < load < 125% for 1min, 125% < load < 150% for 30s

Efficiency

92%(Line mode)

98%(ECO mode)

Transfer time

0ms (AC-Battery);

0 ms(bypass-inverter)

Indicator

LCD Panel

UPS status, Load level, Load watt, Load va, Battery level, Input/output voltage, output current,

Bus voltage, Temp, and warning and fault code and events

Alarm

Battery Mode

Sounding every 4 seconds( can mute)

Low Battery

Sounding every second

Overload

Sounding every second

Fault

Continuously sounding

Management

Smart RS-232/USB

Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC

Optional

SNMP/AS400/USB

Environment

Operation Humidity

0-90 % RH (non-condensing) @ 0- 40°C

Noise Level

Less than 55dBA @ 1 Meter

Less than 58dBA @ 1 Meter

Physical

Model

PCP06S

PCP06L

PCP08S

PCP08L

PCP10S

PCP10L

PCP12S

PCP12L

PCP3110S

PCP3110L

PCP3115L

PCP3120L

Net Weight (KG)

Standard model

62

63

79

80

86

N/A

Long-run model

20

21

29

30

36

49

Gross Weight

(KG)

Standard model

69

70

86

87

93

N/A

Long-run model

22

22

37

38

43

56.5

Unit Dimension

(D*W*H)mm

582×260×572 (including wheel height 642)

600×300×660

(including wheel height 740)

Packing (D*W*H)mm

680*360*810 (0.2CBM)

720*420*920 (0.28CBM)

Note: “S”   refers to “Standard model”,”L” refers to “Long-run model”

All specifi  cations subject to change without further notice; customized specifications are acceptable
