Product Details:
Payment & Shipping Terms:
|
| High Light: | high frequency ups,online power supply |
||
|---|---|---|---|
Quick Detail:
1)Phase:1/1PHASE, 1wire+N+G
2)Optional:SNMP/AS400/USB
3) Intelligent N+X parallel redundancy, up to 6units;

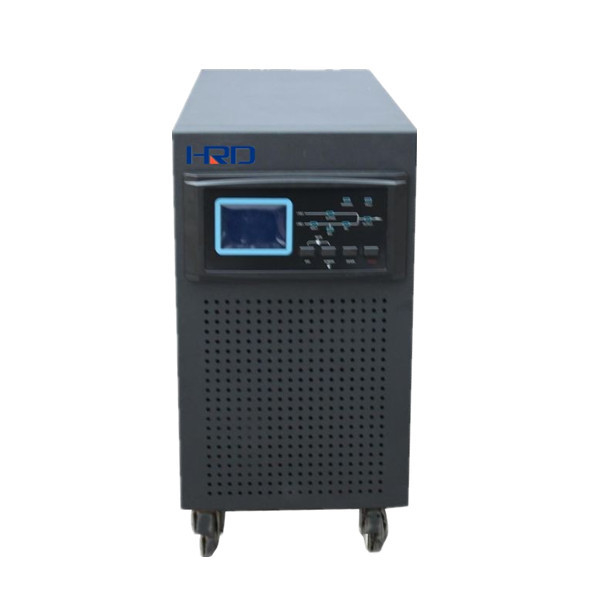

POWER Castle Series Online UPS 5-6 Kva-120Vdc
1.DSP control ,with excellent performance and comprehensive protections for load and UPS ;
2. Output power factor 0.8,offering more stronger load capability;
3.Intelligent fan speed control ,with 4 levels varying according to load and temperature;
4.Wide input range ,support any kinds of generator;
5.Compact size and 120Vdc. Less batteries quantity, more economy, safety and easy use;
6. EPO(emergency power off);
7.Event log up to 100 events, recording UPS running time and critical memories ;
8.Intelligent N+X parallel redundancy, up to 6units;
9.AC and cold start function;

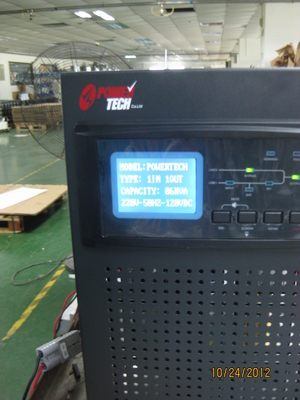

10. Human friendly large LCD, with plenty operation information;
11. Frequency convertor mode;
12. Maintenance bypass (option);
Technical Specification:
|
Model |
PCP06S PCP06L |
PCP08S PCP08L |
PCP10S PCP10L |
PCP12S PCP12L |
PCP3110S PCP3110L |
PCP3115L |
PCP3120L |
|||
|
Capacity(kva/kw) |
6kva/5.4kw |
8kva/7.2kw |
10kva/9kw |
12kva/10.8kw |
10kva/ 9kw |
15kva/13.5kw |
20kva/18kw |
|||
|
Input |
||||||||||
|
Phase |
1/1phase, 1wire+N+G |
3/1phase, 3wires+N+G |
||||||||
|
Input PF |
≥0.999 |
≥0.96 |
||||||||
|
Input voltage |
Low transfer |
L-N:176 VAC ± 3% @ 100% load;130 VAC ± 3% @ 50% load |
||||||||
|
Low back |
L-N:188 VAC ± 3% @ 100% load,142 VAC ± 3% @ 50% load |
|||||||||
|
High transfer |
L-N:286 VAC ± 3% |
|||||||||
|
High back |
L-N:270 VAC ± 3% |
|||||||||
|
Input frequency |
40-70hz |
|||||||||
|
Battery |
||||||||||
|
Rating/type |
12V/7Ah |
12V/7Ah |
12V/9Ah |
12V/9Ah |
depend on external battery capacity |
|||||
|
quantity |
20 |
20 |
20 |
20 |
||||||
|
Back up time |
Standard model |
3-10mins depends on load |
||||||||
|
Long-run model |
depend on external battery capacity |
|||||||||
|
DC voltage |
192/240Vdc |
|||||||||
|
Charge voltage |
220/275Vdc |
|||||||||
|
Recharging current |
Standard model |
1A |
4A/10A(option) |
|||||||
|
Long-run model |
4A |
|||||||||
|
Output |
||||||||||
|
Output P.F |
0.9 |
|||||||||
|
Output voltage |
220/230/240Vac +/-1%(static) |
|||||||||
|
Frequency |
46~54Hz or 56~64Hz (Line mode) |
|||||||||
|
Crest factor |
3:1(max) |
|||||||||
|
Wave distortion |
Less than 2% (linear load), Less than 4% Non-linear load |
|||||||||
|
Over load |
105% < load < 125% for 1min, 125% < load < 150% for 30s |
|||||||||
|
Efficiency |
92%(Line mode) |
|||||||||
|
98%(ECO mode) |
||||||||||
|
Transfer time |
0ms (AC-Battery); |
|||||||||
|
0 ms(bypass-inverter) |
||||||||||
|
Indicator |
||||||||||
|
LCD Panel |
UPS status, Load level, Load watt, Load va, Battery level, Input/output voltage, output current, Bus voltage, Temp, and warning and fault code and events |
|||||||||
|
Alarm |
||||||||||
|
Battery Mode |
Sounding every 4 seconds( can mute) |
|||||||||
|
Low Battery |
Sounding every second |
|||||||||
|
Overload |
Sounding every second |
|||||||||
|
Fault |
Continuously sounding |
|||||||||
|
Management |
||||||||||
|
Smart RS-232/USB |
Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC |
|||||||||
|
Optional |
SNMP/AS400/USB |
|||||||||
|
Environment |
||||||||||
|
Operation Humidity |
0-90 % RH (non-condensing) @ 0- 40°C |
|||||||||
|
Noise Level |
Less than 55dBA @ 1 Meter |
Less than 58dBA @ 1 Meter |
||||||||
|
Physical |
||||||||||
|
Model |
PCP06S PCP06L |
PCP08S PCP08L |
PCP10S PCP10L |
PCP12S PCP12L |
PCP3110S PCP3110L |
PCP3115L |
PCP3120L |
|||
|
Net Weight (KG) |
Standard model |
62 |
63 |
79 |
80 |
86 |
N/A |
|||
|
Long-run model |
20 |
21 |
29 |
30 |
36 |
49 |
||||
|
Gross Weight (KG) |
Standard model |
69 |
70 |
86 |
87 |
93 |
N/A |
|||
|
Long-run model |
22 |
22 |
37 |
38 |
43 |
56.5 |
||||
|
Unit Dimension (D*W*H)mm |
582×260×572 (including wheel height 642) |
600×300×660 (including wheel height 740) |
||||||||
|
Packing (D*W*H)mm |
680*360*810 (0.2CBM) |
720*420*920 (0.28CBM) |
||||||||
Note: “S” refers to “Standard model”,”L” refers to “Long-run model”
All specifications subject to change without further notice; customized specifications are acceptable
Note:All specifications subject to change without further notice; customized specifications are acceptable
