Product Details:
Payment & Shipping Terms:
|
| Product Name: | 2PHASE UPS | Input PF: | ≥0.99 |
|---|---|---|---|
| Input Frequency: | 50/60Hz+/-10% | Input Voltage: | 110-300Vac |
| DC Voltage: | 192/240Vdc Settable | Output PF: | 1.0 |
| Efficency: | 94% @line Mode | Output: | 110/220Vac Or120/240Vac,60Hz |
| Inverter: | 3 Level Inverter | Cahrger: | IBM Charger 1-12A |
| EPO: | Yes | Interface: | RS232+USB |
| SNMP: | Optional | Protection: | Reverse Polarity , Feedback Protections |
| High Light: | high frequency ups,online power supply |
||

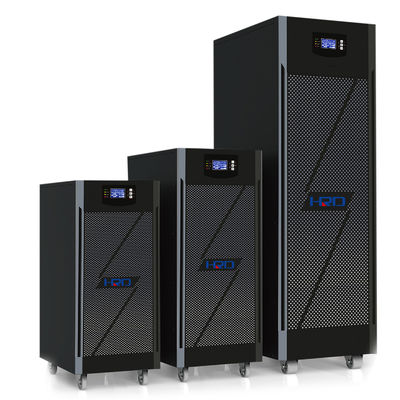

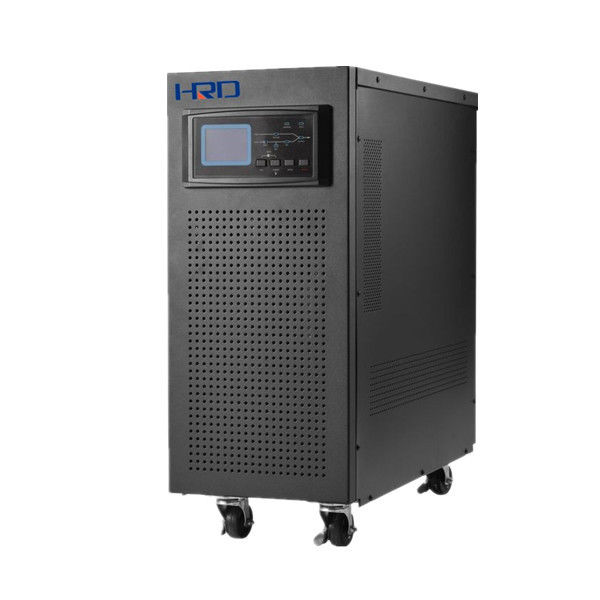

PC MAX TX Split Phase Online UPS 6-10KVA
u Default equipped with battery breaker for safety and convenient operation
Reverse polarity and feedback protections
u Convertible frequency (input 60Hz, output 50Hz, vice versa)
u Manual bypass (optional)
Technical Specification:
| Model | PCM6KL-TX | PCM6KS-TX | PCM10KL-TX | PCM10KS-TX | ||||||
| Capacity(kVA/kW) | 6kVA/6kW | 10kVA/10kW | ||||||||
| Input PF | ≥0.99 | |||||||||
|
Input voltage |
Phase | 2 Lines | ||||||||
| Low transfer | L-L:176 VAC ± 3% @ 100% load;110 VAC ± 3% @ 50% load | |||||||||
| Low back | L-L188 VAC ± 3% @ 100% load,142 VAC ± 3% @ 50% load | |||||||||
| High transfer | L-L 300 VAC ± 3% | |||||||||
| High back | L-L:280 VAC ± 3% | |||||||||
| Input frequency | 50/60Hz+/-10% | |||||||||
| THDi | ≤3%(linear load),≤5%(non-linear load) | |||||||||
| Battery | ||||||||||
| Quantity | 16 ,18 or 20PCS*12Vdc settable | |||||||||
| Back up time |
Standard model : 5-12mins depends on load Long run model:depends on external Battery |
|||||||||
| DC voltage | 192,216 or 240Vdc ,settable | |||||||||
| Charge voltage | 220/248/275Vdc | |||||||||
| Recharging current | 1-12A adjustable | |||||||||
| Output | ||||||||||
| Output P.F | 1.0 | |||||||||
| Output voltage | 104/208Vac,110/220Vac or 120/240Vac +/-1%(settable) | |||||||||
| Frequency | 46~54Hz or 56~64Hz (Line mode) 50/60Hz ± 0.1Hz ( Battery mode) | |||||||||
| Crest factor | 3:1(max) | |||||||||
| Wave distortion | Less than 3%(linear load), Less than 5% Non-linear load | |||||||||
| Over load | 105%<load<125% for 1mins ,125%<load<150% for 30sec | |||||||||
| Efficiency | ≥94%(Line mode) | |||||||||
| ≥93%(battery mode) | ||||||||||
| ≥98%(ECO mode) | ||||||||||
| Transfer time | 0ms (AC-Battery); | |||||||||
| 0 ms(bypass-inverter) | ||||||||||
| Alarms | ||||||||||
| Battery mode | Sounding every 4 seconds( can mute) | |||||||||
| Low battery | Sounding every second | |||||||||
| Overload | Sounding every second | |||||||||
| Faulty | Continuously sounding | |||||||||
| Management | ||||||||||
| Smart RS-232/USB | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC | |||||||||
| Optional | SNMP/AS400 | |||||||||
| Environment | ||||||||||
| Operation Humidity | 0-90 % RH (non-condensing) @ 0- 40°C | |||||||||
| Noise Level | Less than 55dBA @ 1 Meter | Less than 60dBA @ 1 Meter | ||||||||
| Physical | ||||||||||
| Model | PCM6KL-TX | PCM6KS-TX | PCM10KL-TX | PCM10KS-TX | ||||||
| Net Weight (KG) | 54 | 93 | 65 | 112 | ||||||
| Gross Weight(KG) | 59 | 100 | 70 | 119 | ||||||
| UPS (D*W*H)mm | 460*200*360 | 460*200*720 | 460*200*360 | 460*200*720 | ||||||
| Packing (D*W*H)mm | 680*380*834 | 680*380*1074 | 680*380*834 | 680*380*1074 | ||||||
Remark: Specification is subject to change without further notice.
