E-Tech Online High Frequency UPS 1KVA 2KVA 3KVA , Smart Eco UPS

China E-Tech Online High Frequency UPS 1KVA 2KVA 3KVA , Smart Eco UPS supplier
E-Tech Online High Frequency UPS 1KVA 2KVA 3KVA , Smart Eco UPS supplier E-Tech Online High Frequency UPS 1KVA 2KVA 3KVA , Smart Eco UPS supplier

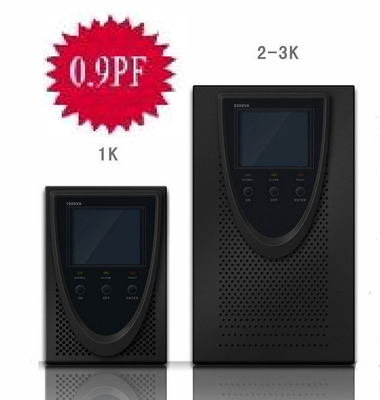

Large Image :  E-Tech Online High Frequency UPS 1KVA 2KVA 3KVA , Smart Eco UPS

Product Details:

Place of Origin: Shenzhen China
Brand Name: HRD
Certification: CE, ISO9001
Model Number: Et01, ET02,ET03

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: Negatiable
Packaging Details: carton box with wooden pallet for export
Delivery Time: within 3-4 weeks after down payment
Payment Terms: TT
Supply Ability: 10000pcs/ month
Warranty: 18months after shipment with 1.5% PCB with consigment
Contact Now
Detailed Product Description
Product Name: Online Power Supply Output Waveform: Pure Sine Wave
Economic Mode(ECO Mode): Support Overload: Sounding Twice Every Second
Interface: Smart RS-232;USB,Dry Contact Board,SNMP(independent To RS232) Phase: 1:1phase ,L+N+G

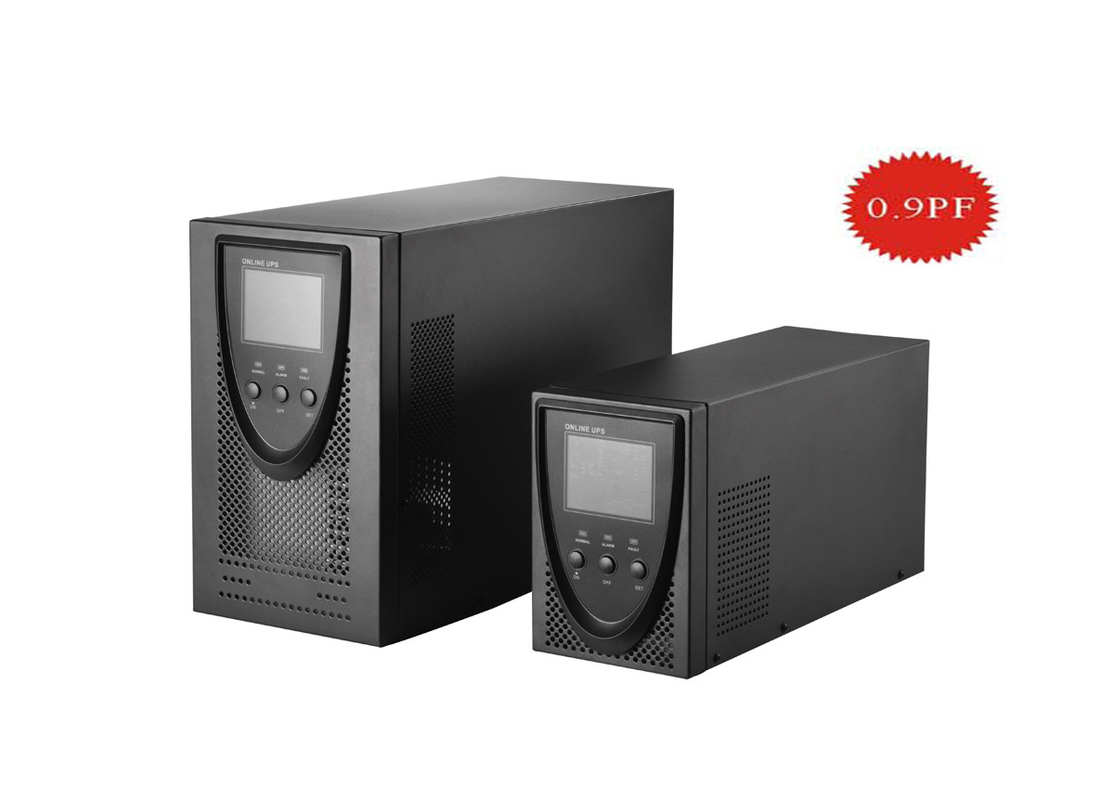

E-Tech Online High Frequency UPS 1KVA 2KVA 3KVA , Smart Eco UPS



Introduction: E-Tech series Online HF UPS 1-5K has adopted highest level DSP controlled UPS. With advanced DSP technology, it’s not only high stable but also with excellent performance.





Perfect Application:



Network, data centre, servers and workstations, control system, communication system and office etc.





Features:



  1. Output power factor 0.9,offering more stronger load capability;
  2. Online double conversion  with DSP control

With excellent performance and comprehensive protections for load and UPS ;

  1. Self-diagnosis when UPS start up
  2. Wide input range, support kinds of generator
  3. Battery configuration flexible,1KVA-24/36V,2Kva-48/72/96V,3Kva-72/96V etc.
  4. Cold start(DC power on)
  5. ECO function,Economic function(Optional)

8. Compact design and less noise

9. Lightening and Surge protection 1050J

10.Fan speed varies according to load automatically

11. Smart RS232 (USB, Dry contact, SNMP card optional)

12.Manual bypass(optional)





Model

ET01

ET02

ET03

ET05



Capacity

Kva/Kw

1Kva/0.9W

2Kva/1.8Kw

3Kva/2.7Kw

5Kva/4.0Kw

















Input





Voltage

Low transfer

L-N:176 VAC ± 3% @ 100% load;130 VAC ± 3% @ 50% load



Low back

L-N:188 VAC ± 3% @ 100% load,142 VAC ± 3% @ 50% load



High transfer

L-N:286 VAC ± 3%



High back

L-N:270 VAC ± 3%



Frequency range

45-55Hz at 50Hz/55-65Hz at 60Hz(auto-detect)



phase

1:1phase ,L+N+G



Current THDI

<6%(100%nonlinear load)



Power Factor

≥0.99



Generate Input

Support



breaker

7A

16A

25A

35A















Output





Voltage

208/220/230/240VAC or 110/120/127(1-3Kva)



Power Factor

0.9 (0.8 optional)

0.8



Voltage regulation

± 2%



Frequency(Line Model)

46-54Hz at 50Hz/56-64Hz at 60Hz



Frequency(Battery Mode)

50/60Hz ± 0.02Hz



Current Crest Ratio

3:1



Harmonic Distortion

≤3% THD(Liner Load)



≤5% THD(Non-Liner Load)



Output waveform

Pure Sine wave



Outlet

Sockets(Optional)

Terminals



Overload Capacity

105%<load<125% for 1 mins ,125%<load<150% for30sec





Efficiency

AC Mode

Full Load≥89%



Battery Mode

Full Load≥86%



ECO Mode

Full Load≥95%













Battery

Number of Battery Per Set

2/3

4/6/8

6/8

8



Battery Type

Sealed, lead-acid, maintenance-free

standard model: 12V/7AH OR9AH inbuilt

long run model: battery external, capacity optional





Back Time

Standard unit:

5-12mins;

Long-run unit:

depends on external battery

Standard unit:

8-18mins;

Long-run unit:

depends on external battery

Standard unit:

5-12mins;

Long-run unit:

depends on external battery

Standard unit:

4-10mins;

Long-run unit:

depends on external battery



Recharge Time(to 90%)

5 Hours

5 Hours

5 Hours

5Hours



Charge Current(standard unit)

1.0A

1.0A

1.0A

1.0A



Charge Current(long run unit)

7.0A

7.0A

7.0A

5.0A



Rated Battery Voltage

24/36vdc

48/72/96vdc

72/96vdc

96vdc



Protect

Over-Voltage/Over-current/Low-voltage



Battery Socket

Anderson like PowerPole Modular Connectors



Transfer Time

Mains←→Battery

0ms



Mains←→Bypass

0ms



Optional Features

Economic Mode(ECO Mode)

Support



Indicator

LCD Version (with LED)

Load/Battery/Input/Output/Operating Mode Information etc.





Audible Alarm

Battery Mode

Sounding every 4 seconds







Low Frequency

Sounding every second



Overload

Sounding twice every second



Fault

Continuously Sounding









Physical

Unit Dimension

(D*W *H)mm

420*144*215

475*191*340

475*191*340

475*213*340 (L)



510*213*427 (S)



Packing Dimension

(D*W *H)mm

524*258*334

603*332*482

603*332*482

603*332*482(L)



650*363*572(S)



Standard Unit

Net /GrossWeight(kg)

12/13

30/32

30/32

40/42



Long-run unit

Net /GrossWeight(kg)

7/8

15/17

15/17

18/20



Operating Environment

0-40°C



Relative Humidity

0-90%(non-condensing)



Altitude

<1500m.when>1500m,derating



Noise Level

<55db at 1 Meter





Interface

Smart RS-232;USB,Dry contact board,SNMP(independent to RS232)





*.
