Large Power 3phase Online 500-800kVA, output PF0.9, with output isolation transformer

China Large Power 3phase Online    500-800kVA, output PF0.9, with output isolation transformer supplier

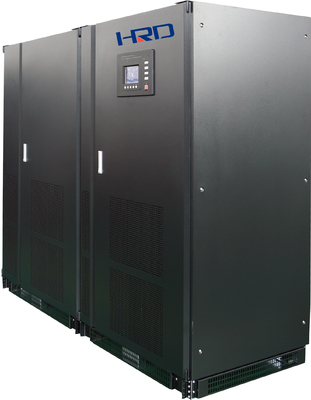

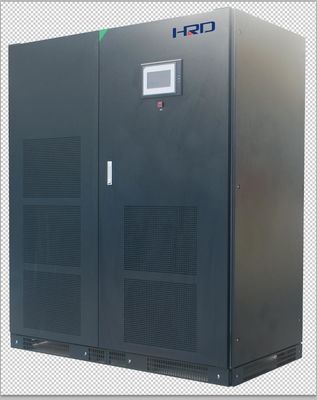

Large Image :  Large Power 3phase Online 500-800kVA, output PF0.9, with output isolation transformer

Product Details:

Place of Origin: Shenzhen China
Brand Name: HRD or OEM
Certification: CE, ISO9001:2008
Model Number: PEII33500, PEII33600,PEII33800

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD 60000USD-800000USD/PCS
Packaging Details: Wooden case for standard export
Delivery Time: 4 weeks after down payment
Contact Now
Detailed Product Description
Color: Black Powergrid: 380/400/415Vac
Capacity: 500-800kVA Application: Large Data Centre, Industry Use
Output PF: 0.9 Rectifier: SCR Rectifier ,12pulse

Large Power Uninterruptible Power Supplies 500-800kva With Output Isolation Transformer



PE II series is a high-end design large capacity UPS up to 800kVA,with double conversion topology. With more than 20nos innovative patents, its distinguished features are :Stable, Smart, Simple, energy Saving.

This high-end UPS is not only environment friendly but also with high efficiency and high reliability, providing the lowest TCO (Total Cost of Ownership) for users.



Fully digital controlled, armed with several DSP, MCU, CPLD, it can parallel up to 8 units for redundancy or expanding capacity.

Super reliability and excellent performance based on innovational solution,it definitely ensures your business away from any power problem!



MAIN FEATURES:

  • World Leading technology
  • Advanced SCR rectifier and IGBT inverter control technology, true online double conversion topology, with output isolation transformer
  • Super wide input voltage/frequency range, adapt to harsh utility environments.
  • Soft start with time settable 6-100seconds settable , to be more compatible with generator.
  • Output power factor 0.9(1.0 optional), higher overload capacity and output short-tolerant capability
  • Intelligent self diagnosis, mass memory(1000 events) to record operation log.
  • Super long MTBF≧200000 hours, and short MTTR.
  • Intelligent parallel up to 8 units and parallel ECO Mode.
  • Most advanced intelligent digital equal current parallel technology,,self-load share algorithm, parallel up to 8 units.
  • Single Mode ECO and parallel ECO available
  • Independent cooling system, multi-protection design, ensures high reliability even under harsh environments.
  • Output short-tolerant ability, maximize protect load even under abnormal conditions.
  • ABM battery management, EOD of battery settable,self diagnose technology, extend battery life.
  • Frequency convertor mode



  • Super Reliability
  • Fully DSP control with double most advanced DSP processor, super reliability.
  • Redundant SPS,fan etc. design, enhance system reliability.
  • Build-in output isolation transformer, eliminate neutral to ground drifting voltage, and isolate load harmonic current influence to inverter.
  • More than 90% components are from world world-famous brands,
  • Conformal-coating PCB and fixed in sealed box to keep away from outside environment effect

3.Abundant options

  • Build-in various communication connectors (RS232, RS485, AS400, EPO etc).
  • Large Power 3phase Online    500-800kVA, output PF0.9, with output isolation transformerOptional cards available: SNMP, battery management kit, lighting proof module, dust proof filter etc.



  • Easy Operation
  • Front side maintenance, top or bottom wiring connection, with protective equipment.

Friendly human machine interface, easy operation with large LCD panel and keyboards.



Perfect Application:



Large Datacenters, Server rooms, Finance,Telecommunications, Insurance, Education, Government, Large stadium,  Theater, Harbor, Traffic facilities, Production industrial areas etc.



FEATURES:

1.Leading technology

  1. Advanced SCR rectifier and IGBT inverter control technology, true online double conversion topology, three phase in three phase out, 380/400/415V, 50/60Hz compatible.
  2. Super wide input voltage/frequency range, adapt to harsh utility environments.
  3. Higher overload capacity and output short-tolerant ability.
  4. Input power factor up to 0.95 with input filter options, input THDi<4.5%.
  5. Output power factor 0.9, brings 12.5% more power than traditional UPS.
  6. Intelligent self diagnosis, mass memory to record operation log.
  7. Super long MTBF and short MTTR.
  8. Intelligent parallel and parallel ECO Mode.



2.Reliability

  1. Fully digital control with the most advanced DSP processor, higher system reliability.
  2. Redundant fan design, enhance system reliability.
  3. Build-in output isolation transformer, eliminate neutral to ground drifting voltage, and isolate load harmonic current influence to inverter.
  4. More than 90% components are from world well-known tier 1 suppliers, 100% IQC inspected. All final products will pass internal test procedure and 24 Hours burn-in before delivery, increase the system reliability.

3.Abundant options

  1. Build-in various communication connectors (RS232, RS485, AS400, EPO etc).
  2. Optional cards available: SNMP, battery management kit, lighting proof module, dust proof filter etc.Large Power 3phase Online    500-800kVA, output PF0.9, with output isolation transformer



4.Operation

  1. Front side maintenance, top or bottom wiring connection, with protection equipments.
  2. Friendly human machine interface, easy operation with large LCD panel and keyboards.



Technical features:

  • Multi DSP,CPLD,MCU digital control, higher consistency and reliability.
  • Output power factor 0.9, delivers 12.5% more power than tradition 0.8 UPS.
  • Wide input voltage/frequency range, adapt to harsh utility power.
  • Non master/slaver digital intelligent parallel control, self-load share algorithm, parallel up to 8 units.
  • Single Mode ECO and parallel ECO
  • Super overload capacity and output short-tolerant ability, maximize protect load even under abnormal conditions.
  • Advanced intelligent battery management, self diagnose technology, extend battery life.
  • Redundant control power, increase even higher system reliability.
  • Independent cooling system, multi-protection design, ensures high reliability even under harsh environments.
  • 6-inch LCD display, friendly interface, easy to operate.
  • Environment friendly green UPS, with various harmonic restrain technology.
  • Double conversion online topology, with output isolation transformer, all-round protect load from utility or generator problems.

Specification:

Capacity

500kVA/450kW

600kVA/540kW

800kVA/720kW

12P

12P

12P



Input

Wiring connection

Three phase + Ground

Nominal Voltage

380/400/415Vac

Voltage frequency

285Vac~498Vac

Frequency

50/60 Hz

Frequency range

45-65 Hz

Soft start

5-600 sec settable

Power factor

0.95 (with input filter)



Bypass

Nominal voltage

380/400/415Vac (Three phase + Neutral + Ground)

Frequency

50/60Hz±10%

Voltage range

±10%, ±15%, ±20% settable



Output

Nominal voltage

380/400/415Vac (Three phase + Neutral + Ground)

Voltage regulation

±1% (balance load), ±2% (100% unbalance load)

Power factor

0.9

Dynamic response

±5% (0~100% load transient)

Distortion

<1% (100% linear load), <3% (100% non-linear load)

Transient response

<5ms

Sync. range

±2Hz (±0.5~±3Hz settable)

Overload

105% continue,110% 1Hr,125% 10min,150% 1min

Frequency

±0.5%

Waveform

Pure sine wave



Efficiency

Inverter mode

Up to 94%

ECO mode

98%



Parallel

N+X

Max. 8 units



Battery

Configuration

12V,40 pieces default(38~42pieces settable)



Display

LCD+LED



Physical

Dimension

(mm)

Depth

855

Width

2700

3000

3800

Height

1900

Weight(KG)

3000

3500

4100



Environment

Temperature

0~40℃

Humidity

0~95% non-condensing

Noise (1 m)

71dB

73dB

76dB



Connective

RS-232/(USB option)

Support windows2000/XP/7/Linux/Unix/Mac

SNMP

Support remote control through web browser



Standard

Safety

IEC60950-1,IEC62040-1-1

EMC

IEC62040-2,IEC62040-3



Note: Without other notice if product parameters changed.

Can be customized according to customer require
