Energy Meter Test Power Source With Three Phase Power Output And High Accuracy

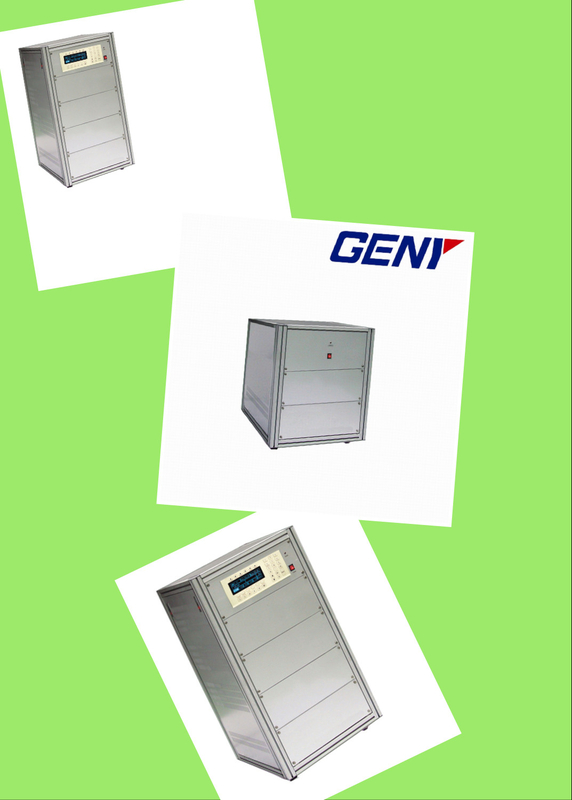

Large Image : Energy Meter Test Power Source With Three Phase Power Output And High Accuracy

Product Details:

Place of Origin:	China
Brand Name:	GENY
Certification:	ISO 9001
Model Number:	YCS-series

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	plywood case
Delivery Time:	30 days
Supply Ability:	45 sets/month

Contact Now

Detailed Product Description

Current Distortion Factor:	< 0.3%	Voltage Distortion Factor:	< 0.3%
Current Output:	1mA~120A	Voltage Output:	30V~500V
Size:	600mm X 1150mm X 650mm	Output Power Capacity:	3 X 400VA(Max 3 X 1000VA)
Highlight:	Stationary Power

Energy Meter Test Power Source With Three Phase Power Output And High Accuracy

Description:

Aluminum alloy materials, light and strong, prevent corrosion High accuracy and high stability output
2nd – 21st harmonic, output amplitude and degree can be programmed.
With keyboard for manual operation (optional).
With RS232 interface for automatic operation
It’s easy for operation by PC control suit.
With the protect function of overload, short voltage circuit and open current circuit.
Detection Objections are 1P2W,3P3W,3P4W active and reactive energy meter test equipment

Applications:

Nation-level utility companies
Governmental bureaus of metrology
Big energy meter manufacturers

Primary Competitive Advantages:

High power output (max. voltage power: 1000VA, current power: 1500VA)
High quality product
Distortion factor less than 0.3% for linear resistance load
Extremely high power stability
Professional after-sale service with 12 months guarantee

Specifications:

	YCS-103-250	YCS-103-600	YCS-103-1200	YCS-103-2500
Voltage
Test voltage output (Phase-Neutral)	3×(24V – 288V) or customized
Power of the voltage output	3×100VA	3×250VA	3×500VA	3×1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2^nd – 21^st free programmable
Current
Test current output	3×(1mA – 100A)
Power of the current output	3×150VA	3×350VA	3×750VA	3×1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2^nd – 21^st free programmable
Phase angle
Range	0 -- 360°
Resolution	0.01°
Setting accuracy	0.1°
Frequency
Range	45Hz – 65Hz
Resolution	0.01Hz

Voltage Supply	3×220/380V±10% or customized 50/60Hz±2Hz
Ambient temperature	-10°C -- +40°C
Relative humidity	35% -- 85%
